Siemens Reversible combination

Price in EUR including VAT
Ratings
BrandMore from Siemens
Delivered between Thu, 11.6. and Fri, 12.6.
Only 2 pieces in stock at third-party supplier
Supplied by
free shipping

Electric current output3

Product details

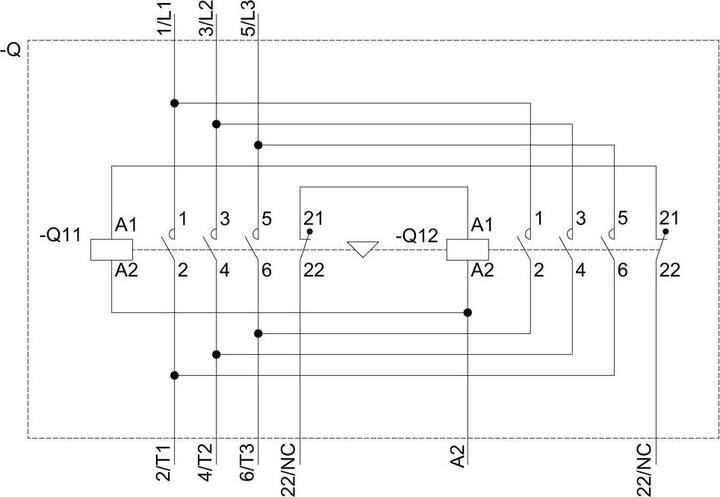

The Siemens reversing combination is a highly developed solution for motor control that allows for a change in rotation direction. This product, the SIRIUS 3RA23, consists of two equivalent contactors from the 3RT2 series, which are pre-assembled and pre-wired at the factory. The combination offers both electrical and mechanical locking, enhancing safety and reliability in operation. With a maximum switching capacity of 5.5 kW at 400 V and an output current of 12 A, it is suitable for various applications. The reversing combination is climate-resistant and meets international approvals, including IEC and UL/CSA. It is available in different sizes and can be mounted on DIN rails or through screw fastening. The accessories are standardized and can be used for all sizes, increasing flexibility and efficiency during installation.

  • Factory pre-assembled and wired for easy installation
  • Mechanical and electrical locking for enhanced safety
  • Climate-resistant and globally approved, e.g., IEC and UL/CSA
  • Standardized accessories for all sizes, flexible to use.

Key specifications

input voltage
230 V
Output voltage
400 V
Electric current output
12 A
Output current type
AC
Number of poles
3x

General information

Item number
20025467
Manufacturer
Siemens
Category
Relays
Manufacturer No.
3RA2317-8XB30-1AP0
Release date
16.3.2022
External links
Manufacturer's site (de)

Relay properties

input voltage
230 V
Output voltage
400 V
Electric current output
12 A
Output current type
AC
Switching function
Normally open
Number of openers
0x
Number of closers
3x
Number of poles
3x
Number of switching cycles
10000000x
Max. Switching capacity
5.50 kW

Origin

Country of origin
China

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

CO₂ emissions
0,82 kg
Climate contribution
EUR 0,12

Scope of delivery

Scope of delivery
Reversible combination

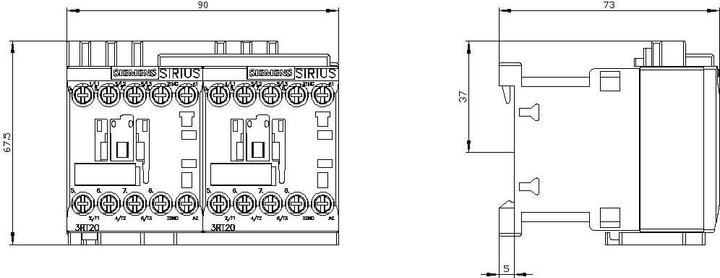

Product dimensions

Width
90 mm
Height
68 mm
