Number of positions: 2
Actuation type: Short handle
Contact arrangement: Switching contact
Protection class: IP20, IP66, IP67, IP69, IP69K
Switching angle: 90°
Max. current: 10 A
Series: SIRIUS ACT
Cut-out diameter: 22.3 mm
Housing material: Metal, plastic
Connection type: Screw mounting
Max. AC voltage: 500 V
Max. DC voltage: 500 V
Switch actuation: Latching

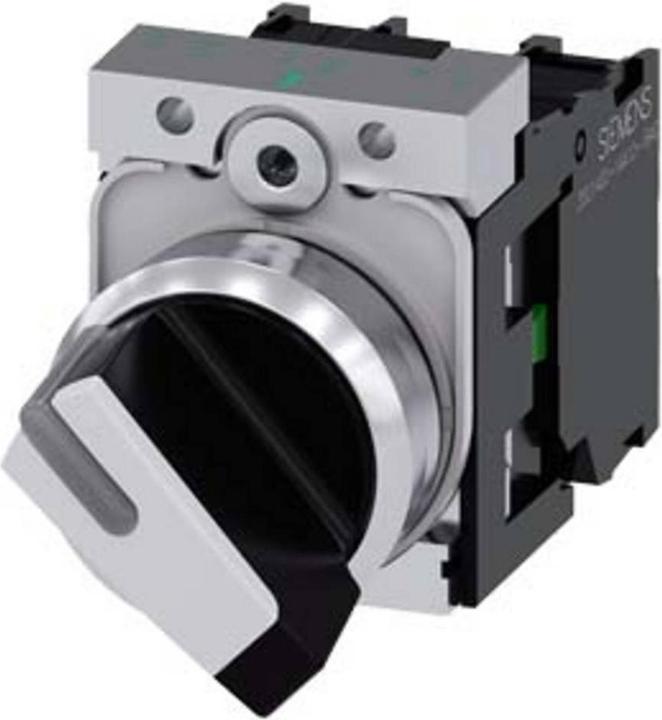

IEC 60947-1, EN 60947-1, IEC 60947-5-1, EN 60947-5-1 complete selector switches, 22 mm, metal (glossy). Extremely robust IP69K complete devices from Siemens with a glossy metal switch. These new models feature a permanently installed electrical module secured by the holder. Easy installation, suitable for use in extreme environments. No special tools required. Simple geometry for mounting holes. Compatible with the most common communication systems (PROFINET, AS-Interface, IO-Link).
