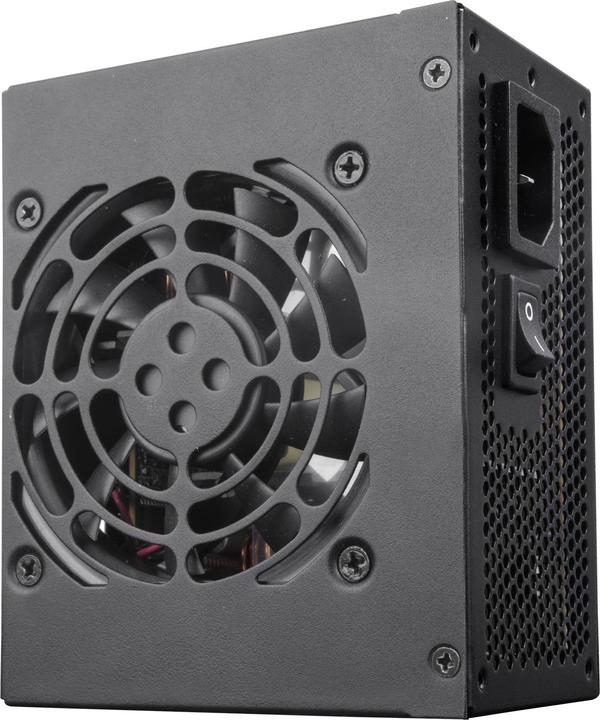

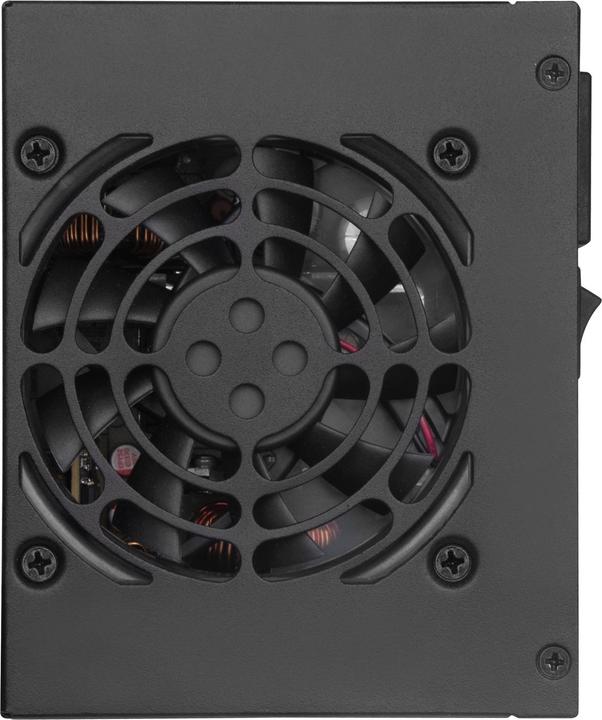

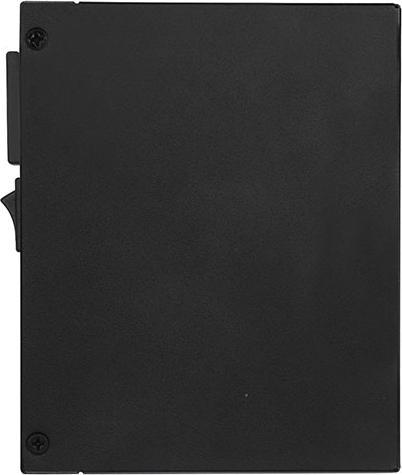

Thanks to the SFX format, the SilverStone SST-SX450-B is primarily designed for mini cases (mostly in Mini-ITX format) and offers high performance in minimal dimensions. It comes with a quiet 80-millimeter fan with an optimized fan curve. This makes the SST-SX450-B a great solution for nearly all users who want to combine high performance with low noise.

The power on the 12-volt rail, which is crucial for graphics cards, delivers a full 450 watts (37.5 amps), providing ample power. With overload protection, undervoltage protection, overcurrent protection, overvoltage protection, and short-circuit protection, essential safety features are included. Instead of a split 12V rail, this version features a very robust single rail, making it suitable even for multi-GPU systems.

In total, there are two PCIe 6+2-pin connectors available. Additionally, there are a 20+4-pin, a 4+4-pin, three SATA, two 4-pin Molex, and one floppy connector for the motherboard and peripherals. The SST-SX450-B also excels in efficiency, achieving an efficiency rating of up to 85 percent, which is why it has been awarded an 80 PLUS Bronze certification.

Technical specifications:

• Dimensions: 125 x 63.5 x 100 mm (WxHxD)
• Fan: 80 mm (min. 18 dB(A))
• Form factor: SFX
• Mean time between failures: 100,000 h
• Efficiency: 80 PLUS Bronze
• Power: 450 watts

+3.3V: 20 A
+5V: 20 A
3.3+5V: 120 W
+12V: 37.5 A (450 W)

• 12V: 0.3 A

+5Vsb: 2.5 A

• Connectors:

1x 20+4-pin (300 mm)
1x 4+4-pin (ATX12V/EPS12V, 400 mm)
2x 6+2-pin PCIe (400 + 150 mm)
3x SATA (300 + 200 + 100 mm)
2x 4-pin Molex (300 + 200 mm)
1x Floppy (100 mm)

• Protection circuits: OCP, OVP, SCP, OPP, UVP.
