Connect two demanding DV I/O cards to computers with Thunderbolt 4 or Thunderbolt 3 ports. For creative professionals in the audio and video broadcasting industries, using the latest high-performance notebooks, compact desktops, and all-in-one computers requires multiple I/O ports. While these Mac, Windows, and Linux computers include high-performance Thunderbolt 4 or Thunderbolt 3 ports, they lack PCIe expansion slots to install specialty cards with dedicated bandwidth to each card.

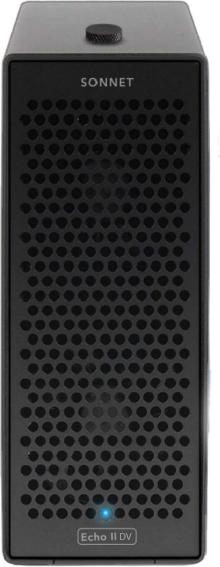

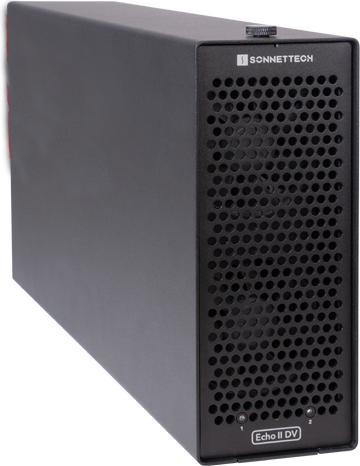

Make your broadcast studio with the Echo II DV Desktop. Computers such as Mac Studio and other M series Mac computers feature powerful Thunderbolt/USB4 ports, each individually driven by their own dedicated Thunderbolt bus. To harness this dedicated power, Sonnet has a creative solution — the Echo II DV Desktop — a professional Thunderbolt to PCIe card expansion system that enables you to connect two (up to) full-length (12.28 inches long) PCIe cards at the same time, via two cables. The Echo II DV Module exploits your computer’s full potential, connecting two PCIe 3.0 card slots — each with its own Thunderbolt interface — for you to install two bandwidth-hungry DV I/O cards in one enclosure.

Note: For maximum performance with more than one bandwidth-hungry PCIe card, such as the DeckLink 8K, this product requires connection to two Thunderbolt ports on the computer.

When your computer has only one Thunderbolt port, you can still use the Echo II DV Desktop. Because each PCIe card slot is supported by its own Thunderbolt interface with two Thunderbolt ports, you can take advantage of Thunderbolt’s daisy-chaining feature. Simply connect one Thunderbolt interface to the other using one of the two supplied Thunderbolt cables, and use the other cable to connect to the computer.
