Pressure display minimum: 1 bar
Pressure display maximum: 10 bar
Output type: Relay
Medium: Air, fuel oil, hydraulic fluid, turpentine
Process connection: G1/4
Connection: Flat plug
Supply voltage: 42 V
Housing material: Galvanized steel
Protection class: IP65
Series: 01664

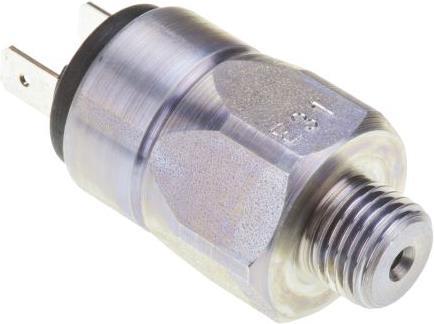

UL approval, CSA. Although compressed air is generally considered a relatively harmless energy source, it should always be handled with care and never misused. Normally open contacts. Pressure switch type 0166, G1/4. High quality robust design for commercial and industrial applications, for a range of adjustable pressure settings. 100 VA rated current contacts, up to a maximum of 42 V. Protection class: IP65 with protective cap.
