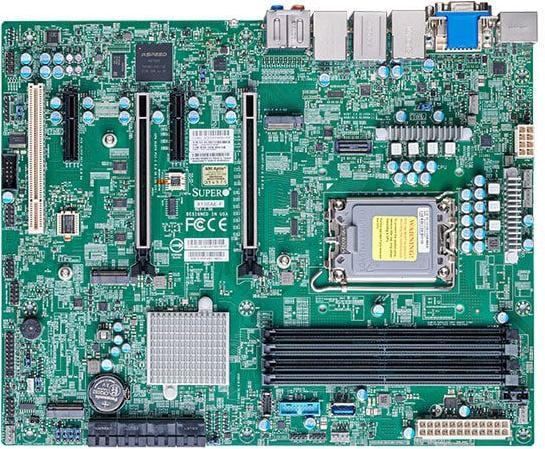

Supermicro X13SAE-F
LGA 1700, Intel W680, ATXFree shipping starting at 30,–
The Supermicro X13SAE-F is a powerful ATX motherboard designed for the latest Intel Core series processors. It supports the LGA 1700 socket and is equipped with the Intel W680 chipset, ensuring high compatibility and performance. The motherboard accommodates up to 128 GB of DDR5 RAM and features four DIMM slots that support both ECC and non-ECC memory. A variety of interfaces, including multiple USB ports, HDMI, and DisplayPort, allow for flexible connectivity. Additionally, the X13SAE-F offers advanced networking options with 2.5 Gigabit Ethernet, ensuring fast data transfers. This motherboard is ideal for applications requiring high computing power and reliability, making it suitable for both server and desktop applications.
Processor family | Core i5 13th Gen, Core i9 13th Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | S-ATA III (8x), TPM Header, USB 2.0 Header (2x), USB 3.0 Header (1x) |
Mainboard features | Error Correcting Code, Trusted Platform Module |
Item number | 31466862 |
Manufacturer | Supermicro |
Category | Motherboards |
Manufacturer no. | MBD-X13SAE-F-B |
Release date | 7.4.2022 |
Form factor | ATX |
Socket | LGA 1700 |
Chipset | Intel W680 |
Mainboard features | Error Correcting Code, Trusted Platform Module |
BIOS type | Ami |
Processor family | Core i5 13th Gen, Core i9 13th Gen |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR5 SDRAM |
Supported memory speed | 4000 MHz, 4400 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort (1x), DVI-D (1x), HDMI (1x), VGA (1x) |
Network connections | RJ45 Gigabit Ethernet (3x) |
Ethernet controller brand | Intel |
Ethernet controller | Intel I219-LM |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC888S |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | S-ATA III (8x), TPM Header, USB 2.0 Header (2x), USB 3.0 Header (1x) |
USB ports | USB-C |
Exact USB ports | USB-A 2.0 (4x), USB-A 3.2 Gen 1 (3x), USB-C 3.2 Gen 2x2 (2x) |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | I/O backplane |
Length | 243.80 mm |
Width | 304.80 mm |
Length | 34.50 cm |
Width | 25.70 cm |
Height | 11.50 cm |
Weight | 948 g |
