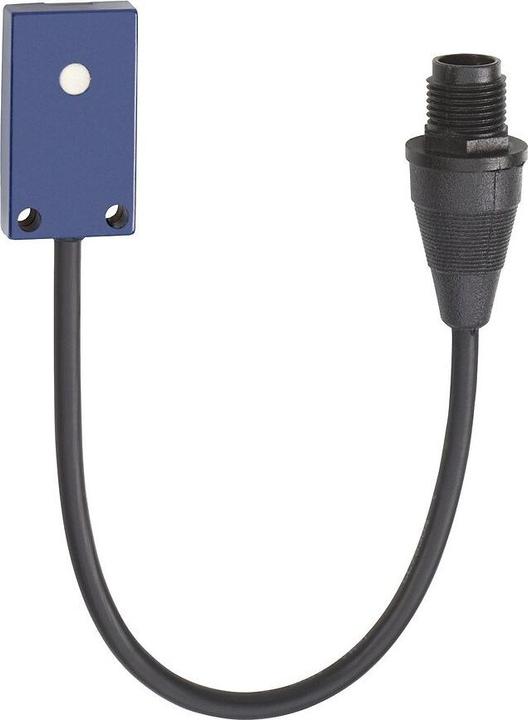

Telemechanique Sensors Ultrasonic Sensor XX7F1A2PAL01M12

Manufacturer: Telemechanique Sensors
Designation: Flat ultrasonic sensor
Type: XX7F1A2PAL01M12
Analog output type: Other
Electrical connection type: M12 connector
Switch output type: PNP
Switch function type: Normally open (NO)
Dead zone: 6.4 mm
Sensor width: 7.6 mm
Sensor height: 19 mm
Sensor length: 33 mm
Sensor diameter: 0 mm
Adjustable distance: 6.2..102 mm
Adjustment method: Other
Measurement range length: 6.2..102 mm
Protection class (IP): IP67
Explosion protection category for gas: None
Explosion protection category for dust: None
Housing design: Rectangular
Interface standard: Other
No-load current: 25 mA
Relative linearity deviation: 0 %
Max. output current: 100 mA
Ambient temperature: -20..65 °C
Supply voltage: 12..24 V
Relative repeat accuracy: 0.7 %
Switching frequency: 100 Hz
Voltage type: DC
Synchronization possible: No
Material of the active area of the sensor: Plastic
Material of the housing: Plastic
Material of the cable sheath: Other

Telemechanique Sensors Ultrasonic Sensor XX7F1A2PAL01M12: additional details OsiSense XX – adjustable ultrasonic sensors with transistor output. Ultrasonic sensor, rectangular shape. Dimensions 7.6 x 19 x 33 mm, connection M12 plug, output NO, function PNP, switching distance 0.1 m, protection class IP 67. Adjustable ultrasonic sensors, switching distance adjustable by button press, with LED display, transistor output. Housing made of plastic, cylindrical, rectangular housing as well as combined housing. Protection class IP 67 (except XX630A1 with protection class IP 65). Operating voltage 12-24 V DC. Connection via M12 plug, 4-pole or cable. Moving parts ensure a long service life of the devices.
