Quantity discount

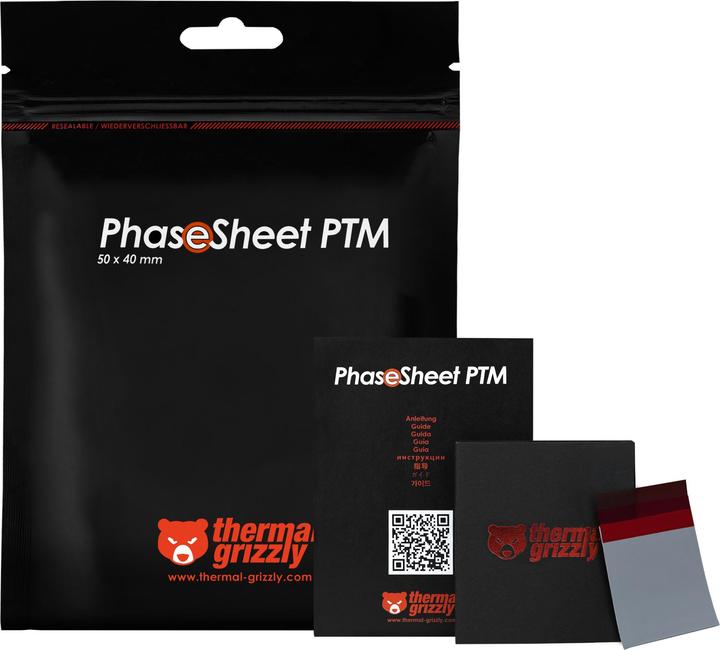

Thermal Grizzly PhaseSheet PTM - 50x40mm

0.20 mm
Price in EUR including VAT
Save EUR1,60
Delivered Tue, 2.12.
Only 3 pieces in stock
Free shipping starting at 30,–

Product details

The phase-change material on which the PhaseSheet PTM is based is solid at room temperature. The material only begins to liquefy at temperatures above 45 degrees Celsius. A high contact pressure of around 300-400N is required for optimum distribution of the liquid PhaseSheet PTM and thus the lowest possible layer thickness. PhaseSheet PTM has a very low viscosity in its liquid state and contracts again when it changes to a solid material. This minimises the pump-out effect. The pump-out effect is particularly pronounced when combining a copper cooler on a graphics chip because silicon and copper have different linear expansion when heated. The temperatures under load cause the heat spreader and the base plate to deform (concave or convex) and return to their original shape (straight) during cooling. As a result, the thermally conductive paste is slowly pressed out between the heatspreader and the base plate of the CPU cooler, for example. PhaseSheet PTM is more durable than traditional thermal pastes, but not as durable as KryoSheet, for example, which is virtually maintenance-free. The maximum thermal conductivity of PhaseSheet PTM develops and stabilises after around ten heat cycles above 60 degrees Celsius. Brief information Outstanding thermal conductivity Consistently high performance Very long service life Versatile in use Non-electrically conductive Easy to use Scope of delivery 1x PhaseSheet PTM.

Key specifications

Length
40 mm
Width
50 mm
Thickness
0.20 mm
Electrical conductivity
Non-conductive (0 S/m)
Max. temperature
150 °C
Item number
47416856

General information

Manufacturer
Thermal Grizzly
Category
Thermal pads
Product Safety
Release date
27.6.2025
Sales rank in Category Thermal pads
2 of 157

Colour

Colour
Grey

Material

Material
Phase change material (PCM)

Thermal grease properties

Thermal paste type
Heat conducting pad
Max. temperature
150 °C
Electrical conductivity
Non-conductive (0 S/m)

Scope of delivery

Items per sales unit
1 x

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
40 mm
Width
50 mm
Thickness
0.20 mm
Weight
2 g

Package dimensions

Length
20.60 cm
Width
14.70 cm
Height
3.50 cm
Weight
22 g
