Thermalright HR-02 Plus
180 mmMore than 10 pieces in stock at supplier
Product details

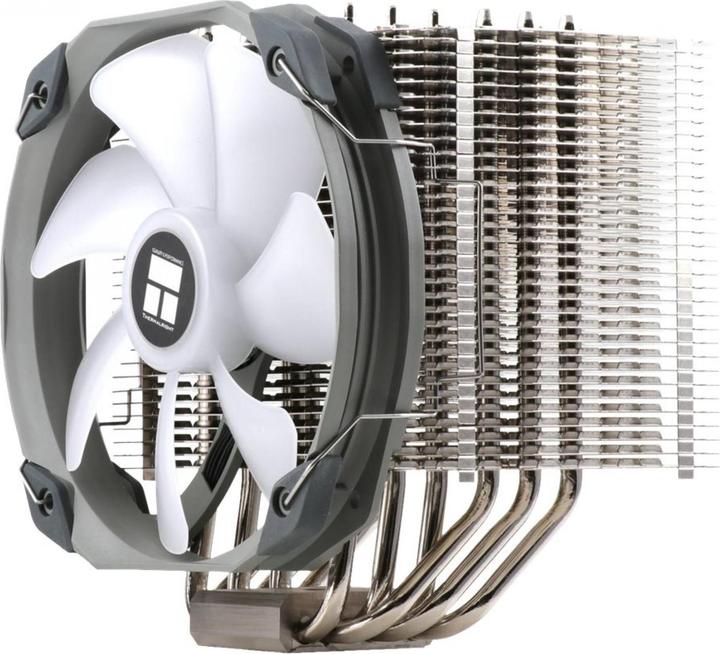

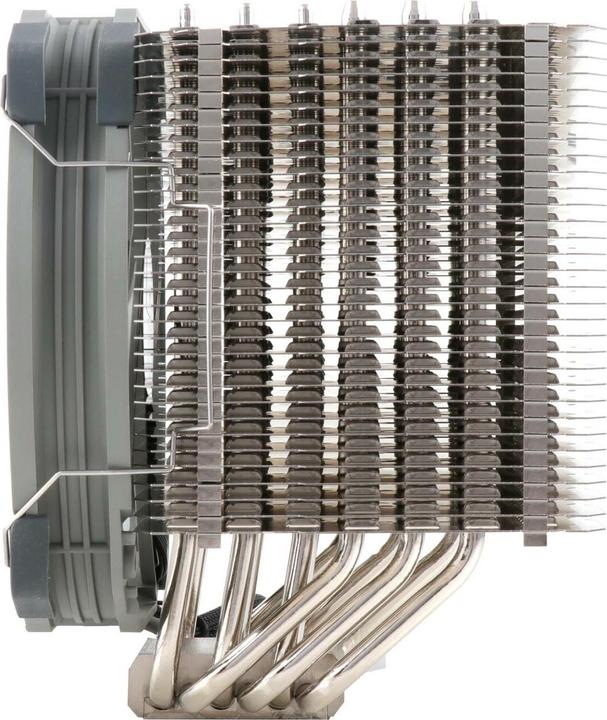

The Thermalright HR-02 Plus is a powerful CPU cooler designed for a variety of processor sockets, including Intel LGA 2066, 2011, 1200, 115x, and AMD AM4. With a nickel-plated copper base and aluminum fins, this cooler provides effective heat dissipation for stable performance. The integrated 140mm ARGB PWM fan allows for precise control of fan speed and delivers optimal airflow of up to 77.8 CFM, while the noise level at maximum speed of 1500 RPM is only 25.6 dBA. The six heat pipes with a diameter of 6 mm contribute to efficient heat transfer and support a TDP of up to 240 W. The HR-02 Plus is therefore an excellent choice for users seeking powerful cooling for their CPU.
- Compatible with a variety of sockets, including LGA 1156, 1155, 2011, 1200, and AM4
- Nickel-plated copper base with aluminum fins for improved heat dissipation
- PWM support for dynamic fan speed control
- Six heat pipes (6 mm) for efficient heat transfer
- ARGB fan for customizable lighting effects.
Socket | AM4, AM5, LGA 1150, LGA 1151, LGA 1155, LGA 1156, LGA 2011-v3, LGA 2066 |
Height (with fan) | 180 mm |
Diameter | 140 mm |
Number of fans | 1 x |
Max. TDP | 200 W |
Airflow | 132.18 m³/h |
power connector | 4-pin |
Item number | 23483593 |
Manufacturer | Thermalright |
Category | CPU coolers |
Manufacturer no. | Thermalright |
Release date | 23.4.2021 |
Colour | Silver, White |
Exact colour description | Silver, White |
CPU cooler design | Passive cooler |
Fan type | Watercooled |
Socket | AM4, AM5, LGA 1150, LGA 1151, LGA 1155, LGA 1156, LGA 2011-v3, LGA 2066 |
Supported fan sizes | 140mm |
Number of heatpipes | 6 |
Diameter heat pipe | 6 mm |
Number of cooling fins | 32 |
Materials radiator core | Copper |
Material cooling fins | Aluminium |
Diameter | 140 mm |
Number of fans | 1 x |
Maximum mountable fan | 1 |
Max. Speed | 1500 RPM |
Max. TDP | 200 W |
Airflow | 132.18 m³/h |
Max. noise level | 25.60 dB |
LED colour | RGB |
Fan bearing type | Fluid Dynamic bearing |
power connector | 4-pin |
Power consumption | 200 W |
Scope of delivery | 1 piece |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Width (with fan) | 210 mm |
Length (with fan) | 220 mm |
Height (with fan) | 180 mm |
Weight | 760 g |
