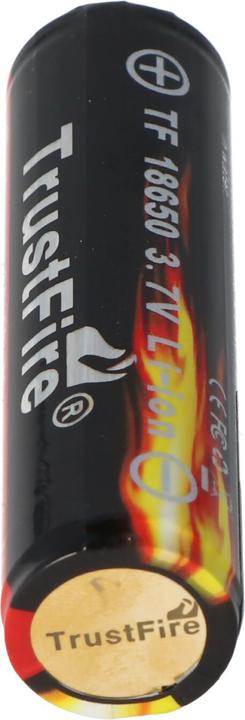

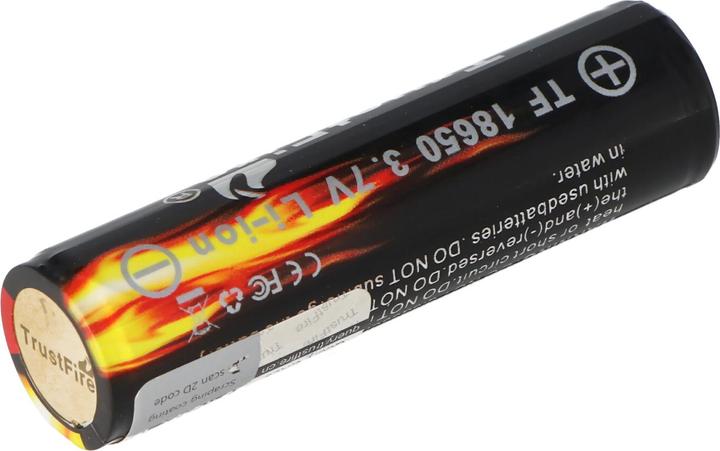

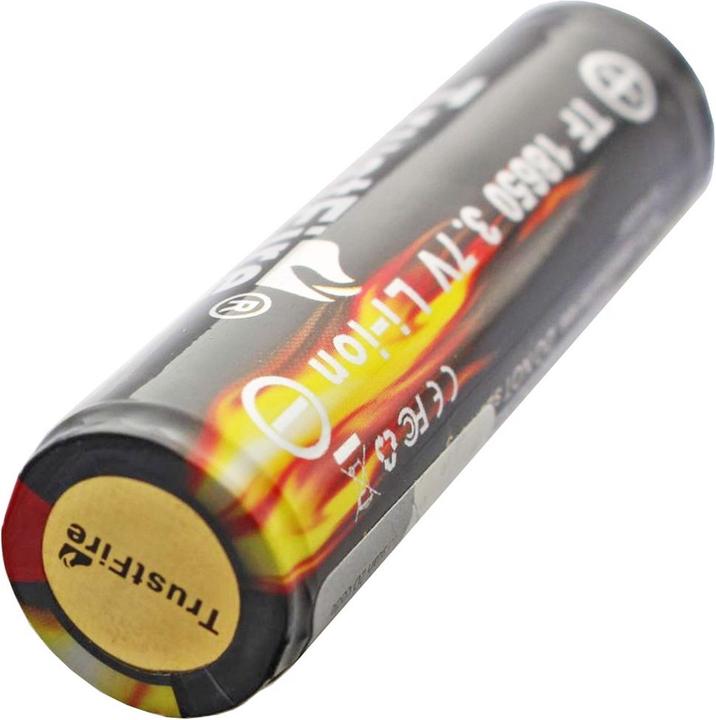

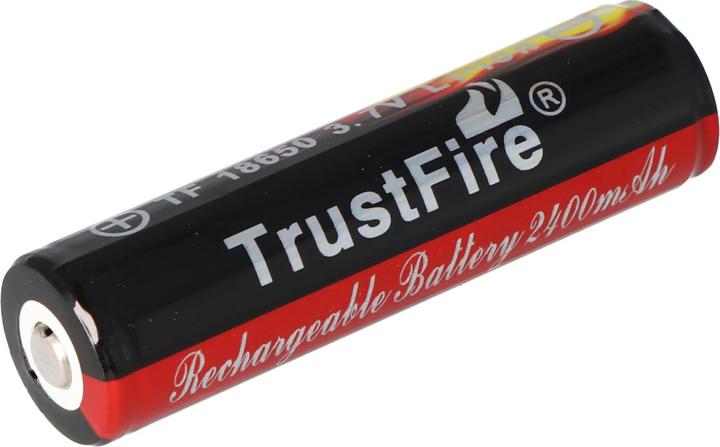

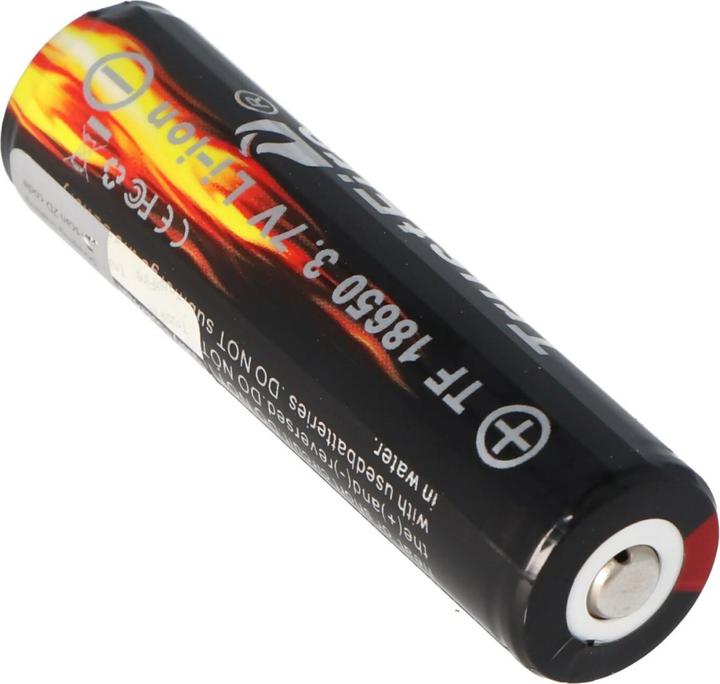

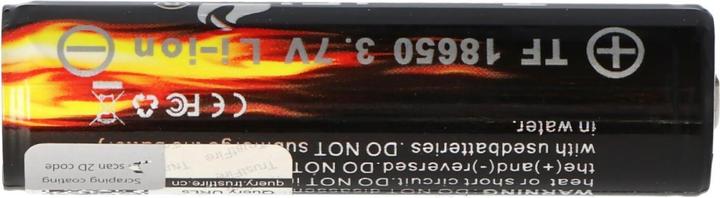

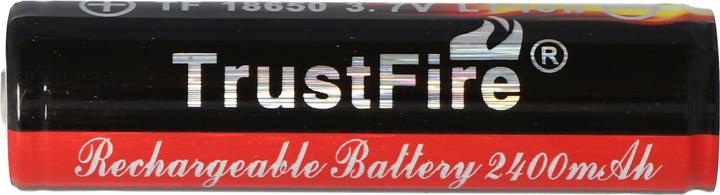

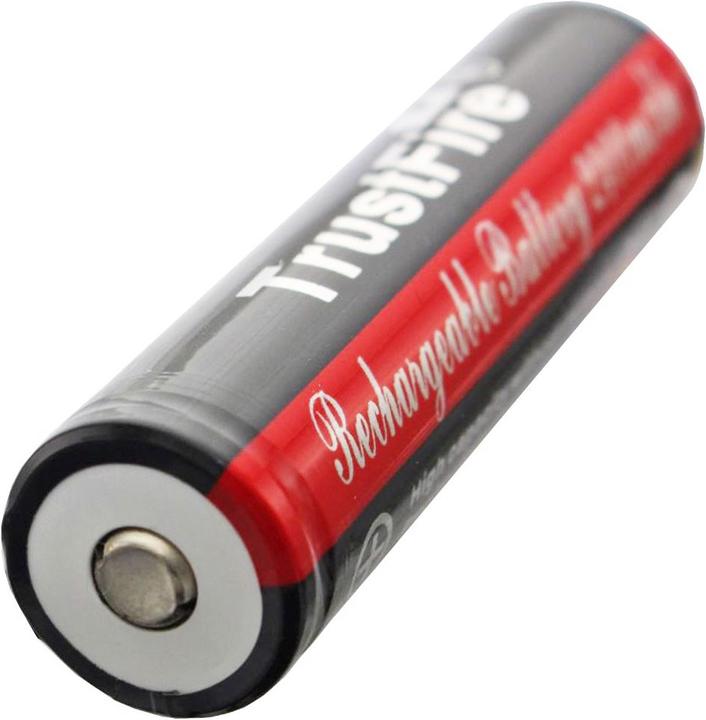

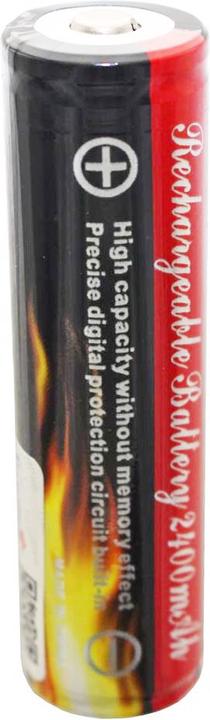

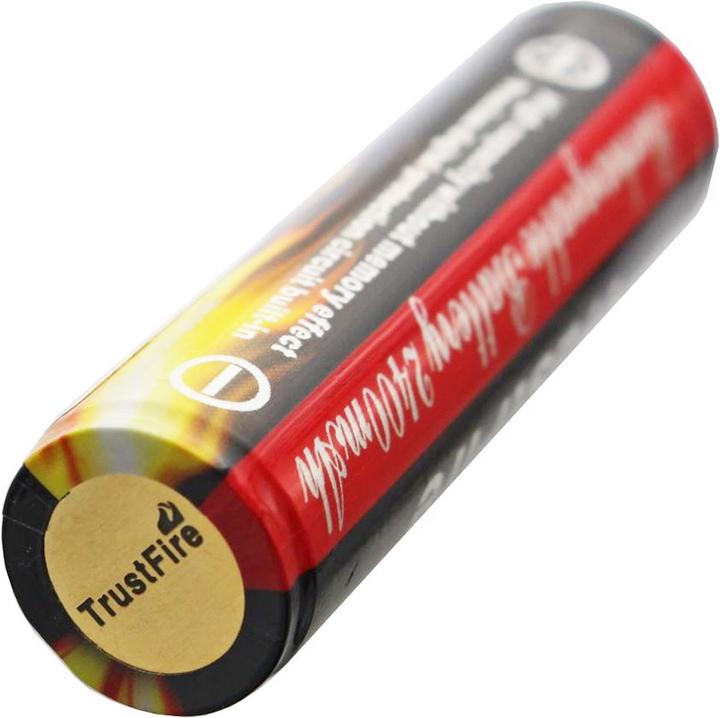

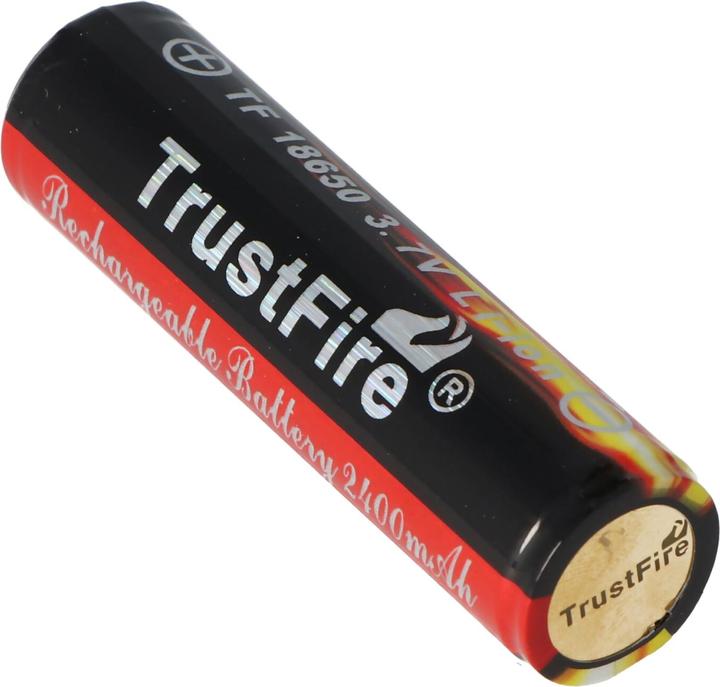

Electronically protected against over-voltage, under-voltage, short circuit, and reverse polarity. Applications: flashlights and LEDs. Please note the dimensions of 68.5 x 18.3 mm. Trustfire 18650 2400mAh 3.7V protected Li-ion battery with integrated PCB protection. Please check the cell dimensions before purchasing! Due to the built-in electronics, the cell is not suitable for every application. Height and diameter are larger than those of a standard 18650 cell without PCB.

Capacity: 2400mAh
Minimum measured capacity: 2050mAh at 0.5A
Nominal voltage: 3.7V
Charge termination voltage: 4.23V ± 0.05V
Discharge termination voltage: 2.50V
Protection: Integrated PCB

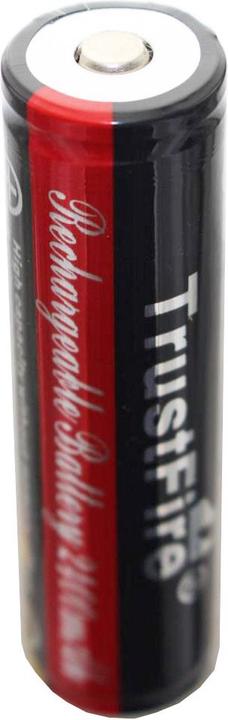

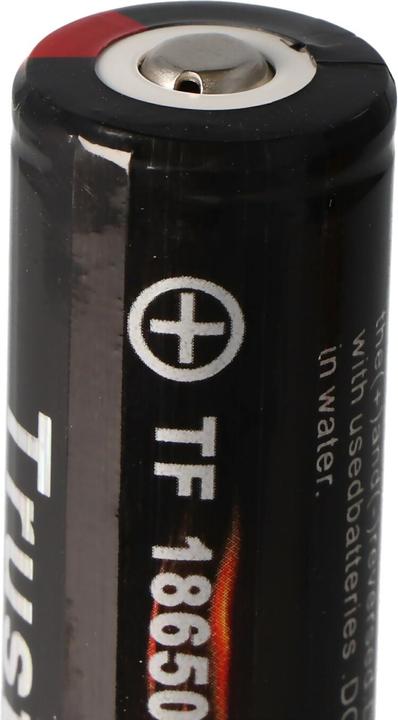

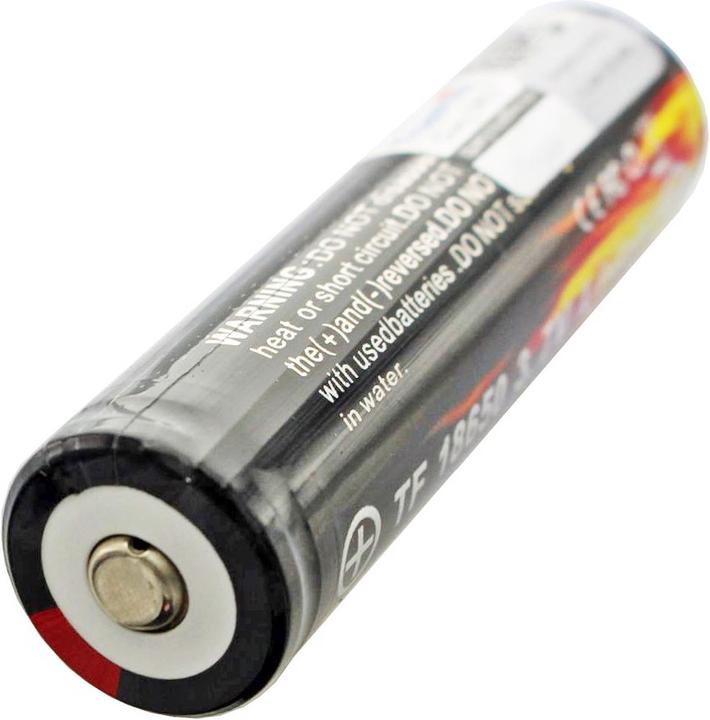

Positive terminal: Raised (Button Top)
Chemistry: LiNiCoAlO2
Diameter: 18.30 mm ± 0.20 mm
Height: 68.50 mm ± 0.20 mm
Weight: 48 g
Charging method: CC-CV

Safety notes: Lithium cells should only be operated with protective electronics! Please note that lithium cells may only be used by qualified personnel. Improper handling or short circuits can lead to fire or explosion.

Additional features: Lithium-ion batteries are thermally stable and do not suffer from memory effect. They operate based on lithium and are characterized by high energy density.

Notes: Charging lithium-ion batteries requires a special charger that charges the batteries according to a specific charging method (CCCV = constant current, constant voltage). Batteries should not be charged above a voltage of 4.2 volts, as this poses a risk of fire and explosion. It is advantageous to charge the batteries only up to about 4.1 volts, as this significantly increases their lifespan and the number of charge cycles (potentially doubling it). Only lithium-ion chargers should be used for charging.
