Product details

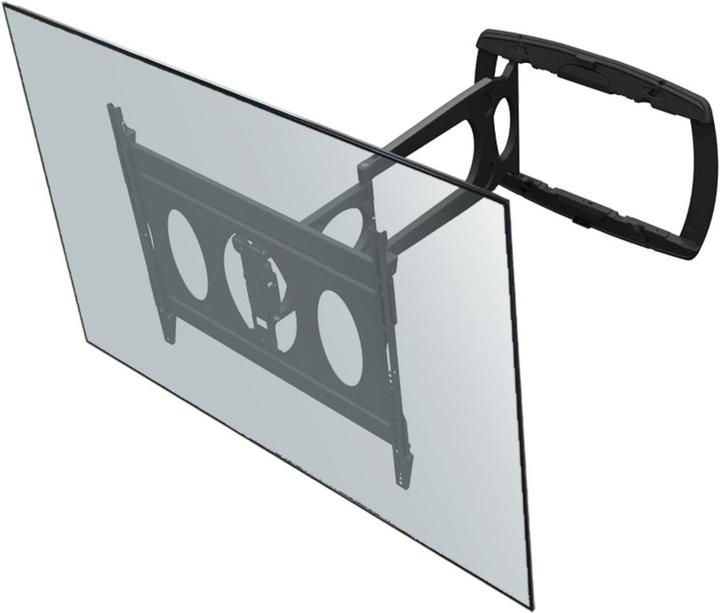

The PFW 6850 is an ultra slim wall mount for displays up to 45kg / 100 lbs. that provides three options for the swing arm placement, allowing the mount to swing out from the left, right or center, based on the installation requirements.
The swing-out arm extends 76 cm from the wall and provides 15° of downward tilt to achieve the desired viewing angle from virtually anywhere in a room. The lightweight aluminium mount retracts smoothly and easily to a very thin 3,8 cm from the wall. To keep power and cables protected when pulling or pushing the display, cable management channels are built into the arm.
VESA wall mount | 100 x 100 mm, 200 x 200 mm, 300 x 300 mm, 400 x 400 mm, 500 x 500 mm, 600 x 500 mm |
TV Wall Mount Features | Horizontally pivotable |
Max. screen diagonal (inch) | 65" |
Max. Wall distance | 3.80 cm |
Installation place | Wall |
Max. load | 45 kg |
Number of monitors | 1 |
Documents | |
Item number | 6571695 |
Manufacturer | Vogels |
Category | TV mounting solutions (universal) |
Manufacturer no. | 73201901 |
Release date | 19.9.2017 |
Colour | Black |
Exact colour description | Black |
Material group | Metal |
Material | Iron |
Installation place | Wall |
TV Wall Mount Features | Horizontally pivotable |
VESA wall mount | 100 x 100 mm, 200 x 200 mm, 300 x 300 mm, 400 x 400 mm, 500 x 500 mm, 600 x 500 mm |
Max. screen diagonal (inch) | 65" |
Min. screen diagonal (inch) | 42" |
Max. Screen diagonal (cm) | 165 cm |
Min. screen diagonal (cm) | 106 cm |
Max. load | 45 kg |
Max. Wall distance | 3.80 cm |
Min. wall distance | 3.80 cm |
Number of monitors | 1 |
Angle of inclination range | 0° - 15° |
Angle of rotation range | 180° |
Country of origin | Taiwan |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 piece |
Length | 38 mm |
Width | 668 mm |
Height | 543 mm |
Depth | 495 mm |
Weight | 13480 g |
Length | 78 cm |
Width | 48 cm |
Height | 10 cm |
Weight | 14.48 kg |
