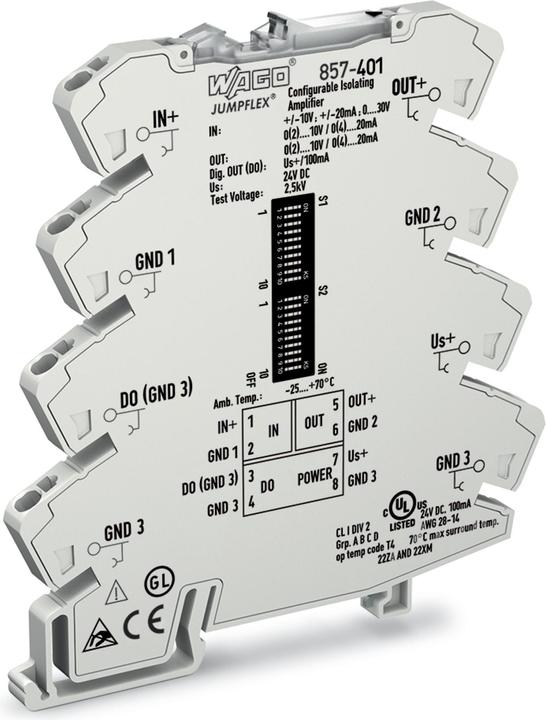

WAGO GmbH & Co. KG Isolation Amplifier 857-401

Manufacturer: WAGO GmbH & Co. KG
Designation: Configurable Isolation Amplifier
Type: 857-401
Power Supply Type: Other
Rated Supply Voltage for DC: 16.8..31.2 V
Number of Input Ranges -10 V ... +10 V: 1
Number of Input Ranges -20 V ... +20 V: 1
Number of Input Ranges 0 V ... 30 V: 1
Number of Output Ranges 0 V ... 5 V: 1
Number of Output Ranges 0 V ... 10 V: 1
Number of Output Ranges 1 V ... 5 V: 1
Number of Output Ranges 2 V ... 10 V: 1
Number of Output Ranges 0 mA ... 10 mA: 1
Number of Output Ranges 0 mA ... 20 mA: 1
Number of Output Ranges 4 mA ... 20 mA: 1
Number of Channels: 1
Fault Signal Output: Yes
Intrinsic Safety according to EN 60947-5-6 NAMUR: No
Galvanic Isolation between Inputs: Yes
Galvanic Isolation between Input and Output: Yes
Galvanic Isolation between Outputs: No
Galvanic Isolation between Supply Voltage and all other Circuits: Yes

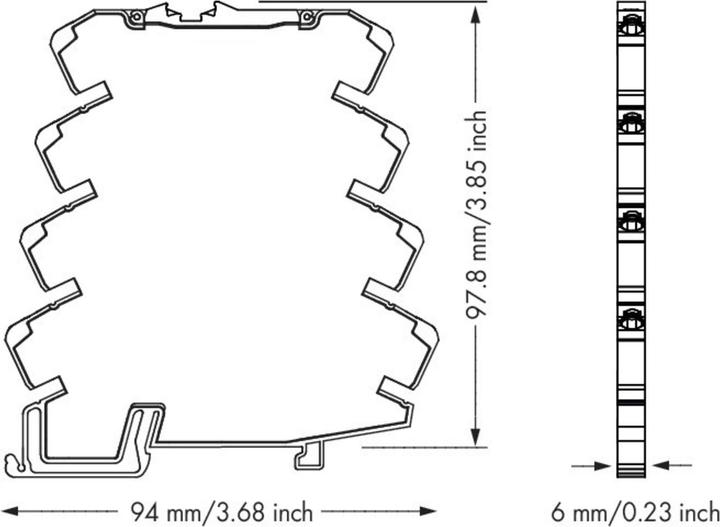

Height: 96 mm
Width: 6 mm
Depth: 94 mm
Load: 600..2000 Ohm
Operating Temperature: -25..70 °C
Temperature Drift: 0.01 %/K
Device Design: Other
Electrical Connection Type: Spring Clamp Connection
Mounting Type: Snap Mounting
Mounting Rail
Protection Class (IP): IP20

WAGO GmbH & Co. KG Isolation Amplifier 857-401: Additional Details
Isolation Amplifier for Current and Voltage Input Signal
Current and Voltage Output Signal
Digital Output
Supply Voltage DC 24 V
6 mm Width
2.50 mm².
