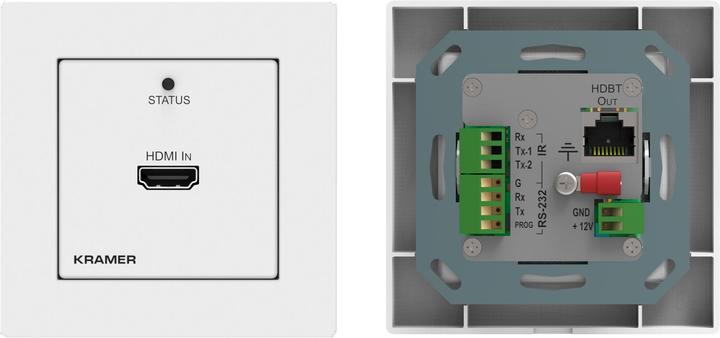

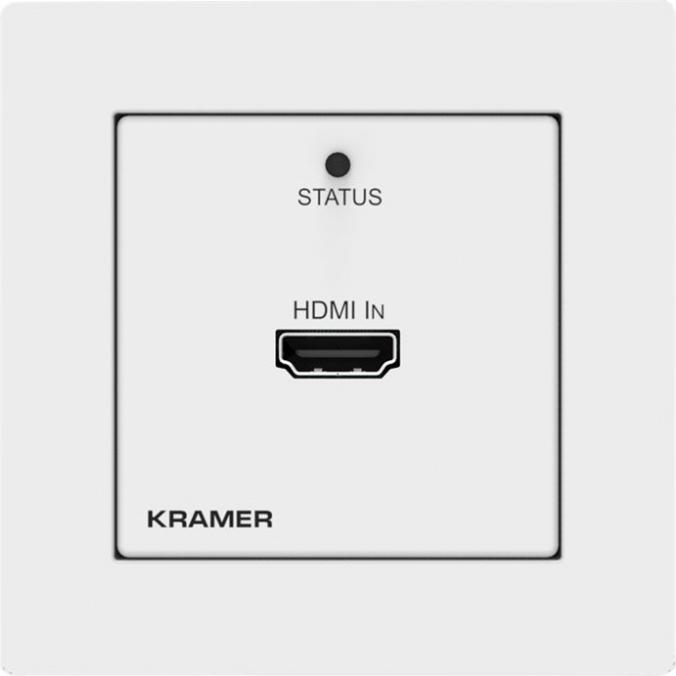

WP-789T is a high-performance, long-reach HDBaseT wall-plate transmitter for 4K@60Hz (4:2:0) HDMI and HDCP 2.2 signals over twisted pair. It converts the HDMI input signal into an HDBaseT signal and transmits it to a compatible receiver. It extends video signals up to 40m (130ft) over Kramer copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions. This wall-plate is powered through PoE (Power over Ethernet) over the twisted pair cable.

• High performance transmitter: Professional HDBaseT transmitter for providing long-reach signals over twisted pair copper infrastructures. WP-789T is a standard extender that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.
• Reliable PoE (Power over Ethernet) powering: Auto-senses the extension line PoE status and accepts power from a remote PoE provider such as a PoE matrix, with optional mains powering from a connected power adapter.
• HDMI signal extension: HDCP 1.4 and 2.2 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0.
• EDID pass-through: Pass-through algorithm ensures plug and play operation for HDMI source and display systems.
• Multi-channel audio extension: Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.
• Cost-effective maintenance: Power and connectivity status LED indicator facilitates easy local maintenance and troubleshooting.

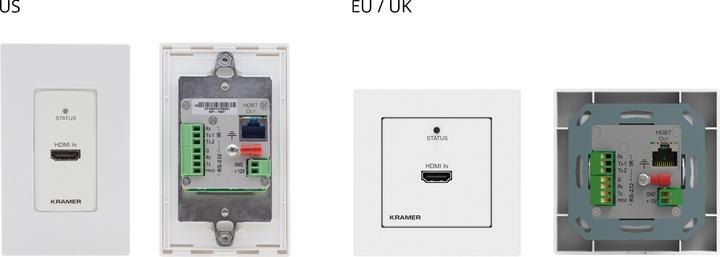

• Easy installation: Compactly fits into standard US, EU, and UK 1-gang in-wall box size, supporting decorative integration with room deployed user interfaces such as electrical switches. Wall-plate installation is fast and cost-effective via a single twisted pair cable, providing both video signal and power (PoE) connections.
