Best selling Cables + Plugs from Harting
On this page you’ll find a ranking of the best Cables + Plugs from Harting. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Harting Han Density
The Han Density Module 09140363001 from Harting is a highly advanced crimp module designed for a wide range of applications in electrical connection technology. With 36 power contacts, it offers a high density of connections, making it ideal for compact and powerful systems. The module is made from high-quality thermoplastic, ensuring reliable performance under extreme conditions, with an operating temperature range of -40 to 125 °C. The rated voltage of 32 V and the rated current of 4 A make it a robust choice for industrial applications. The contact design in the form of pins allows for easy and secure connections, while the crimp connection provides flexible and reliable installation. The module is designed for at least 500 mating cycles, highlighting its durability and reliability.
- High-density connection with 36 power contacts
- Operating temperature range of -40 to 125 °C
- Rated current of 4 A and rated voltage of 32 V
- Robust crimp connection design for easy installation
- At least 500 mating cycles for high durability.
2. Harting Locking bracket
The Harting locking bracket 09000005229 is a high-quality accessory specifically designed for use with electronic cables and connectors. Made from durable polycarbonate and stainless steel, this locking bracket provides a reliable and long-lasting solution for securing connections. With a size of 16 B and a length of 16 millimeters, it is ideal for various applications in electronics. The dust gray color (RAL 7037) allows for discreet integration into existing systems. The locking bracket is easy to install and ensures a secure connection that meets the demands of modern electronics. It is an essential accessory for professionals who value quality and reliability.
- Made from durable polycarbonate and stainless steel
- Size 16 B for versatile applications
- Easy installation for secure connections
- Color RAL 7037 (dust gray) for discreet integration.
3. Harting Einsatz
Harting connector insert crimp connection 09161072101
Manufacturer: Harting
Description: Connector insert crimp socket polycarbonate
Type: 09161072101
Number of power contacts: 107
Contact insert without contacts: no
Contact design: Socket
Number of poles: 107
Material of connector insert: Thermoplastic
Rated current: 10 A
Operating temperature: -40 to 125 °C
Rated voltage: 250 V
Rated impulse voltage: 4 kV
Degree of pollution: 3
Type of electrical connection: Crimp connection
With wire protection: no
Connectable wire cross-section fine-stranded without ferrule: 0.14 to 2.5 mm²
Connectable wire cross-section multi-stranded: 0.14 to 2.5 mm²
Material of contact coating: Other
Material of contact insert: Thermoplastic
Material of contact: Other
Flammability class of insulating material according to UL 94: V0
With protective earth: yes
Min. number of mating cycles: 500
EAN: 5713140185814.

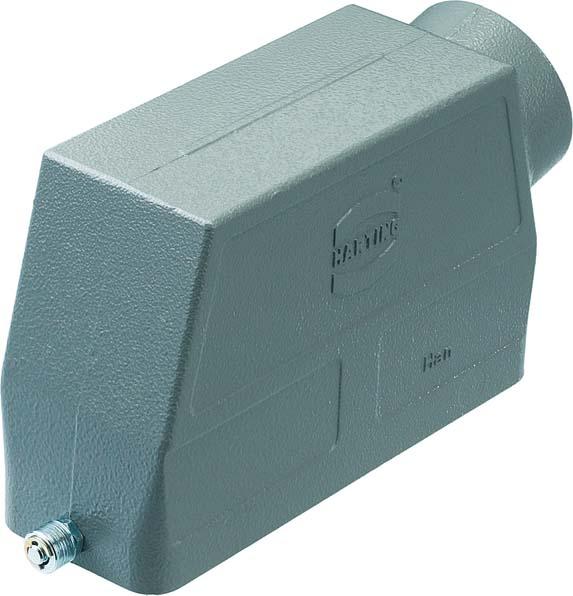

4. Harting Grommet housing
The HAN 24B-GS-R-29 enclosure from Harting is a robust connector housing designed for a variety of applications. Made from powder-coated aluminum, it offers high resistance and durability. With a high profile and a side cable entry, it is ideal for integration into different systems. The IP65 protection rating ensures that the enclosure is protected against dust and splashes, making it suitable for use in demanding environments. The housing is designed for operating temperatures ranging from -40 to 125 °C, providing high flexibility regarding operating conditions. The longitudinal latch locking mechanism ensures a secure connection, while the easy handling and installation make the product user-friendly.
- Made from powder-coated aluminum for increased durability
- IP65 protection rating for dust and splash protection
- Operating temperature range of -40 to 125 °C
- Longitudinal latch locking mechanism for secure connections.
5. Harting Female connector
The Harting spring connector 09185507803 is a high-quality connector designed for connecting printed circuit boards to cables. With a pin count of 50 and two rows of contacts, it provides a reliable and stable connection. The spring connector is made from thermoplastic material, which offers high temperature resistance and can operate within a wide temperature range of -55 °C to 125 °C. The contacts are made from a copper alloy with a precious metal coating, ensuring excellent conductivity. This spring connector meets the requirements of the IEC 60603-13 standard, making it suitable for various applications in electronics.
- Connection type: PCB to cable
- Operating temperature: -55 °C to 125 °C
- Flammability class of the insulating material: V0 according to UL 94
- Meets the requirements of the IEC 60603-13 standard.

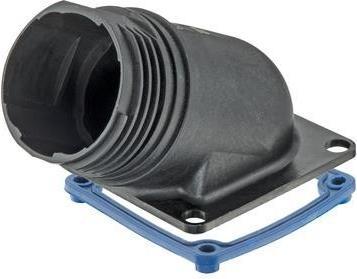

6. Harting Attachment housing
The Harting enclosure is a robust and versatile solution for various applications. Made from high-quality polypropylene, it offers excellent resistance to environmental influences and is suitable for operating temperatures ranging from -40 to 125 °C. The enclosure is equipped with a seal that provides additional protection. It is designed for mounting in different positions and features pass-through holes for easy attachment. The screw locking mechanism ensures a secure and reliable connection. With an IP67 protection rating, the enclosure is dust-tight and protected against temporary immersion in water, making it ideal for use in demanding environments.
- Made from polypropylene for high resistance
- Operating temperature range of -40 to 125 °C
- IP67 protection rating for dust and water resistance
- Equipped with a seal for additional protection.

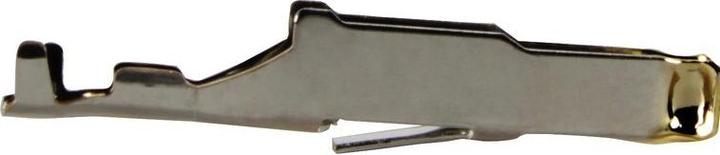

7. Harting DIN plug connector
Harting DIN plug connector 09060008484
Manufacturer: Harting
Designation: DIN plug connector female connectors, crimp
Type: 09060008484
Contact design: Socket
Connectable conductor cross-section fine stranded without ferrule: 0.09 to 0.25 mm²
Connectable conductor cross-section stranded: 0.09 to 0.25 mm²
Type of electrical connection: Other
Stripping length: 3.5 mm
Type of contact: Turned (lathe)
Material of contact: Other copper alloys
Material of contact coating: Other
Minimum number of mating cycles: 400
Number of mating cycles: 400
Further details: Crimp contact, spring contact, copper alloy, precious metal via nickel on the mating side, nickel on the connection side, conductor cross-section: 0.09 to 0.25 mm², AWG 24 to AWG 28.
8. Harting Domino module
Han Domino High Density Cube, Domino module, large tab, crimp connection, pin, contacts: 16, conductor cross-section: 0.09...0.5 mm², rated current: 4 A, polycarbonate (PC), RAL 7032 (pebble grey).
9. Harting Crytype contacts til Han®-series 0,14-2,5 mm² Han® D 100 pcs.
Harting pin contact 09150006102
Manufacturer: Harting
Designation: Pin contact 1.0 qmm
Type: 09150006102
Contact design: Pin
Max. operating current of one contact: 10 A
Connectable conductor cross-section flexible without ferrule: 1 mm²
Connectable conductor cross-section stranded: 1 mm²
Type of electrical connection: Other
Stripping length: 8 mm
Type of contact: Turned (lathe)
Material of contact: Other copper alloys
Material of contact coating: Silver
Min. number of mating cycles: 500
Further details: Crimp contact, operating current: 10 A, pin, copper alloy, silver-plated, conductor cross-section: 1 mm², AWG 18.
Cables + Plugs
Quantity discount
EUR9,45 per piece for 2 units
Harting Crytype contacts til Han®-series 0,14-2,5 mm² Han® D 100 pcs.

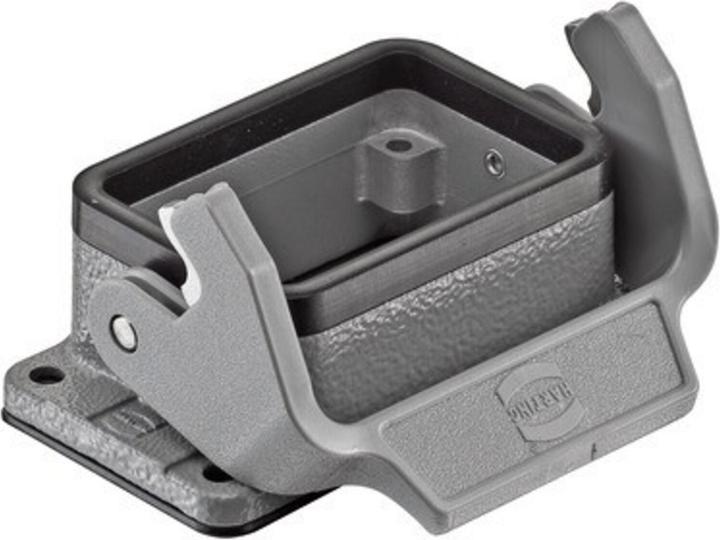

10. Harting Montering cabinet Han® 6B-agg-LB 09 30 006 0301 1 pcs.
The Han® 6B-agg-LB 09 30 006 0301 mounting cabinet from Harting is a robust enclosure designed for use in demanding environments. Made from powder-coated aluminum, it offers high resistance to mechanical influences and ensures a long lifespan. With an IP65 protection rating, the cabinet is dust-tight and protected against water jets, making it ideal for industrial applications. The operating temperature ranges from -40 °C to 125 °C, allowing for versatile use in various climatic conditions. The cabinet is equipped with a seal that provides additional protection against environmental influences. Its compact design and thoughtful arrangement of cable entries make installation and handling simple and efficient.
- Made from powder-coated aluminum for enhanced durability
- IP65 protection rating for dust and water resistance
- Operating temperature range from -40 °C to 125 °C
- Equipped with a seal for additional environmental protection
- Compact design for easy installation and handling.
Cables + Plugs
Quantity discount
EUR11,80 per piece for 2 units
Harting Montering cabinet Han® 6B-agg-LB 09 30 006 0301 1 pcs.
