Best selling Internal cables (PC) from Delock
On this page you'll find a ranking of the best Delock products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Delock Cable OCuLink SFF-8611 > 4 x SATA 7 Pin 0.5 m metal
This OCuLink cable from Delock can be used for the internal connection of various SATA devices, for example, to connect a controller with an OCuLink connection to 4 HDDs with SATA connections. The metal clips on the SATA connectors allow for a secure snap-in connection.
Specifications:
- Connections:
- Host: 1 x OCuLink SFF-8611 plug
- Device: 4 x SATA 7 pin socket
- Serial Attached SCSI (SAS) specification
- Data transfer rate of up to 12 Gb/s
- Wire gauge: 32 AWG
- Length including connectors: approximately 0.5 m
System requirements:
- An available OCuLink interface
Package contents:
- OCuLink cable.
2. Delock SATA power adapter 4x SATA, straight
This cable from Delock is designed to power four SATA devices via a free SATA 15-pin power connector from the power supply. The metal clips on the sockets and the metal clip receptacle on the plug allow for an additional locking mechanism when connecting the cable.
Connections: 1x SATA 15-pin power plug with locking function and 4x SATA 15-pin power sockets with straight metal clips.
Variant with 5 power wires (Yellow = 12 V, Black = GND, Red = 5 V, Orange = 3.3 V).
Wire gauge: 22 AWG.
With gold-colored metal clips.
Length including connectors: approximately 30 cm.
3. Delock SATA-3 cable
They are extremely flexible and can be bent and twisted as needed; even knots are possible. Another advantage is their high durability, which protects the cables from breakage or material weakness. With the use of SATA FLEXI cables, angled connectors are no longer necessary; the connectors can simply be bent in the desired direction. The extra short connectors provide more room to maneuver even in tight spaces and are practical to use. Additionally, the metal clips ensure secure locking. The cables support data transfer rates of up to 6 Gbps and are backward compatible with previous SATA versions.
4. Delock SATA cable SAS 6Gbit/s
This cable by Delock enables the connection of a device with a 22 pin SATA interface over a free SATA port and a free 4 pin floppy power interface of the motherboard.
5. Delock Power adapter P4 4Pin - SATA 0.2 m, only for Lenovo mainboards
This power cable from Delock can be connected to the P4 power connector of a Lenovo motherboard and allows for the power supply of a drive with a SATA 15 pin power connector. The metal clip on the SATA socket ensures that the cable locks in securely.
Note: This cable is only suitable for Lenovo motherboards.
Specifications:
- Connectors: 1 x P4 4 pin plug, 1 x SATA 15 pin power socket
- Voltage: 3.3 V + 5 V + 12 V
- Wire gauge: 20 AWG
- Length including connectors: approx. 20 cm
System requirements:
- Lenovo motherboard with a free P4 connector
Package contents:
- Power cable.
6. Delock 6Pin to 2x 8Pin for graphics card
This Delock power cable is used to supply power to PCI Express cards that have a high power consumption and feature two 8-pin or two 6-pin power connectors, such as graphics cards. Two pins from the connector can be detached from the two 8-pin connectors, allowing you to obtain the 6-pin PCIe connection.

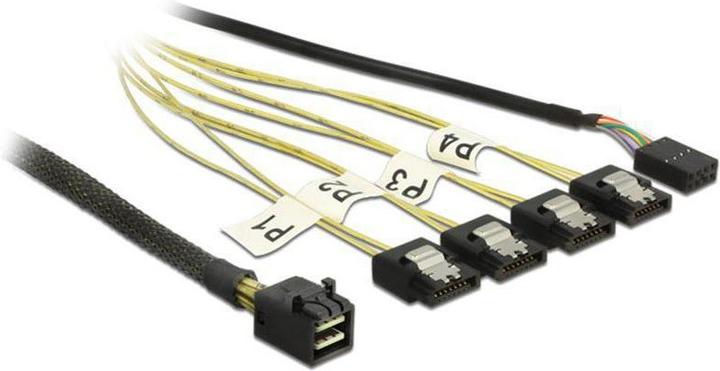

7. Delock Reverse SAS cable: 4xSATA - SFF-8643, 1m
This reverse breakout cable from Delock can be used for the internal connection of various SAS devices, such as an HDD backplane with a Mini SAS HD connector to a controller with 4 SATA ports. The metal clips on the SATA connectors allow for a secure snap-in connection.
Note:
- It is not possible to use SAS hard drives with a SATA controller.
- To connect a SAS controller with SFF-8643 to 4 SATA hard drives, please use Delock item 83393 (forward breakout) instead.
Specifications:
- Connectors:
Host:
4 x SATA 7 Pin
Device:
1 x Mini SAS HD SFF-8643 plug
1 x 8 Pin Sideband header socket
- Pin assignment: Reverse breakout
- 12 Gbps Serial Attached SCSI (SAS) specification
- Length including connectors: approx. 1 m
System requirements:
- An available Mini SAS or SATA interface
Package contents:
- Mini SAS cable.

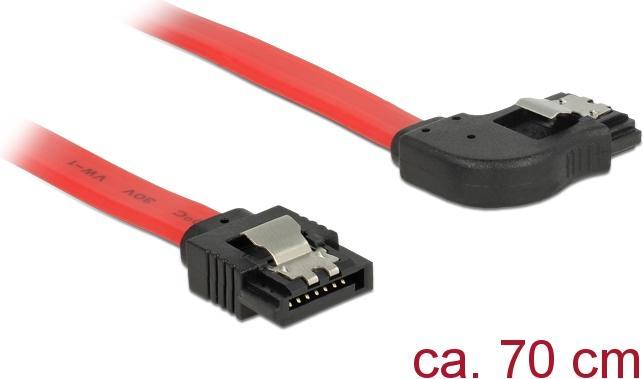

8. Delock SATA cable Serial ATA 150/300/600
This SATA cable from Delock is designed for the internal connection of various SATA devices, such as hard drives, controller cards, or flash storage. It complies with the latest standard and supports a data transfer rate of up to 6 Gb/s, while being backward compatible with previous SATA versions, although only the respective transfer rate can be achieved. When connecting a hard drive, the SATA cable is routed to the right. Additional locking when connecting the cable is facilitated by the metal clips on the connectors.
Specifications:
- Connectors:
1 x SATA 6 Gb/s 7-pin straight socket
1 x SATA 6 Gb/s 7-pin right-angled socket
- With gold-colored metal clips
- Data transfer rate up to 6 Gb/s
- Backward compatible with SATA 1.5 Gb/s and 3 Gb/s
- Wire gauge: 26 AWG
- Color: red
- Length without connectors: approx. 70 cm
System requirements:
- An available SATA port
Package contents:
- SATA cable.
9. Delock SATA to 2x SATA power adapter, 90° angled
The 60170 cable from Delock is used to power two SATA devices via a free SATA 15-pin power connector from the power supply. The metal clips on the sockets and the metal clip receptacle on the plug allow for an additional locking mechanism when connecting the cable.
10. Delock Power Cable SATA 15 pin male > 4 pin female
This power cable can be used to connect a device with a 4-pin power connection to a PC power supply unit with a 15-pin SATA interface.
Specification:
- Connection: 15-pin SATA plug to 4-pin socket
- Power connection cable for 4-pin
- Wire cross-section: 18 AWG
