Best Niedax products in the Satellite accessories category
On this page you'll find a ranking of the best Niedax products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Niedax Fastening set

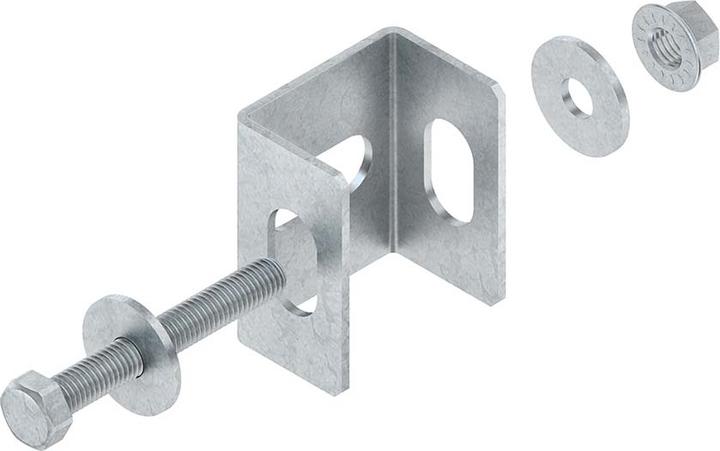

Niedax fixing set STVDP 30.43 S
Manufacturer: Niedax
Designation: Fixing set strip galvanised
Type: STVDP 30.43 S
Material: Stainless steel
Pickled: No
Material grade: Other
Surface protection: Strip galvanised
Niedax fixing set STVDP 30.43 S: further details
Fastening set for wall-mounted and free-standing access deck panelling on access decks for additional requirements. Set consists of: 1 SKM 8X60 F DIN 933, 1 SMF M8 F DIN 1661, 2 UGM 8 F DIN 7093-1, 1 spacer STVDP 30.43 S U for wall-mounted access deck panelling: STVWA... on access decks STUC 45/..., STUC 60/... and STIC 86/... for free-standing mounted access route panelling: STVFA... on access routes STUC 45/..., STUC 60/... and STIC 86/...
Material: Steel, strip galvanised to DIN EN 10346
EAN: 4013339055418.
2. Niedax Rdhfs 9 Vzl
Niedax Cover Retaining Spring RDHFS 9 VZL
Manufacturer: Niedax
Description: Cover retaining spring, galvanically zinc-coated
Type: RDHFS 9 VZL
Suitable for grid channels: no
Suitable for cable ladders: no
Suitable for cable trays: yes
Material: Steel
Stainless steel, pickled: no
Material quality: other
Surface protection: galvanically/electrolytically zinc-coated
The Niedax Cover Retaining Spring RDHFS 9 VZL provides a form-fitting and non-removable seat on the cover. In the mounted state, especially with slip-resistant covers, it prevents shifting in the horizontal and vertical direction (150 N). The cover retaining springs allow for one-sided opening of the cover up to a maximum of 20°, thus enabling additional retrofitting or inspection of cables.
For fastening, a clip/clamp function is used to secure the covers on wall-mounted and freestanding riser tray enclosures. They are also suitable for heavy cable tray covers with and without checker plate support, as well as for angle-adjustable fittings from 0° to 90° in walkable cable tray systems.
When fastening, it is important to maintain a minimum distance of 50 mm from the beginning/end of the cover. The special shape and contour ensure potential equalization. Due to external influences such as wind loads, use in outdoor areas is only possible with additional securing (self-tapping screws, steel band, etc.).
For riser tray enclosures: STVW..., STVWA..., STVFA...
For walkable cable trays: RDS..., RDRS...-2.0, RDSRSL..., RDSRS...
For angle-adjustable fittings 0°-90°: RBAVDS..., RBAVDSRS...
Requirements:
Cover short pieces < 200 mm: at least 2 cover retaining springs
Cover short pieces = 200 - 1000 mm: at least 4 cover retaining springs
Cover pieces = 1000 mm: at least 6 cover retaining springs
Dimensions (approximate):
Length L: 30 mm
Material: Steel, galvanically zinc-coated and passivated, surface layer sealed
EAN: 4013339182985.
3. Niedax KTAM 200 F

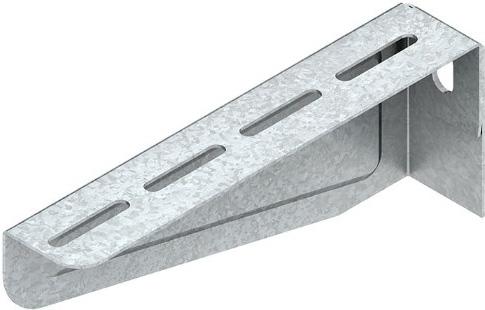

The KTAM 200 F from Niedax is a medium-duty wall and hanging bracket designed for wall and hanging pole installation. It provides a reliable solution for securing satellite accessories and is equipped with hot-dip galvanized mounting hardware that ensures high corrosion resistance. The load capacity of the bracket is up to 1.2 kN, provided it is properly anchored to a load-bearing substrate. The bracket is certified according to the strict guidelines of the VDE, underscoring its safety and reliability. With a support height of 80 mm and a support length of 210 mm, the KTAM 200 F is versatile and suitable for various installation requirements. Manufactured in Germany, it meets the high standards of the industry and offers a durable solution for the installation of satellite systems.
- VDE certified for enhanced safety
- Load capacity of up to 1.2 kN with proper installation
- Made from hot-dip galvanized steel according to DIN EN ISO 1461
- Suitable for wall and hanging pole installation.
4. Niedax KTAM 300 F

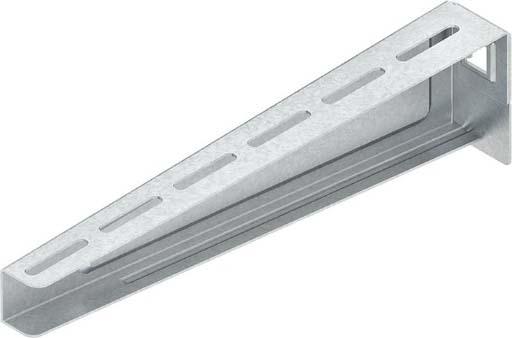

Niedax Hanging Arm and Wall Bracket KTAM 300 F
Manufacturer: Niedax
Description: Hanging Arm and Wall Bracket
Dimensions: 82 x 320 mm
Maximum Safe Working Load according to IEC 61537: 1500 N
Suitable for Cable Tray Width: 50 to 300 mm
Design: Wall and Arm Bracket
Angle: 90 °
Suitable for Function Maintenance: no
Material: Steel
Surface Protection: Hot-dip galvanized
Operating Temperature: -20 to 120 °C
Additional Details:
Medium-duty hanging arm and wall bracket for wall and hanging arm installation, including hot-dip galvanized mounting accessories. The load capacity specifications apply only with adequate anchoring to the supporting substrate or in accordance with regulations for installations on hanging arms. VDE certified!
Dimensions (approximate):
Support Height H: 82 mm
Support Length L: 320 mm
Load Capacity F at L/2: 1.5 kN tested in the system
Material of Bracket: Steel, hot-dip galvanized according to DIN EN ISO 1461.
