Metz Connect NETCOM OpDAT ADT empty rws for 4xSC/2xLC-D 1501100000HC
Best selling Telephone accessories from Metz Connect
On this page you’ll find a ranking of the best Telephone accessories from Metz Connect. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.

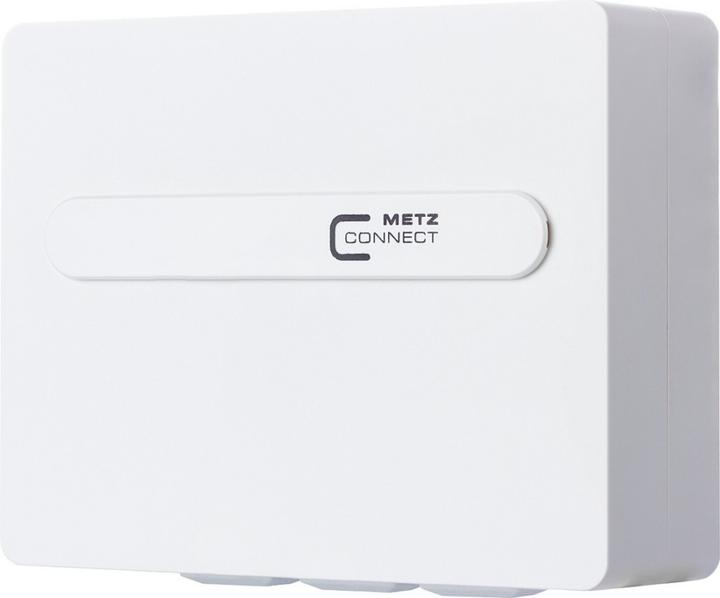

1. Metz Connect NETCOM OpDAT ADT empty rws for 4xSC/2xLC-D 1501100000HC
The NETCOM OpDAT ADT is a compact and universal fiber optic connection unit designed for installation in flush-mounted or hollow wall boxes. It is suitable for both surface-mounted and rail-mounted installations and allows for the connection of pre-terminated installation cables with mini breakout cables or the installation of pigtails. The unit is equipped with three blind plugs and offers versatile cable entry options from the back, top, bottom, left, or right. The pivotable, removable splice cassette is designed for up to eight crimp splice protectors, and the cover can be removed without tools. The plug direction is rotated 90 degrees, allowing for flexible installation. The cover parts are finished in pure white (RAL 9010), ensuring an appealing appearance.
- Compact design for versatile mounting options
- Integrated clips for rail mounting in two directions
- Pivotable, removable splice cassette for up to 8 crimp splice protectors
- Versatile cable entry options for flexible installation
- Tool-free removable cover for easy access.

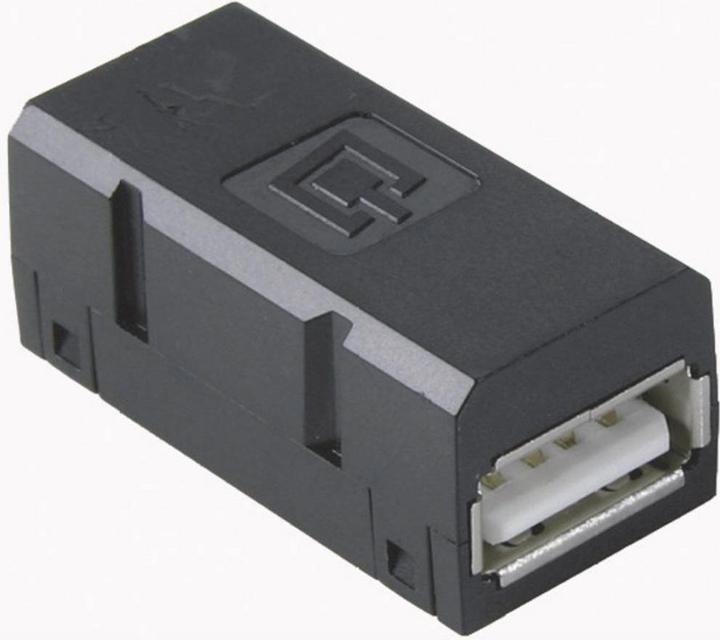

2. Metz Connect USB 2.0 Coupler
USB 2.0 coupling for converting USB connections or for connecting two USB cables with USB-A plugs. Usable with flange variants 1, 4, and 14 with protection class IP67. Usable with the universal test socket with protection class IP65. To achieve IP67 protected socket-to-socket A. Note: no IP67 plugs available.
3. Metz Connect Metz 1108881370 BMT-F-TP BACnet MS/TP
The BACnet MS/TP three-point module with 6 digital inputs, 2 two-stage relay outputs, and 2 digital outputs has been designed for decentralized switching tasks. It is suitable for controlling multi-stage pumps and fans, as well as blinds. The relay contacts must be protected by appropriate load-dependent measures. Inputs and outputs can be switched and queried via standard objects using a BACnet client. Input terminals 1 to 6 are connected to terminals C2 in a two-pole manner using potential-free switches or contacts. The module features a manual control interface for the outputs. The module address and bit rate are set using two switches on the front. It is designed for decentralized mounting on TH35 mounting rails according to IEC 60715 in electrical distribution cabinets. Connection is made using spring-loaded terminals (Push-In).
4. Metz Connect BTR ISDN Adpt. w. Verl. WE8-2xWE8 0.1m to 2x RJ45 with 0.1m cable without terminating resistors pws
The BTR ISDN adapter from Metz Connect is a practical solution for expanding one RJ45 port into two RJ45 ports. With a cable length of 0.1 m, this adapter allows for easy connectivity and is ideal for applications where multiple RJ45 connections are needed. The adapter is designed to operate without termination resistors, making it a flexible choice for various network environments. The input side features an RJ45 connector, while the output side offers two RJ45 connectors. This product is particularly useful for installation in offices or home applications where a reliable network connection is required. The compact design and use of high-quality materials ensure long-lasting performance and ease of use.
- Expands one RJ45 port into two RJ45 ports
- Input side: RJ45, WE8(8)
- Output side: 2 x RJ45, WE8(8)
- No termination resistors required.
Telephone accessories
EUR15,47
Metz Connect BTR ISDN Adpt. w. Verl. WE8-2xWE8 0.1m to 2x RJ45 with 0.1m cable without terminating resistors pws
5. Metz Connect Junction box IAE Design 2x8(4) UPK Cat3 w. Screw terminal rw 130040112-I
Channel connection unit IAE design 8(4) and 2x8(4) for the plug-in connection of one or two ISDN terminals (telephone, fax). The release lever of the plug is conveniently oriented upwards. Due to the 45° plug-in direction, the connection cable of the ISDN terminal falls downwards without overhang. The two sockets with an 8-pin plug face are connected in parallel via a circuit board. ISDN termination resistors of 2 x 100 Ohm are integrated and switchable. The S0 or UP0 bus is connected to the 4-pin screw terminal. The screw terminals allow the connection of up to 3 wires with a diameter of 0.4 - 0.8 mm. Design central plates from leading switch manufacturers are compatible.
Telephone accessories
Quantity discount
EUR14,41 per piece for 2 units
Metz Connect Junction box IAE Design 2x8(4) UPK Cat3 w. Screw terminal rw 130040112-I
6. Metz Connect BTR Cable sharing Adpter Set pnp 2 Ethernet-ISDN Ethernet-ISDN silver
T-adapter for splitting an RJ-45 output into two 4-wire applications. The cable sharing adapters are used to divide an 8-wire RJ-45 output into two 4-wire applications without requiring any changes to the wiring installation. When used in pairs, the adapter can fully utilize the resources of a building's cabling. Compact design - thus, the adapters can also be plugged side by side into the RJ-45 sockets of the patch panel or data outlet.
Telephone accessories
EUR47,28
Metz Connect BTR Cable sharing Adpter Set pnp 2 Ethernet-ISDN Ethernet-ISDN silver
7. Metz Connect BTR UAE-Adpt. w.Verl. 0,1m WE 8- 2x WE8 2-pole 2x Western 8/8 RJ-45 2-pole Outlets split...
The Metz Connect UAE Adapter WE 8-WE 8/WE 8 with a cable length of 0.1 m is a versatile telephone accessory designed specifically for adapting analog devices with different pin configurations to universal building cabling. This adapter allows for easy connection between an RJ45 plug and two RJ45 sockets, facilitating the use of devices with various connection standards. The adapter is unshielded and does not have a termination resistor, making it ideal for applications where simple signal transmission is required. Weighing only 34 g and featuring compact dimensions, the adapter is lightweight and handy, making it a practical solution for network connections. The use of the adapter is particularly beneficial in environments where analog devices need to be integrated without extensive wiring changes.
- Input side: RJ45, WE8(4) for flexible connection options
- Output side: 2x RJ45 for parallel connections
- Easy integration into existing building cabling
- Lightweight and compact design for easy handling.
Telephone accessories
Quantity discount
EUR13,15 per piece for 2 units
Metz Connect BTR UAE-Adpt. w.Verl. 0,1m WE 8- 2x WE8 2-pole 2x Western 8/8 RJ-45 2-pole Outlets split...

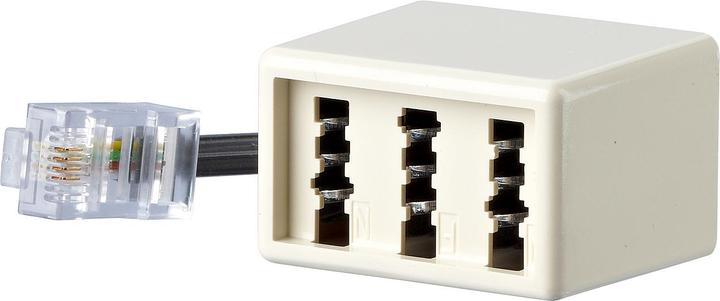

8. Metz Connect 130450440101-E Telephone splitter
The Metz Connect 130450440101-E telephone splitter is a versatile UAE adapter specifically designed to adapt analog devices to universal building cabling. With an RJ45 input and a TAE socket NFN as output, this adapter allows for easy connection between various telephone systems and devices. Its compact design and available extension options of 0.1 m make it a practical solution for different installation requirements. The adapter is finished in a neutral pearl white, allowing it to blend seamlessly into any environment. Weighing only 33.35 g, it is lightweight and easy to handle, facilitating installation and use. This adapter is ideal for anyone seeking a reliable and flexible solution for their telephone connections.
- Input side: RJ45, Output side: TAE socket NFN
- Available in two extension variants: 0.1 m and 6.0 m
- Suitable for adapting to different connection layouts
- Lightweight design with a weight of only 33.35 g.
Telephone accessories
Quantity discount
EUR12,41 per piece for 2 units
Metz Connect 130450440101-E Telephone splitter
9. Metz Connect E-DAT modul 8/8(8) UP - Junction box, flush-mounted
The E-DAT Module 8/8(8) UP from Metz Connect is a high-quality flush-mounted connection box designed for use in modern network infrastructures. With two RJ-45 ports and a CAT 6 classification, this module provides a reliable and powerful connection for various applications. The connection box is finished in an elegant Pearl White (RAL 1013), making it an aesthetically pleasing choice for any environment. The module meets the requirements of relevant standards, including EN50082-1 and ISO/IEC 11801:2002, ensuring high quality and safety. Its compact design, with dimensions of 8.1 cm x 4.1 cm x 8.1 cm, allows for easy installation in various wall types. The T568A wiring scheme ensures standardized and efficient cabling that meets today's network demands.
- Two RJ-45 ports for versatile connection options
- CAT 6 classification for high data transfer rates
- Meets relevant standards for quality and safety
- Compact design for easy installation.
10. Metz Connect NETCOM 130829-4301-I Telephone/antenna/socket outlet
For the extension of flush-mounted junction boxes to surface-mounted junction boxes. Dimensions (LxWxH): 85 x 85 x 43 mm. Additional mounting option at hole spacing of 60 mm. Surface: matt textured. Main features: Technical details. Product color: white. Weight & dimensions: Width 8.5 cm, Depth 8.5 cm, Height 4.3 cm.
Telephone accessories
Quantity discount
EUR10,12 per piece for 2 units
Metz Connect NETCOM 130829-4301-I Telephone/antenna/socket outlet
