Water cooling connections
−5%
EUR18,37 was EUR19,39
Alphacool Icicle L-connector rotatable G1/4 ET to G1/4 IT - 4pcs Set Chrome
Best selling Water cooling connections from Alphacool
This page always stays fresh and updates automatically.
1. Alphacool Icicle L-connector rotatable G1/4 ET to G1/4 IT - 4pcs Set Chrome
Alphacool's Eiszapfen connection series is the high-end version of the proven fittings. All requirements for a connection are met here: high flow, shape, workmanship, and color. Uncompromising development and manufacturing have made the Eiszapfen what they are. Available in brilliant chrome and matte deep black, these two versions integrate excellently into any system. Special processes ensure that the coatings are firmly bonded to the substrate, guaranteeing the durability of the intense colors and preventing the coating from chipping. Each fitting now also features the Alphacool logo, making it distinctive alongside its unique shape.
Design: L-connector, rotatable. This 90-degree angled adapter has a rotatable G1/4" external thread on one side and a G1/4" internal thread on the other. This 90-degree angled fitting is typically used where space is limited and a special solution is needed.
Technical specifications:
Material: Brass
L x W x H: 32 x 18 x 18 mm
Connections: G1/4" male | G1/4" female
Thread length: 5 mm
Possible rotation: 360 degrees
Design: 90 degrees angled
Color: Chrome.
2. Alphacool ANZ icicle 2-way ball valve G1/4 - White
Alphacool's Eiszapfen series is pioneering and features excellent craftsmanship and high flow rates. Ball valves have always been a flow restriction, making life difficult for any pump. In response, Alphacool has developed a ball valve that poses no obstruction up to a diameter of 10 mm. The internal ball seals absolutely tight, preventing any further leakage of the liquid. On both sides, all 1/4" connections can be screwed in with a maximum thread length of 6 mm.
Technical specifications:
Dimensions (L x W x H): 35.4 x 36 x 22.7 mm
Thread: 1/4"
Inner diameter: 10 mm
Color: white.
3. Alphacool HT Adapter 90 degree 16mm AD to 16mm AD Hardtube - knurled
With the new screw-on fittings from Alphacool for acrylic, brass, or carbon tubes, Alphacool takes another step towards perfection and quality. The first two colors, Chrome and Deep Black, offer great variety. The completely coordinated product series allows every system to shine in its own way, and there are no limits to individuality when combined with Alphacool acrylic and brass tubes.
Using a new process for chromating, the coloring is firmly bonded to the brass substrate. This ensures the longevity of the intense color and prevents the chrome layer from chipping. An Alphacool logo on the fittings further emphasizes the uniqueness of these items.
The function of this connector is: This fitting is used to connect two 16 mm acrylic, brass, or carbon tubes at a 90° angle.
Dimensions: Width: 41.5 mm, Height: 41.5 mm
Technical details:
Material: Brass, chromated
Color: Deep Black
Delivery includes: 1 x Alphacool HT 13 mm HardTube screw-on fitting 90° L-connector for acrylic and brass tubes - knurled - Deep Black.
Water cooling connections
−10%
only 9 of 9 remaining on sale
EUR6,12 was EUR6,81
Alphacool HT Adapter 90 degree 16mm AD to 16mm AD Hardtube - knurled
4. Alphacool 13/10mm icicle G1/4
The AlphaCool icicle screw-on fitting made of brass has a diameter of 20 millimeters and features two different sides. One side has a 1/4-inch thread and is compatible with most components. On the other side, a 13/10-millimeter hose can be connected. The thread has a length of five millimeters. The AlphaCool icicle screw-on fitting is angled at 90° and can rotate 360°.
5. Alphacool Icicle Pro Connection 16mm Hardtube Fitting G1/4, 6-Pack
The new Eiszapfen PRO HardTube fittings from Alphacool are an evolution of the well-known Eiszapfen. In developing these fittings, Alphacool specifically focused on a particular issue: the deformation of PETG HardTubes at high temperatures. These can start to deform at just 60 °C. Although such temperatures are generally rare, they can still occur. The Eiszapfen PRO fittings prevent this problem from the outset and keep the tubes in position. Deformation is prevented by the new nylon inserts inside, which stabilize the HardTubes. Furthermore, the fitting still features an O-ring and a compression seal. However, the contact surface is much larger than that of standard O-rings, providing better grip. The use of the compression seal in the screw connection reinforces the tube from both the inside and outside. Even under higher loads, the HardTube does not shift. Alphacool has tested tensile strength of over 8 kg, so there’s no need for concern in this regard.
Technical specifications:
Material: Brass
Color: White
Height: 23 mm
Diameter: 26 mm
Thread length: 5 mm
Thread: G1/4
HardTube size: 16 mm
Compatibility: PETG, acrylic, brass, and glass tubes
Weight: 42 g.
Water cooling connections
EUR46,25
Alphacool Icicle Pro Connection 16mm Hardtube Fitting G1/4, 6-Pack
6. Alphacool 17560 Computer cooling system part/accessories adjustment kit
The Ice Spike series represents the high-end variant of the Alphacool product lines. It is designed to appeal to enthusiasts and professional users, offering them the best in quality, functionality, and design.
How much water comes out when connecting? Thanks to a sophisticated closure and sealing system and the N.D.S.L (no drip, no splash, no leak) technology, water loss when opening the quick disconnect is minimal. Only a tiny drop of water escapes. The closure is easily released by pulling on the connection ring, causing the counterpart to automatically pop out of the quick disconnect. To connect, simply push both pieces together. It's incredibly easy and can be done by any user.
The Alphacool Ice Spike quick disconnects are available in various designs, all of which are compatible with each other.
Water cooling connections
EUR28,83
Alphacool 17560 Computer cooling system part/accessories adjustment kit
7. Alphacool HF Quick release coupling set
Alphacool's new quick-release coupling sets have been newly developed for safety reasons. For this reason, these couplings do not have a "click" mechanism but are screwed together with a kind of union nut. This prevents the couplings from being unlocked accidentally.
Due to the installation of these couplings, the flow rate is only slightly or not at all impaired. When unlocked, both sides of the coupling seal completely.
There is a 1/4" thread on both sides. This means that connections in all sizes can be used.
8. Alphacool 16/10mm icicle G1/4
Alphacools icicle connector series is the high-end version of the proven connectors!\n\all requirements that are placed on a connector are met here: Highflow, form, processing and colouring. Uncompromising development and manufacturing have made the icicles what they are. In brilliant chrome and matt, deep black, two versions are available that fit perfectly into any system.\n\nWith special processes, the coatings are firmly bonded to the substrate, the longevity of the intense colors is thus given and chipping of the coating is prevented. Each connector now also has the Alphacool logo which makes it unmistakable in addition to its special shape!\n\nThe beveled edges of the cap nut press the O-ring very tightly against the HardTube making it even tighter than in the predecessors. This ensures more safety during transport.
Water cooling connections
Quantity discount
EUR8,32 per piece for 4 units
Alphacool 16/10mm icicle G1/4

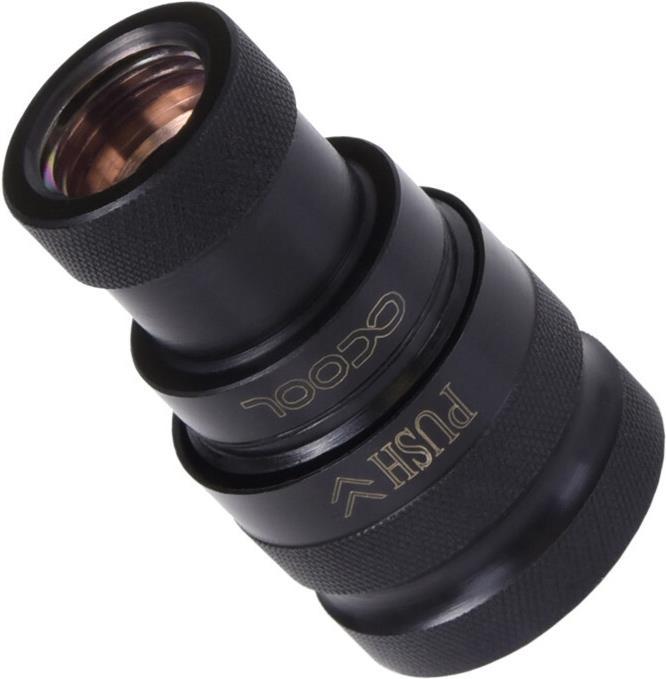

9. Alphacool 17457 Computer cooling system part/accessories customization
The Ice Icicle series represents the high-end variant of the Alphacool product lines. It is designed to appeal to enthusiasts and professional users, offering them the best in quality, functionality, and design.
Only a half quick disconnect?
A quick disconnect consists of a male and a female connector. Therefore, you always need the corresponding counterpart to have a complete quick disconnect. With this product, you only get the half quick disconnect. However, this allows you to combine different versions of quick disconnects. There are variants with a Schott screw connection, with G1/4" external threads, or the classic G1/4" internal threads. This way, you can mix and match as desired and create the best solution for your project.
How much water comes out when connecting?
Thanks to a sophisticated closure and sealing system and the N.D.S.L (no drip, no splash, no leak) technology, water loss when opening the quick disconnect is minimal. Only a tiny drop of water escapes. The closure is easily released by pulling on the connection ring. The counterpart automatically pops out of the quick disconnect. To connect, simply push both pieces together. It's incredibly easy and can be done by any user.
Water cooling connections
EUR17,71
Alphacool 17457 Computer cooling system part/accessories customization
10. Alphacool Icicle L-connector rotatable G1/4 ET on G1/4 IT
The AlphaCool brass ice drip L-connector is 360° rotatable and has a 90° angle. The thread has a length of five millimeters and is compatible with soft hoses. The adapter features a rotatable 1/4" outer thread and a 1/4" inner thread.
Water cooling connections
Quantity discount
EUR6,88 per piece for 4 units
Alphacool Icicle L-connector rotatable G1/4 ET on G1/4 IT
