NZR Coin counter
Coin counterOnly 3 items in stock at supplier
Product details

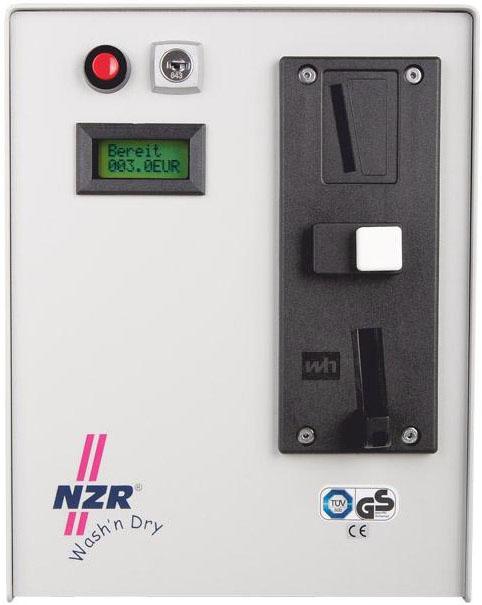

The ZMZ 0215 Wash n Dry timer coin acceptor with a coin input of 0.50 Euro is adjustable by the customer. The release time and the number of coins can be set. After inserting a coin, the released time appears on the display. At the same time, the main relay is activated. The time reserve is reduced in second increments. By inserting additional coins, the time allocation is added accordingly. Due to the factory configuration with an integrated relay, door release button, and internal counter, these devices are ideally suited for use with washing machines and dryers.
The device is built with modern microprocessor technology, a high-quality precision coin validator with wire and thread blocking, counterfeit coin return, and a coin input of 0.50 Euro. The basic time can be set to a maximum time reserve of 99 hours, 59 minutes, and 59 seconds. The smallest adjustable time unit is 1 second. The device accepts an unlimited number of coins until the maximum time reserve is reached. Simple time setting is achieved through logical menu navigation.
The 2-line LC display shows the remaining time, coin pre-selection, and coin type. The coin container has a capacity of 80 pieces of EUR 0.50. Connection is made easily via a 5-pin plug connection. The powder-coated stainless steel housing (RAL 7035 light gray) is equipped with a cylinder security lock. There are two 6-digit internal coin counters, one of which is non-resettable for billing control. The door release occurs with a one-time delay of 1 minute at the push of a button.
The relay is designed for a 3-phase shutdown of 3 x 20 A. The supply is 1x230V, and the power consumption is 4 watts. The switching current is 3x 20 A (AC1), and the output relay has 3 normally open contacts. The weight is 3.0 kg, and the dimensions are 185 x 238 x 150 mm.
30-day right of return
