LED pendant light with a translucent PMMA cover. This pendant light is suitable for individual light applications. The fixture is DALI dimmable and can be integrated into the TRILUX LiveLink light management system. The Y-cable suspension allows for hanging lengths of up to 1450 mm and is included along with the electrical connection cable. It provides a direct/indirect light intensity distribution and has a glare rating according to UGR classification (EN 12464-1) of less than 16. The fixture is screen-friendly according to EN 12464-1, with limited luminance levels of L = 3000 cd/m² for emission angles above 65° all around.

The rated luminous flux is 4400 lm, the rated power is 40.00 W, and the luminous efficacy of the fixture is 110 lm/W. The light color is neutral white, with a color temperature (CCT) of 4000 K and a general color rendering index (CRI) of Ra > 80. The average rated lifespan is L65(tq 25 °C) = 50,000 h. The housing is made of an aluminum extrusion profile and is coated in white (RAL 9016).

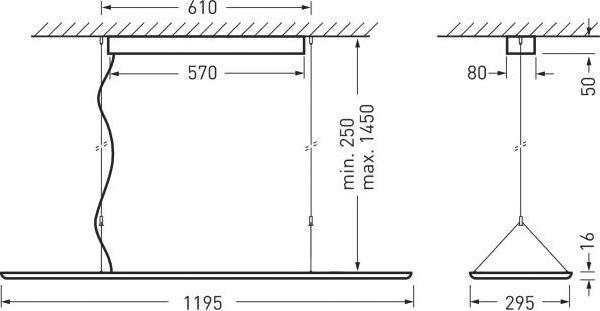

The dimensions are 1195 mm x 295 mm, with a fixture height of 16 mm. The protection class (EN 61140) is I, the degree of protection (DIN EN 60529) is IP20, and the impact resistance rating according to IEC 62262 is IK02. The test temperature for the glow wire test according to IEC 60695-2-11 is 650 °C. The weight is 5.5 kg.

The fixture comes with an external driver that is digitally dimmable (DALI) and complies with the DALI-2 standard (EN 62386). The fixture can be switched and dimmed via DALI control terminals using a touch function (Touch DIM). The driver is interchangeable according to eco-design requirements. The product meets the fundamental requirements of applicable EU directives and the Product Safety Act and bears the CE marking. Additionally, the fixture is ENEC certified by an independent testing body.
