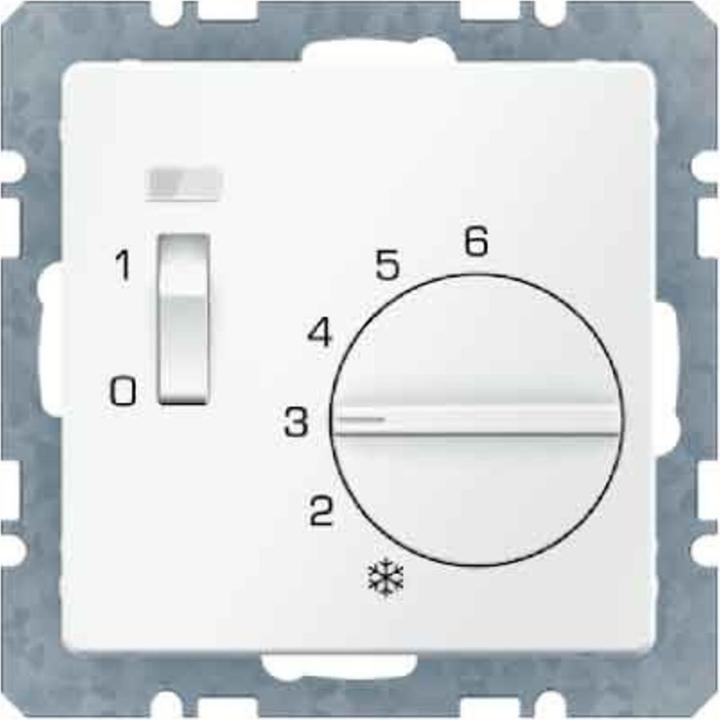

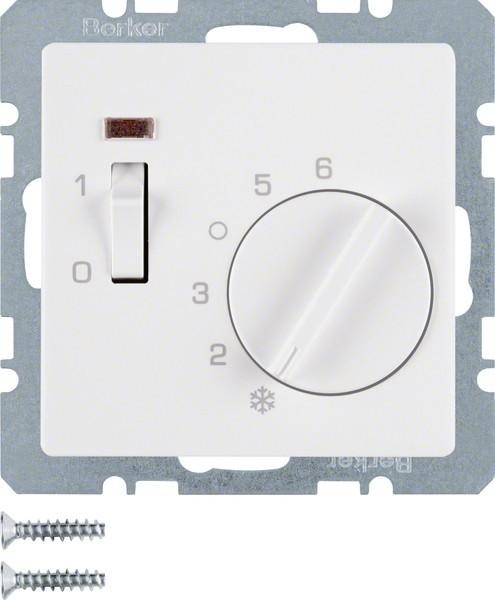

Berker Room Temperature Controller 20306089
Manufacturer: Berker
Designation: Room Temperature Controller
Switch Type: 20306089
Design: On/Off
Power Supply Type: 230 V AC
Connection: 2-Wire
With Receiver: No
Measuring Range: 5..30 °C
External Sensor: No
Thermal Feedback: Series
Control Characteristic: Other
Suitable for Heating: Yes
Number of Heating Outputs: 1
Suitable for Cooling: Yes
Number of Cooling Outputs: 1
Differential Value: 0.5 K
Adjustable Differential: No
Temperature Readable: No
With Noise Level Indicator: No
Sensor/Probe Design: Bimetal
Mounting Type: Flush-mounted
With Display: No
Operation: Rotary
Concealed Operation: No
With Drinking Water Control: No
Contact Type: Normally Closed (NC)
Max. Voltage of Contacts: 4000 V
Max. Contact Load: 10 A
Protection Class (IP): IP20
Protection Class (NEMA): 1
Explosion-Proof: No
Color: White
RAL Number: 9010
Height: 71 mm
Width: 71 mm
Depth: 46 mm
Class of Temperature Controller: I
Power Consumption in Standby: 0 W
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT Support Available: No

Berker Room Temperature Controller 20306089: Additional Details
Temperature controller with normally closed contact, central piece, rocker switch, and LED in polar white, including room temperature controller with normally closed contact, central piece, rocker switch, and LED, with printing, regulation knob with temperature range limitation, with on/off switch and control LED for on, with thermal feedback, with separate connection for night reduction, e.g., for actuator drives normally closed, without spread claws, with plug terminals, neutral conductor required. When the set temperature is reached, the contact opens. Flush-mounted installation, standard program. Material: Plastic, thermoplastic, shatterproof, halogen-free. EAN: 4011334316121.
