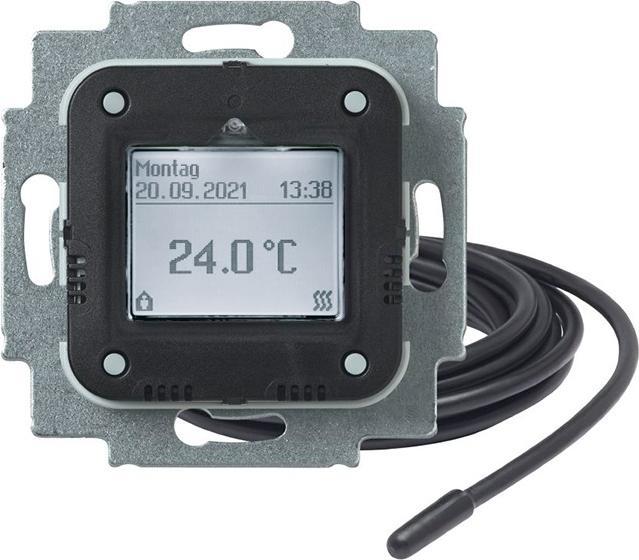

Busch-Jaeger Room Temperature Controller Insert 1098 UF-102

Manufacturer: Busch-Jaeger
Description: Room temperature controller insert switch with remote sensor
Type: 1098 UF-102
With receiver: no
External sensor: yes
Control characteristic: P
Suitable for heating: yes
Suitable for cooling: no
Temperature readable: yes
Mounting type: flush-mounted
With display: yes
With drinking water circuit: no
Protection class (IP): IP20
Explosion-proof: no
Color: black
Height: 71 mm
Width: 71 mm
Depth: 48 mm
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT support available: no

Additional details:
Electronic room temperature controller with setpoint display, timer, and remote sensor. For underfloor heating. Switching contact, potential-free - opens when the set temperature is reached. Easy setting via illuminated, menu- and text-guided display. Up to 4 switching times per day can be freely set for each day of the week. Display switchable between setpoint/actual temperature. With screw fastening. Automatic summer/winter time changeover adjustable. Sensor length: 4 m. Sensor: NTC, 10 kilo-ohms at 25 degrees C. Service life over 10 years. Class of the temperature controller: IV. Contribution to room heating energy efficiency: 2.0%. Rated current: 16 A. Device temperature range: 5 °C - 30 °C. Only install in conjunction with commercially available flush-mounted device boxes according to DIN 49073. For the controller, actuators in the "fail-safe closed" version are required.
