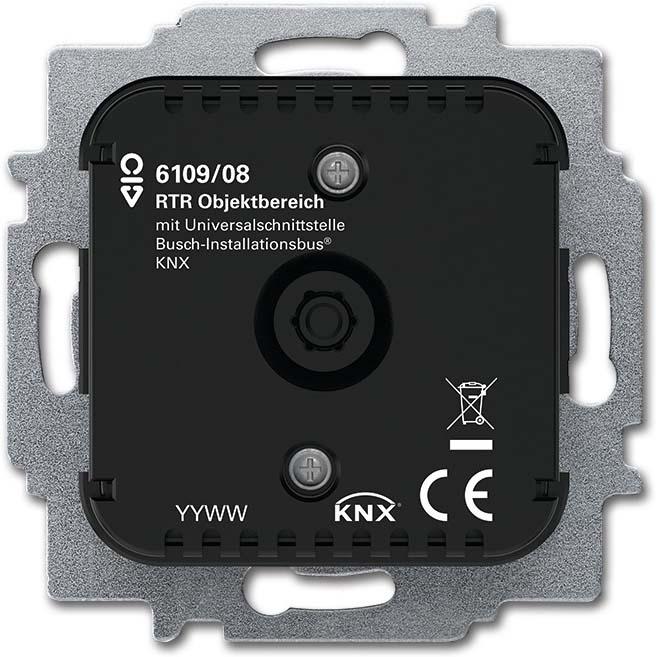

Busch-Jaeger Room Temperature Controller 6109/08

Manufacturer: Busch-Jaeger
Description: Room Temperature Controller
Object Area Type: 6109/08
KNX Bus System: yes
KNX Wireless Bus System: no
Wireless Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Composition: Base element with adapter plate
Mounting Type: Flush-mounted
With Local Control: yes
With LED Display: no
With Display: yes
Number of Digital Inputs: 5
Material: Plastic
Material Quality: Thermoplastic
Surface Protection: other
Surface Finish: matte
Color: black
External Sensor: yes
Manual Setpoint Adjustment: yes
Parallel Operation Possible: yes
Protection Class (IP): IP20
With Bus Coupling: no
Temperature Controller Class: I
Min. Depth of Device Box: 33 mm

Further Details:
Room temperature controller without local control including base for central plate cooling part. Universal input with:

• max. 5 binary inputs
• 4 binary inputs and 1 analog input for controlling sensors with external power supply 1-10V/0-10V
• 2 binary inputs and 1 analog input for controlling sensors with external power supply 1-10V/0-10V and an external temperature sensor PT1000.

Only usable with a central plate 2114-xxx or 6541-xxx, except 6541-20, -21, -260 and -266. With integrated temperature sensor. Master/Slave operation. With basic load operation. The bus connection is made via the included bus terminal.
Contribution to room heating energy efficiency: 1.0%.
From ETS4: Commissioning via native ETS application: Platform 63, Busch-Duro 2000® SI, Reflex SI, Busch-balance® SI, future® linear, Busch-axcent®, solo®, pur stainless steel, carat®, Busch-dynasty®.
EAN: 4011395208748.
