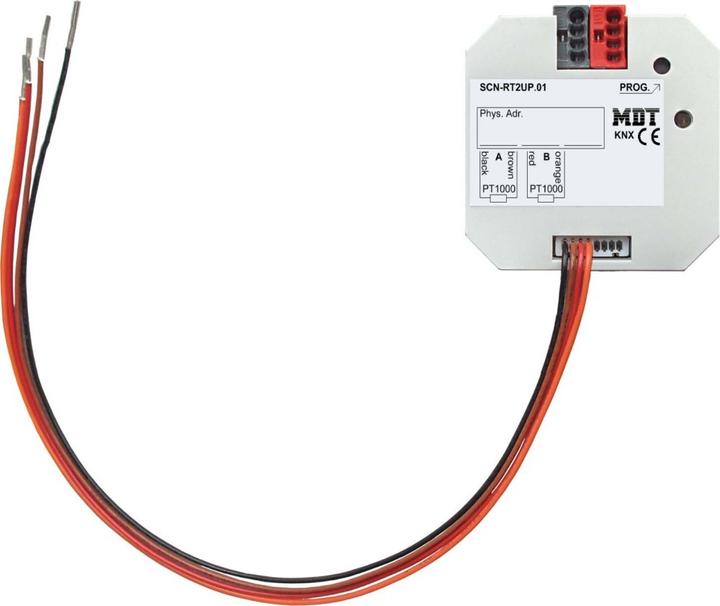

MDT technologies temperature controller/sensor SCN-RT2UP.01

Manufacturer: MDT technologies
Designation: Temperature controller/sensor
Type: SCN-RT2UP.01
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: None
Radio bidirectional: No
Mounting type: Flush-mounted
With on-site operation: No
With theft/dismantling protection: No
With LED display: No
With display: No
Material: Plastic
Material quality: Thermoplastic
Surface protection: Other
Color: Other
Transparent: No
External sensor: Yes
Manual setpoint adjustment: No
Presence pushbutton: No
Parallel operation possible: Yes
Protection class (IP): IP20
With bus coupling: Yes
Min. depth of device box: 35 mm

Further details:
This temperature controller/sensor is a 2-fold, flush-mounted device designed for PT1000 temperature sensors. It is intended for installation in a switch box and measures temperature using external PT1000 sensors, suitable for both indoor and outdoor applications (e.g., with SCN-PTST1.01 or SCN-PTST3.01). The temperature range is from -20 to +110°C. It features a 2-fold temperature sensor for heating and ventilation, with an integrated controller. The controller type (2-point, PI, PWM) or sensor operation is selectable. It includes limit values for min/max, frost/heat alarm, and min/max value memory. Cyclic transmission is adjustable, and it has day/night/frost/heat protection modes along with a cooling function. Status feedback is provided via HVAC and RHCC status objects, and the operating mode can be switched via bit/byte objects. Setpoint specification is possible through visualization, such as MDT VisuControl.
