Best Eberle Controls products in the Heater accessories category
On this page you'll find a ranking of the best Eberle Controls products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Eberle Controls Radio receiver INSTAT 868-a1A
The receiver converts the radio signals from the transmitters into control signals for electrical consumers.
2. Eberle Controls Remote sensor -40 to 120 °C F 89
Eberle Controls Temperature Sensor F 892 002
Manufacturer: Eberle Controls
Designation: Temperature Sensor
Type: F 892 002
Accessory/Spare Part Type: Temperature Sensor
Accessory: Yes
Spare Part: Yes
Eberle Controls Temperature Sensor F 892 002: additional details
Pipe-mounted sensor for the UTR and ITR device series. The sensor cable can be extended up to 50 m for the ITR series and 100 m for the UTR series using a two-wire cable with a cross-section of 1.5 mm² designed for mains voltage. When installed in cable ducts or near power lines (low voltage > 50 VAC), a shielded cable must be used.
EAN: 4017254022630.

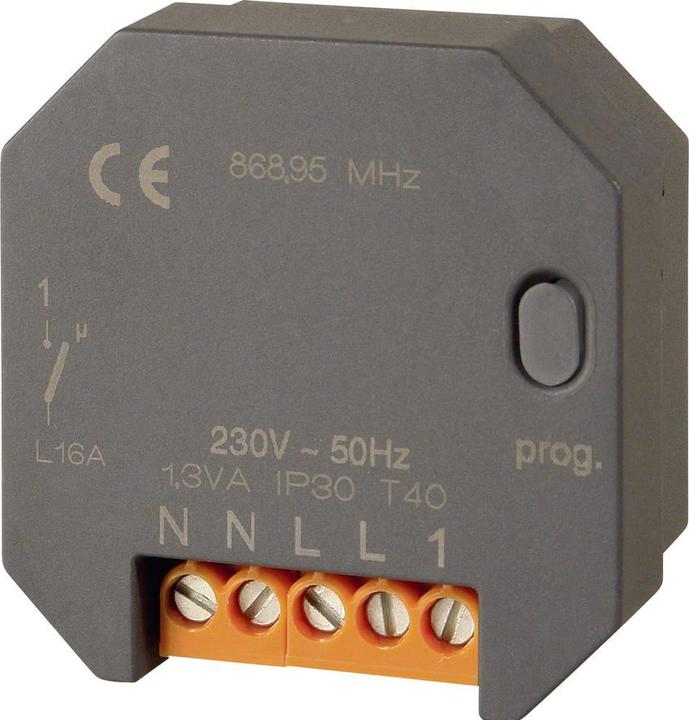

3. Eberle Controls INSTAT 868-a1UP radio receiver
Eberle Controls Radio Receiver INSTAT 868-a1Up
Manufacturer: Eberle Controls
Designation: Radio Receiver 1 Channel, Flush Mount
Type: INSTAT 868-a1Up
Supply Voltage: 230 V
Output Voltage: 230 V
Networkable via Radio (standard): no
Networkable via Radio (optional): yes
Connection for External Antenna: no
Smart Control: no
Number of Channels/Zone: 1
Receiving Frequency: 868 MHz
Suitable for Heating: yes
Suitable for Cooling: yes
Contact Type: Normally Open (NO)
Max. Voltage of Contacts: 230 V
Max. Contact Load: 10 A
Protection Class (IP): IP30
Width: 48.6 mm
Height: 49.4 mm
Depth: 26 mm
Eberle Controls Radio Receiver INSTAT 868-a1Up: additional details
1 channel flush-mounted receiver for the transmitters INSTAT + 868, INSTAT 868 r1 or -r1o. For switching actuators in radiator heating, circulating pumps, and other heating devices intended for temperature control. Window Open Detection: The radio window contact transmits a window open or closed signal to the radio receiver INSTAT 868-a1Up. When a window is opened, the output is immediately switched off. Once all windows are closed again, the relay is switched back on with the next setting signal. Includes emergency operation in case of faults. Direction of action reversal for cooling instead of heating or actuators normally open instead of normally closed. Features an indicator lamp for output status or faults.
EAN: 4017254156816.
4. Eberle Controls Temperature probe
Eberle Controls Temperature Sensor F 193 720
Manufacturer: Eberle Controls
Designation: Temperature Sensor
Type: F 193 720
Accessory/Spare Part Type: Temperature Sensor
Accessory: yes
Spare Part: yes
Eberle Controls Temperature Sensor F 193 720: additional details
Remote sensor for the device series: easy, FR-E, INSTAT +, KLR-E, RTRt-E, RTR R. The sensor cable can be extended up to 50 m with a two-wire cable, with a cross-section of 1.5 mm², designed for mains voltage. When installed in cable ducts or near high-voltage lines, a shielded cable must be used.
EAN: 4017254066535.

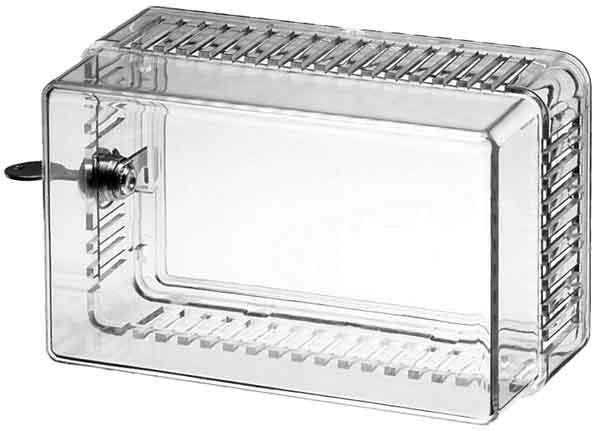

5. Eberle Controls EBER protective housing
The EBER protective enclosure from Eberle Controls is a practical solution for the secure installation of control devices in various environments such as offices and workshops. It offers a robust wall mounting and protects the installed devices from unauthorized access and adjustment. The enclosure is equipped with ventilation slots that ensure adequate air circulation, thereby supporting the functionality of the mounted devices. The lockable design provides additional security and protects against tampering. This protective enclosure is an ideal choice for anyone who values safety and functionality.
- Lockable against unauthorized adjustment
- Ventilation slots for optimal air circulation
- Suitable for installation in various environments such as offices and workshops.
6. Eberle Controls Eberle TFF 524002 Temperature-/
Eberle Controls Temperature Controller TFF 524002
Manufacturer: Eberle Controls
Designation: Temperature Controller 524002 for Open Areas
Type: TFF 524002
Accessory/Spare Part Type: Temperature Sensor
Accessory: Yes
Spare Part: Yes
Eberle Controls Temperature Controller TFF 524002: Additional Details

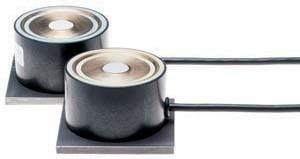

Temperature and humidity sensor for open areas, serving as a replacement sensor for the device series EM 524 89 or EM 524 90. The connection cable of the combined sensor, standard at 15 m, can be extended up to 50 m with a cross-section of 1.5 mm² according to VDE 100. When extending the connection cable, it is advisable to use a numbered cable, which facilitates troubleshooting in case of a malfunction. When installed in cable ducts or near power lines (low voltage > 50 VAC), a shielded cable must be used.

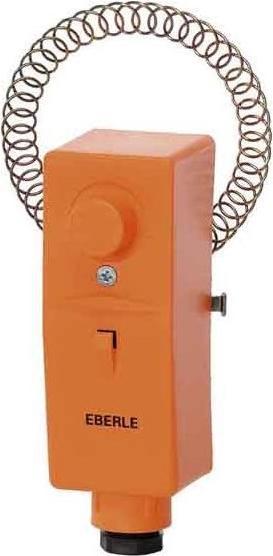

7. Eberle Controls Pipe feeder regulator
Eberle Controls pipe contact controller RAR 87502
Manufacturer: Eberle Controls
Designation: Pipe contact controller
Type: RAR 87502
Measuring range: 20 to 90 °C
Differential adjustable: No
Differential value: 7 K
Design transducer/sensor: Bimetal
Max. voltage of contacts: 230 V
Max. contact load: 16 A
Contact interlock: No
Protection class (IP): IP20
Height: 109 mm
Width: 50 mm
Depth: 59 mm
The Eberle Controls RAR 87502 pipe contact controller features an internal scale and is suitable for regulating liquids by fixing it on the pipe with an elastic clamping band. Utilizing bimetal technology, it does not require a supply voltage. The temperature is set under the housing cover, protecting it against unauthorized adjustment.

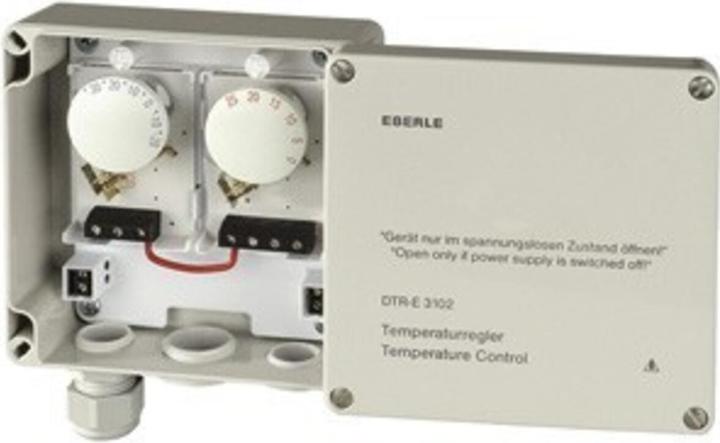

8. Eberle Controls DT controller
Eberle Controls DT-Controller DTR-E 3102
Manufacturer: Eberle Controls
Designation: DT-Controller
Type: DTR-E 3102
Measuring range: -20 to 35 °C
Sensor external: No
Temperature readable: Yes
Differential adjustable: No
Differential value: 3 K
Design transducer/sensor: Bimetal
Contact design: Change-over contact (NO/NC)
Max. voltage of contacts: 230 V
Max. contact load: 16 A
Protection class (IP): IP65
Explosion-proof: No
Height: 122 mm
Width: 120 mm
Depth: 55 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No
The Eberle Controls DT-Controller DTR-E 3102 is a temperature controller for wall mounting, particularly suitable for gutter heating with adjustable upper and lower limits. It features bimetal technology without thermal feedback. EAN: 4017254109171.

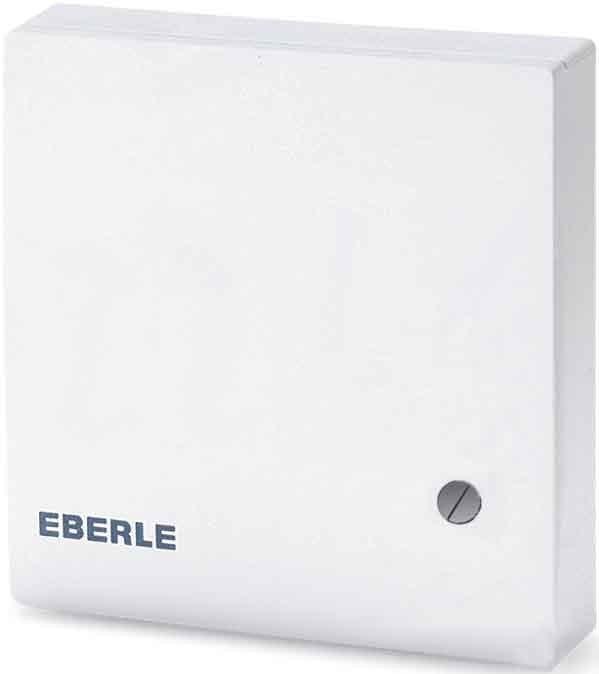

9. Eberle Controls Remote sensor
Eberle F190021 Sensor without cable 75x75x25,5.
10. Eberle Controls EBERLE EM 524 89
Eberle Controls Ice Detector Control Unit EM 52489
Manufacturer: Eberle Controls
Designation: Ice Detector Control Unit AC 230V 16A
Alarm Type: EM 52489
Type of Accessory/Spare Part: Temperature Controller
Accessory: no
Spare Part: no
The ice detector control unit, without sensor, is used for the fully automatic heating of gutters, open areas, driveways, ramps, and outdoor stairs. The control unit determines the optimal activation time to prevent ice formation early, that is, before the freezing point. Since the system is activated only when there is a risk of ice formation, unnecessary energy waste is avoided.
The device features a factory standard program, a digital display of the set and actual values, as well as adjustable parameters. It offers automatic sensor detection and monitoring, adjustable after-heating, an operating hour counter for the heating, and additional functions. It is suitable for DIN rail mounting and compatible with existing sensors.
EAN: 4017254149894.
