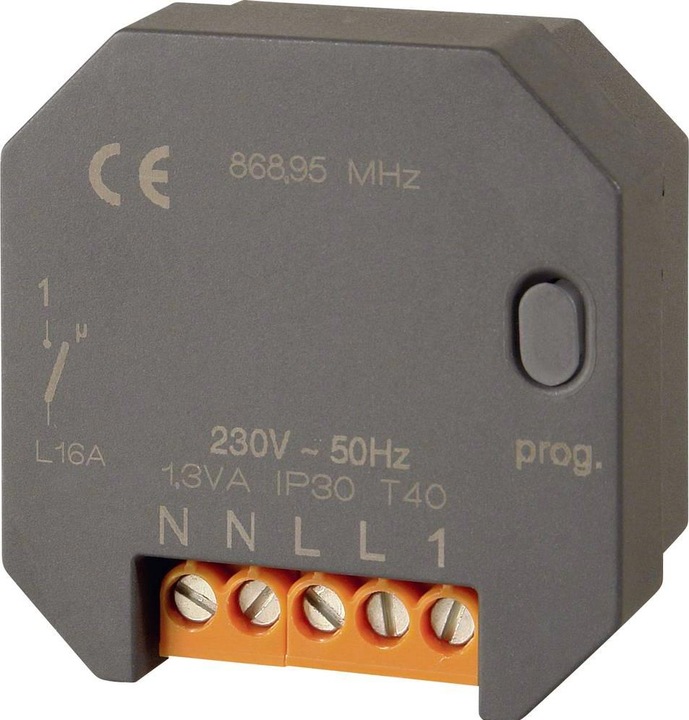

Eberle Controls Radio Receiver INSTAT 868-a1Up

Manufacturer: Eberle Controls
Designation: Radio Receiver 1 Channel, Flush Mount
Type: INSTAT 868-a1Up
Supply Voltage: 230 V
Output Voltage: 230 V
Networkable via Radio (standard): no
Networkable via Radio (optional): yes
Connection for External Antenna: no
Smart Control: no
Number of Channels/Zone: 1
Receiving Frequency: 868 MHz
Suitable for Heating: yes
Suitable for Cooling: yes
Contact Type: Normally Open (NO)
Max. Voltage of Contacts: 230 V
Max. Contact Load: 10 A
Protection Class (IP): IP30
Width: 48.6 mm
Height: 49.4 mm
Depth: 26 mm

Eberle Controls Radio Receiver INSTAT 868-a1Up: additional details
1 channel flush-mounted receiver for the transmitters INSTAT + 868, INSTAT 868 r1 or -r1o. For switching actuators in radiator heating, circulating pumps, and other heating devices intended for temperature control. Window Open Detection: The radio window contact transmits a window open or closed signal to the radio receiver INSTAT 868-a1Up. When a window is opened, the output is immediately switched off. Once all windows are closed again, the relay is switched back on with the next setting signal. Includes emergency operation in case of faults. Direction of action reversal for cooling instead of heating or actuators normally open instead of normally closed. Features an indicator lamp for output status or faults.
EAN: 4017254156816.
