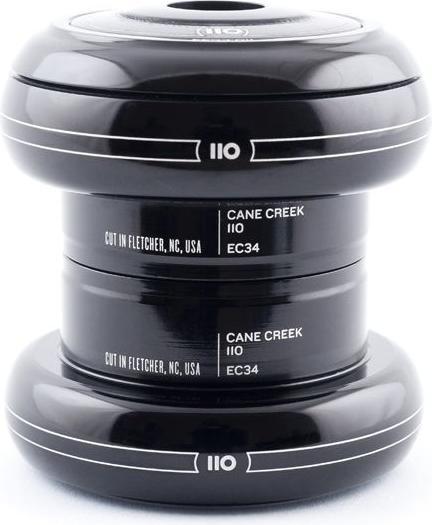

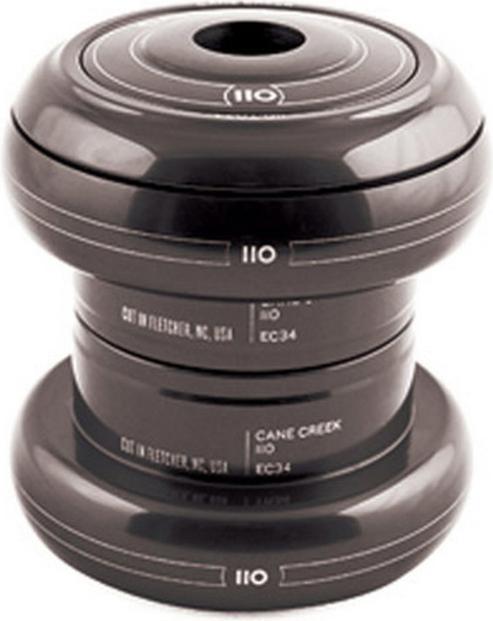

The engineers at Cane Creek were tasked with developing an uncompromising premium headset that ranks among the best in its class. With the introduction of the 110 series, they have done just that – selecting optimal materials, designing the most effective internals, and creating the best aesthetics available in a headset. The 110 series offers the widest range of configurations found in a premium headset. With the flexibility to purchase complete assemblies or separate top and bottom parts, where the tops are available in either short (9 mm) or tall (15 mm) bearing covers, the 110 series provides a premium solution for nearly all straight and tapered configurations on the market today. From integrated tops (IS) to bottom parts with external cups (EC) and everything in between, you can assemble your headset to best meet your needs.

• Design: Standard
• Fork Steerer Diameter: 1 1/8" (28.6 mm / 30 mm)
• Weight: 98 g
• Details:

• Internally designed for minimal weight with maximum stability
• Bearing cone with new technology offers excellent sealing effectiveness with minimal friction
• Compression ring approved for carbon steerer tubes
• Sealed premium precision bearings
• Interlok spacer compatible
• Stack height: 16 mm top, 12 mm bottom
• Made in USA

• Type: Ahead

Material
• Material: 7075-T6 Aluminum

Headset
• Headset type top: External Cup (EC)
• Headset type bottom: External Cup (EC)
• Press fit diameter top (mm): 34 mm
• Press fit diameter bottom (mm): 34 mm.
