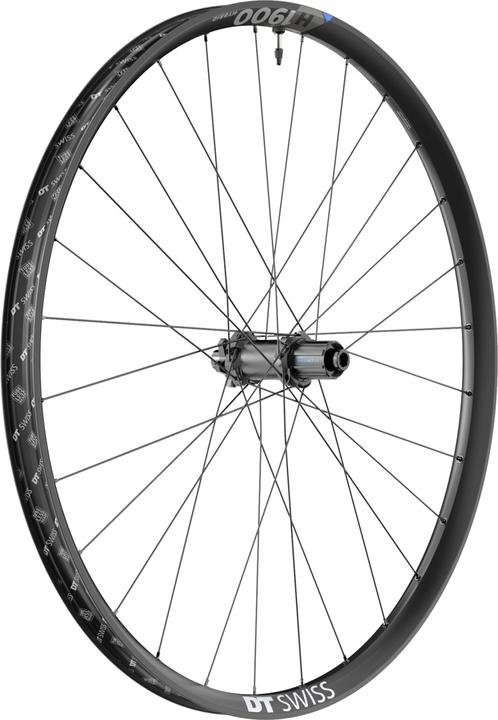

DT Swiss H 1900 Spline
Rear wheel, 29"Only 1 piece in stock at supplier
Product details
H 1900 SPLINE® A reliable aluminum wheelset now featuring Ratchet LN technology for extensive eMTB tours. When motor assistance meets human muscle power, the range of terrains a bicycle can conquer inevitably increases. The H 1900 SPLINE is designed precisely for this purpose and is now equipped with the proven DT Swiss Ratchet technology. The Ratchet LN system distributes the combined force of the rider and motor over a larger area than the previous pawl freehub system, thereby enhancing the robustness of the system by reducing peak loads. The 370 hub, combined with reinforced hybrid spokes and a durable aluminum rim available in two widths, enables complete power transfer to the ground.
BIke wheel type | Rear wheel |
Ability brake type | Disc brake 6-hole |
Suitable tyre type | Tubeless tire |

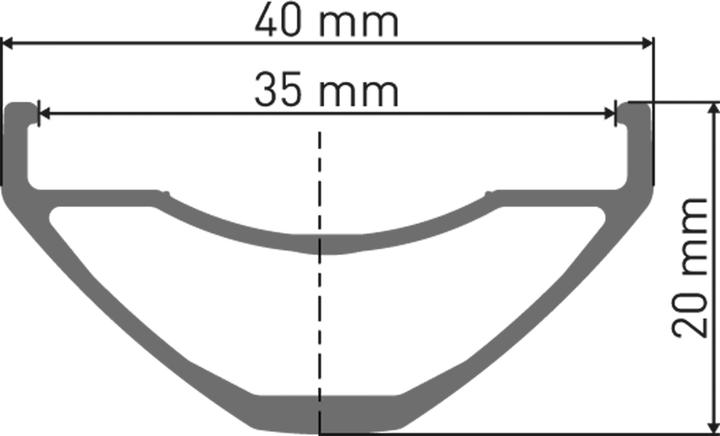

Width | 40 mm |
jaw width | 35 mm |
Axle system | HR 12x142 mm |
Weight | 1252 g |
Item number | 21355363 |
Manufacturer | DT Swiss |
Category | Wheels |
Manufacturer no. | W0H1900TFDSSA18363 |
Release date | 29.6.2022 |
Colour | Black |
Exact colour description | Black |
Material group | Metal |
Material | Aluminium |
Bike area of use | Electric bike, Mountain bike |
Wheel size | 29" |
BIke wheel type | Rear wheel |
Ability brake type | Disc brake 6-hole |
Max. load | 150 kg |
Rim model | HU 1900 Spline |
Material rim | Aluminium |
Rim height | 20 mm |
Number of holes | 28 x |
Suitable tyre type | Tubeless tire |
Width | 40 mm |
jaw width | 35 mm |
Axle system | HR 12x142 mm |
Axis standard | Thru axle |
Installation width front | 148 mm |
Installation width rear | 148 mm |
Diameter axle front | 12 mm |
Diameter rear axle | 12 mm |
Gear rim type | Shimano |
Cassette compatibility | 6-speed |
Freewheel | Shimano |
Country of origin | Poland |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Shimano Hyperglide freehub body kit, Tubeless tape 37 mm, Tubeless valve MTB 32 mm |
Weight | 1252 g |
Length | 67.40 cm |
Width | 67 cm |
Height | 16.60 cm |
Weight | 2.76 kg |
