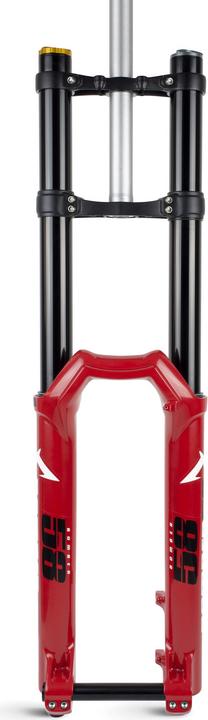

The chassis consists of 40 mm stanchion tubes and a casting for 27.5-inch wheels with a 20x110 DH (non-Boost) axle. The updated FIT GRIP damper features improved compression and rebound adjustments for better sensitivity, traction, and control in the mid-stroke. The EVOL air spring provides a plush initial stroke and easy tuning of air pressure and spring volume for any rider weight and riding style. EVOL - Extra Volume increases the negative air spring volume to ensure optimal sensitivity to small bumps. Grip FIT GRIP is a robust, closed cartridge damper with the ability to recirculate and flush a proprietary bath fluid to maintain consistent cartridge fill and damping performance over time. FIT GRIP offers a detent adjustment for the combined LSC/HSC compression settings.

• Function: Adjustable compression
• Purpose: Downhill / Freeride
• Weight: 2820 g
• Details:

• Max. rotor diameter: 203 mm
• Max. tire width: 2.5 inches
• Offset: 52 mm
• Axle height: 571 mm
• Shaft length: 272 mm

Material
• Stanchion: Aluminum
• Lower leg: Aluminum
• Fork steerer: Aluminum

Fork
• Travel: 203 mm
• Wheel size: 27.5 inches
• Steerer diameter: 1 1/8 inches
• Axle width: 110 mm
• Axle type: Thru-axle
• Axle diameter: 20 mm

Spring system
• Type: Oil / Air

Brake mount
• Brake type: Disc (Post Mount).
