MTF Mount 9.4 (19)

Price in EUR including VAT
Delivered between Mon, 21.7. and Tue, 22.7.
More than 10 pieces in stock at supplier
free shipping

Product details

Premium all-carbon mountain e-bike model designed for demanding users. This machine is suitable for even the most difficult terrain, where it performs exceptionally well thanks to its first-class components.

We offer the e-bike in frame sizes 19" and 21", featuring a classic 29er design with a frame made of lightweight yet strong Carbon UDG material.

It is equipped with the most powerful central motor on the market: the Bafang M510, which delivers a torque of 95 Nm and a maximum power of 750 W, providing excellent support during challenging rides. The motor operates smoothly across all five levels of assistance, thanks to an extremely sensitive torsion sensor.

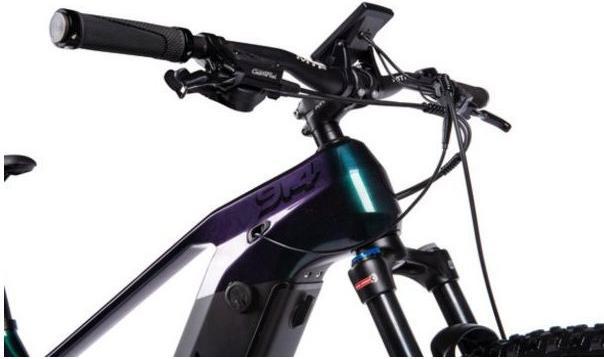

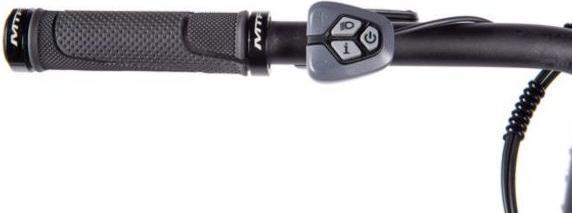

Motor assistance levels can be adjusted using the + and - buttons located on the handlebars, while all driving information is displayed on a color LCD display, which also shows the current motor aids.

Quality components enhance your riding experience both on and off-road, including a Shimano Deore derailleur (11 speeds), SR Suntour X1 Boost air fork with 120 mm travel, Tektro 4-piston hydraulic disc brakes, and Maxxis tires. Battery not included; recommended batteries are listed for each model.

Key specifications

Number of gears
11 x
Weight
19 kg
E-bike type
Electric racing bike
Item number
43424159

General information

Manufacturer
MTF
Category
Electric bikes
Release date
5.3.2024

Colour

Colour
Black
Exact colour description
Black

Bike properties

E-bike type
Electric racing bike
Max. load
120 kg
Number of gears
11 x

Engine properties

Number of power levels
5 x
Electric motor brand
Bafang
Power
750 W
Max. torque
95 Nm
Max. range
160 km
Pedal assistance
Up to 25 km/h

Display properties

Display
LCD display

Bike frame properties

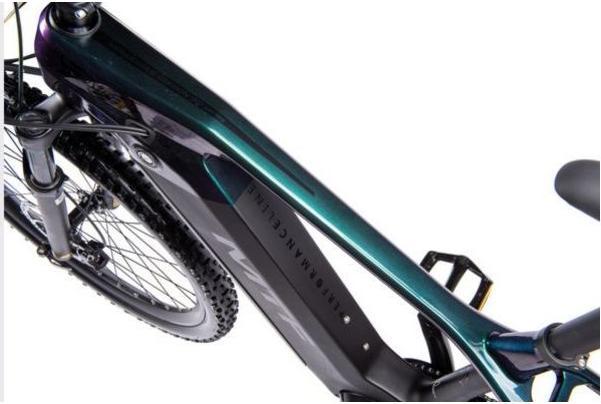

Frame material
Carbon

Fork properties

Fork model
lockable / lockableSR SUNTOUR X1 BOOST AIR LORtravel 120 mm

Stem properties

Stem model
MTF Sport (760 x 31.8 mm)

Handlebar properties

Handlebar model
MTF Sport (760 x 31.8 mm)

Saddle properties

Saddle model
MTF NoPressure Sport

Properties rear shock

Bicycle damper model
SR SUNTOUR X1 BOOST AIR RLOtravel 120 mm

Suspension properties

Suspension fork model
lockable / lockableSR SUNTOUR X1 BOOST AIR LORtravel 120 mm

Shift lever features

Gearshift model
11-speedShimano Deore SL-M5100-IR

Gear properties

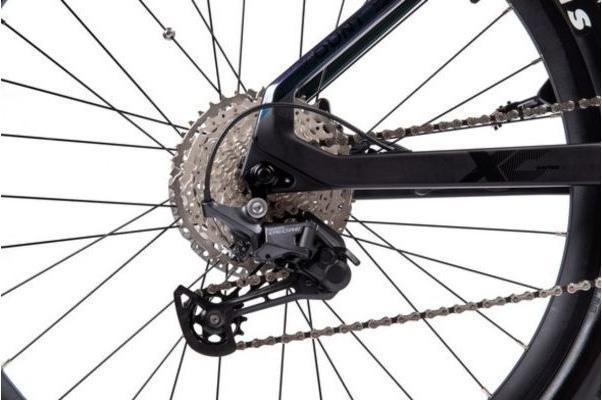

Rear derailleur model
Shimano Deore M5100
Crank model
BAFANG (38 Teeth)Crank arm / pedal arm 170mm

Cassette properties

Cassette model
11sSHIMANO CSM5100 11-42
Number of pinions
42.11 x

Chain properties

Chain model
KMC E11 SPORT

Crankset features

Crankset model
38 TEETHCrank arm / pedal arm 170mm

Bottom Bracket Features

Bottom bracket model
lockable / lockableSR SUNTOUR X1 BOOST AIR RLOtravel 120 mm

Pedal properties

Pedal model
ball bearings / ball bearingsexpanded / extendedVELGO aluminium

Brake properties

Brake model
4-PISTON HYDRAULIC DISC BRAKEHydraul. Disc BrakeTEKTRO HD-M535 Gemini SL

Wheel properties

Wheel diameter
29"
Wheel model
29"
Hub Model
NOVATEC D041SB-15-32H

Tyre properties

Tire model
MAXXIS FOREKASTER 29*2.35

Rim properties

Rim model
29*1.75*14G*32HAlex Rims.

Origin

Country of origin
Czech Republic

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Weight
19 kg
