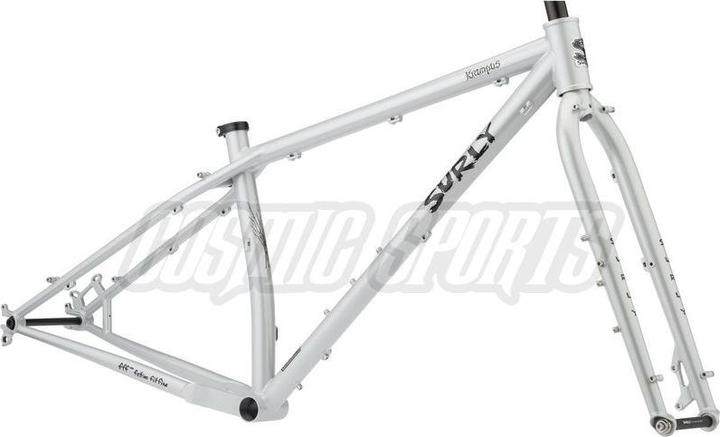

Surly Krampus MTB frame kit, 29+, XL, first loser silver

Price in EUR including VAT
Delivered between Sat, 26.7. and Fri, 1.8.
Only 1 piece in stock at supplier
free shipping

Product details

As the first "Plus" bike to hit the market, the Krampus has changed the way many people approach trail riding. It has demonstrated how large-volume tires with a big diameter can significantly enhance the riding experience. Additionally, it has dispelled the myth that large tires slow you down. The Krampus is somewhat the opposite of a mullet: long in the front and short in the back. With its long top tube and compact chainstays, it elevates trail shredding capabilities to the next level. While a mullet may be business in the front and party in the back, the Krampus makes partying its business.

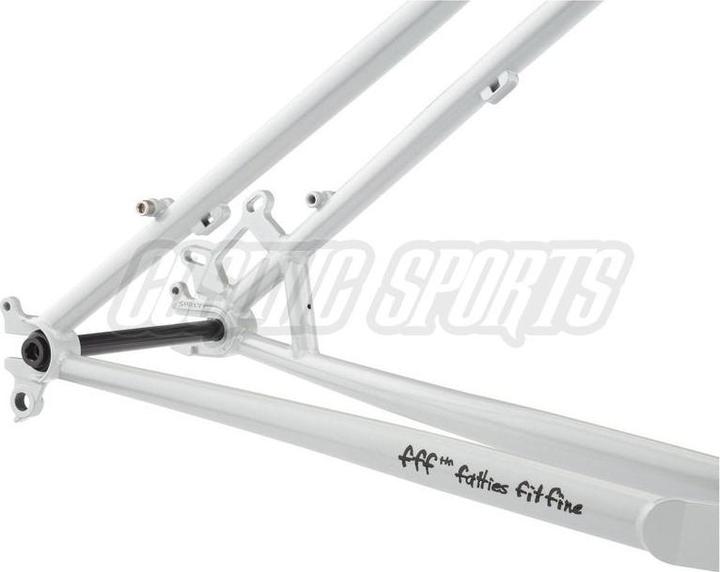

The frame features Gnot Boost 145 mm dropouts, allowing it to accommodate rear wheels in 12 x 142 mm or Boost 12 x 148 mm. Special adapters are required for use with quick-release axles, which are not included.

Features:

  • Mounts for front and rear racks
  • Mounts for front and rear fenders
  • Frame material: 4130 Chromoly, Natch tubing, double butted main triangle, trumpet flared tubes, TIG welded, ED coated
  • Fork material: 4130 Chromoly, Natch tubing, double butted tapered fork blades, TIG welded, ED coated
  • Head tube: ZS44/28.6 top / EC44/30 bottom, 1 1/8"
  • Front hub spacing: 15 x 110 mm
  • Rear hub spacing: 12 x 142 mm, 12 x 148 mm (Gnot Boost dropouts)
  • Brake mount: IS2000
  • Seat clamp: Ø 33.1 mm
  • Seat post: Ø 30.9 mm
  • Derailleur mount: High Direct Mount Top Pull (Ø 34.9 mm)
  • Bottom bracket: BSA 73 mm
  • Max tire width: 29 x 3.0" (without fenders)
  • Max disc brake size: 203 mm
  • Max chainring size: 28 teeth single, 30 teeth single Boost, 36/24 teeth double Boost
  • Max suspension travel: 120 mm.

Key specifications

Item number
33096077

General information

Manufacturer
Surly
Category
Bike frames
Release date
16.5.2023

Colour

Colour
Silver
Exact colour description
first loser silver

Material

Material
4130 Chromolydouble butted main triangleED coatedNatch tubingTIG weldedtrumpet flared tubes

Bike frame properties

frame size
XL
Wheel size
29"
Installation width rear
1704 mm
Diameter rear axle
1704 mm
Travel rear shock
120 mm

Origin

Country of origin
Taiwan

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Weight
4000 g

Package dimensions

Length
119 cm
Width
53 cm
Height
21 cm
Weight
8.45 kg
