Best Fox products in the Bike fork category
On this page you'll find a ranking of the best Fox products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Fox 36 K Float F-S Grip 2 HSC LSC HSR LSR
The 36 K Float F-S Grip 2 HSC LSC HSR LSR is a high-quality suspension fork specifically designed for mountain biking. With a travel of 160 millimeters, it offers excellent damping and control on challenging trails. The fork features air suspension, allowing for individual adjustment based on weight and riding style. The steerer tube has a diameter of 1 1/8 inches, ensuring broad compatibility with various bike frames. It is suitable for 27.5-inch wheels and accommodates a maximum rotor size of 230 millimeters, providing effective braking performance. Weighing in at 1965 grams, it is light enough not to compromise the overall performance of the bike while still offering the necessary stability and robustness for demanding riding conditions.
- Air suspension for individual adjustment
- 160 mm travel for optimal damping
- Compatible with 27.5-inch wheels
- Maximum rotor size of 230 mm for improved braking performance
- Lightweight at 1965 g for better performance.
2. Fox 38 Float 27.5 inch 170 mm 44 mm offset - black/orange
All the revolutionary features of the new 36 packed into a super-strong chassis designed specifically for modern, hardcore enduro racing with long suspension travel: the brand new 38 is at the starting line! Whatever stands in its way, it will never tire of panting for even more speed.
New optimizations of the fork:
- New chassis
- Air and oil ducts in the dip tube unit
- Completely redesigned immersion tube unit
- New fork crown design for more space in the head tube area
Details:
- Series: Factory
- Standpipes: 38 mm
- Wheel size: 27.5''
- Suspension travel: 170 mm
- Mounting height: 565.7 mm
- Steerer tube: 1.5'' tapered
- Offset: 44 mm
- Axle: 15 x 110 mm Kabold X
- Brake mount: PM 7''
- Max. permissible brake disc size: 230 mm
- Max. tyre width: 2.8''
- Cartridge: Grip 2
- Range of use: Enduro, Trail, All Mountain
- Weight: 2200 g
- Model year: 2021.
3. Fox 36 A Float 27.5" P-SE 160mm Grip 2 HSC LSC HSR LSR
The Fox Racing Shox 36 A Float 27.5" P-SE 160mm Grip 2 HSC LSC HSR LSR is a highly advanced mountain bike fork designed specifically for mountain biking. With a travel of 160 mm, it offers excellent damping and control on challenging trails. The fork is made from lightweight aluminum and magnesium, which not only reduces overall weight but also increases stiffness and durability. The lockout feature allows for suspension adjustment directly from the handlebars, making it easier to handle in various riding situations. This fork is suitable for 27.5-inch wheels and provides optimal performance for riders tackling both technical descents and fast climbs.
- Lockable suspension via the handlebars for improved control
- Lightweight and robust material made from aluminum and magnesium
- Optimal damping characteristics with a travel of 160 mm
- Suitable for 27.5-inch mountain bike wheels
- Maximum disc size of 230 mm for powerful braking performance.
4. Fox 36 K Float 29" F-S 160 Grip 2 HSC LSC HSR LSR
For MY23, the FOX 36 receives an update in the form of a new crown with an updated design and technology for increased overlap of the head tube, which improves durability while maintaining stiffness, all while saving 20 grams. The Kabolt X, a lightweight, bolt-on thru-axle, reduces weight and increases torsional stiffness through a sleeve-less, one-sided pinch-bolt design. By increasing the air volume in the lower legs, the amount of additional unintended pressure ramps is reduced. The oil in the lower leg bath also circulates into the upper areas of the legs, continuously lubricating the foam rings and bushings as the fork compresses and rebounds. This allows for atmospheric pressure equalization for better fork performance, enabling full travel to be achieved and improving sensitivity and responsiveness over small bumps. The new lower leg design pulls out all the stops, saving every possible gram without compromising the stiffness and strength requirements of modern enduro and gravity rides. Unmatched ride quality and ultra-precise adjustability. It allows for external fine-tuning of suspension performance thanks to the patented Variable Valve Control (VVC) technology. Sensitivity over small bumps is optimized by increasing the negative air spring volume. The linear spring curve provides light responsiveness in the upper range, additional support in the mid-range, and a more tuneable progression in the lower range.
5. Fox 36 A Float 29" P-S E-Optimized 160mm Grip 3Pos
The Factory model with a new design is 20 grams lighter, while the overlap of the fork steerer at the crown has been increased. This enhances durability while our technology maintains stiffness and reduces weight. By increasing the air volume in the lower housing, the amount of unwanted pressure spikes is reduced. The oil also circulates to the upper part of the housing, continuously lubricating the foam rings and bushings as the fork compresses and extends. Ventilation valves at the lower housing allow for atmospheric pressure equalization for better fork performance, enabling the full travel to be utilized and improving sensitivity and responsiveness over small bumps.
6. Fox 36 Float 29 inch 160 mm 51 mm offset - black/orange
The new standard in the enduro segment is anything but a standard product. Fox Shox has given the award-winning, Enduro World Series-tested 36 a complete makeover, making it even better. Numerous new technologies have been implemented, while the unparalleled combination of ride quality, adjustability, stiffness, and weight remains.
New optimizations of the fork:
- New chassis
- Air and oil channels in the lower leg unit
- Completely redesigned lower leg unit
- New crown design for more space in the steerer tube area
Details:
- Series: Factory
- Stanchion diameter: 36 mm
- Wheel size: 29 inches
- Travel: 160 mm
- Axle-to-crown height: 571 mm
- Steerer tube: 1.5'' Tapered
- Offset: 51 mm
- Axle: 15 x 110 mm Kabold X
- Brake mount: PM 7''
- Max. allowable rotor size: 230 mm
- Max. tire width: 2.6''
- Cartridge: Grip 2
- Intended use: Enduro, Trail, All Mountain
- Weight: 1980 g
- Model year: 2021.
7. Fox 36 K Float 27.5 Grip2 Fit
The Fox Racing 36 K Float 27.5" Factory Grip2 Tapered Boost. The award-winning 36 receives a significant performance boost with the FIT GRIP2 four-way adjustable damper. Equipped with the patented dual Variable Valve Control (VVC) high-speed and low-speed rebound adjustment, improved compression damping, and overall reduced friction, the 36 offers a new level of performance and adjustability that rivals that of the X2 dampers. The high-speed compression and high-speed rebound are now easily adjustable with 8 clicks. The 36 features a patented thru-axle system that combines the benefits of a thru-axle with the simplicity of a tool-free quick release. This system secures the spacing via a floating sleeve, allowing for repeated removal and installation of the front wheel while ensuring perfect alignment of the fork. The positioning of the swing sleeve is factory preset, so you can simply install the front wheel and ride on if you're unsure how to operate the swing axle system or just prefer not to deal with it. The arch design of the 36 is crafted to perfectly fit modern enduro and downhill bikes. The profiles of the head tubes are getting wider, while the fork offsets are becoming shorter. The new arch shape accommodates this by extending forward to provide ample clearance for the head tube during full compression.
8. Fox Performance fork 36 Float E-Optimized 29" 160 Grip 3Pos matt black 15QRx110 BOOST tapered 44mm 2023
Crown and revised housing. The design is 20 grams lighter, while the overlap of the fork steerer at the crown has been increased. This improves durability while maintaining stiffness and reducing weight. By increasing the air volume in the lower housing, the amount of unwanted pressure spikes is reduced. The oil also circulates in the upper part of the housing, continuously lubricating the foam rings and bushings as the fork compresses and extends. Ventilation valves on the lower housing allow for atmospheric pressure equalization for better fork performance, enabling full travel utilization and improving sensitivity and responsiveness on small bumps. Grip2 cartridge. The Grip2 damper sets the standard for unmatched ride quality and ultra-precise adjustability. Grip2 features patented Variable Valve Control (VVC) technology, allowing for external fine-tuning of suspension performance. Grip2 achieves in just a few clicks what typically requires disassembly and reassembly of the fork. Float Evol. Optimizes sensitivity on small bumps by increasing the negative air spring volume. The linear spring curve provides a pleasant ride feel in the upper range, additional support in the mid-stroke, and a more tunable end progression. Function: adjustable compression stage suspension fork. Steerer tube diameter: 1 1/8 to 1.5 inches (tapered). Axle type: QR thru-axle. Axle diameter: 15 mm. Travel: 160 mm. Axle installation width: 110 mm. Wheel size: 27.5 inches. Spring system: oil/air. Brake type: disc (post mount). Intended use: MTB.
Bike fork
EUR1199,–
Fox Performance fork 36 Float E-Optimized 29" 160 Grip 3Pos matt black 15QRx110 BOOST tapered 44mm 2023
160 mm, Air

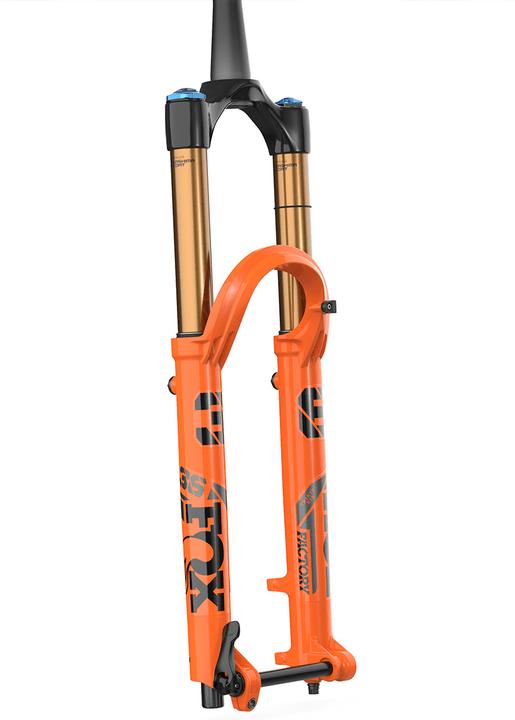

9. Fox 36 Float 27.5 inch 160 mm 44 mm offset - orange/black
The new standard in the enduro segment is anything but a standard product. Fox Shox has given the award-winning, Enduro World Series-tested 36 a complete overhaul, making it even better. Numerous new technologies have been implemented, while the unmatched combination of ride quality, tunability, stiffness, and weight remains.
New optimizations of the fork:
- New chassis
- Air and oil channels in the lower leg assembly
- Completely redesigned lower leg assembly
- New crown design for more space in the head tube area
Details:
- Series: Factory
- Stanchions: 36 mm
- Wheel size: 27.5''
- Travel: 160 mm
- Axle height: 553.6 mm
- Steerer: 1.5'' Tapered
- Offset: 44 mm
- Axle: 15 x 110 mm
- Brake mount: PM 7''
- Max. allowable disc size: 230 mm
- Max. tire width: 2.8''
- Cartridge: Grip 2
- Intended use: Enduro, Trail, All Mountain
- Weight: 1980 g
- Model year: 2021.
10. Fox 36 K Float 27.5" F-S 160 Grip 2 HSC LSC HSR LSR
New crown and redesigned housing. The new design is 20 grams lighter, while the overlap of the fork shaft at the crown has been increased. This improves durability while maintaining stiffness and reducing weight. By increasing the air volume in the lower housing, the amount of unwanted pressure spikes is reduced. The oil also circulates in the upper part of the housing, continuously lubricating the foam rings and bushings as the fork compresses and extends. Bleed valves on the lower housing allow for atmospheric pressure equalization for better fork performance, enabling full travel utilization and improving sensitivity and responsiveness over small bumps.
Grip2 cartridge. The Grip2 damper sets the standard for unmatched ride quality and ultra-precise adjustability. Grip2 features patented Variable Valve Control (VVC) technology, allowing for external fine-tuning of suspension performance. Grip2 achieves what typically requires disassembly and reassembly of the fork with just a few clicks.
Float Evol. Optimizes sensitivity over small bumps by increasing the negative air spring volume. The linear spring curve provides a pleasant ride feel in the upper range, additional support in the mid-stroke, and better-tunable end progression.
Kabolt X axle. Kabolt X is a lightweight, floating, and unilaterally clamped thru-axle that saves weight and increases torsional stiffness.
Features & Specifications:
• Function: Adjustable compression
• Suspension fork
• Axle type: QR thru-axle
• Axle diameter (mm): 15 mm
• Travel (mm): 160 mm
• Axle installation width: 110 mm
• Wheel size (inches): 27.5+ inches
• Steerer tube diameter (inches): 1 1/8 -> 1.5 (tapered) inches
Spring system:
• Type: Oil / Air
Brake mount:
• Brake type: Disc (Post Mount)
Main information:
• Intended use: MTB.
