Fox 36 K Float 27.5 Grip2 Fit

160 mm, Air
Currently out of stock

Product details

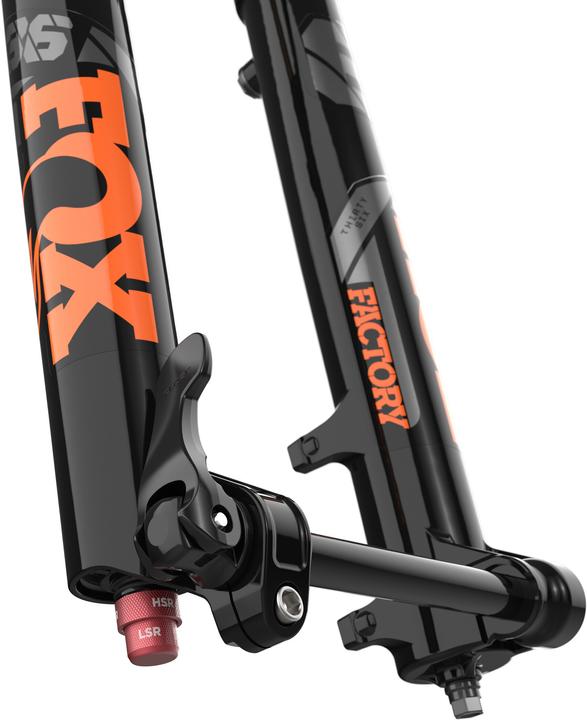

The Fox Racing 36 K Float 27.5" Factory Grip2 Tapered Boost. The award-winning 36 receives a significant performance boost with the FIT GRIP2 four-way adjustable damper. Equipped with the patented dual Variable Valve Control (VVC) high-speed and low-speed rebound adjustment, improved compression damping, and overall reduced friction, the 36 offers a new level of performance and adjustability that rivals that of the X2 dampers. The high-speed compression and high-speed rebound are now easily adjustable with 8 clicks. The 36 features a patented thru-axle system that combines the benefits of a thru-axle with the simplicity of a tool-free quick release. This system secures the spacing via a floating sleeve, allowing for repeated removal and installation of the front wheel while ensuring perfect alignment of the fork. The positioning of the swing sleeve is factory preset, so you can simply install the front wheel and ride on if you're unsure how to operate the swing axle system or just prefer not to deal with it. The arch design of the 36 is crafted to perfectly fit modern enduro and downhill bikes. The profiles of the head tubes are getting wider, while the fork offsets are becoming shorter. The new arch shape accommodates this by extending forward to provide ample clearance for the head tube during full compression.

Key specifications

Suspension travel suspension fork
160 mm
Suspension system
Air
Fork shank diameter
1 1/8''1.5"
Wheel diameter
27.50"
Item number
21600420

General information

Manufacturer
Fox
Category
Bike fork
Manufacturer no.
910-21-122
Release date
2.8.2022

Colour

Colour
Black
Exact colour description
Black/Orange

Material

Material steerer
Carbon

Fork properties

Bike area of use
Mountain bike
Suspension travel suspension fork
160 mm
Suspension system
Air
offset
44 mm
Bike fork functions
Half axle
Model year
2023

Compatibility

Fork shank diameter
1 1/8''1.5"
Wheel diameter
27.50"
Brake mounts
Post mount
Diameter axle
15 mm
Axle length
110 mm
Max. disc diameter
203 mm

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Weight
1965 g

Package dimensions

Length
97 cm
Width
23.10 cm
Height
12.40 cm
Weight
3.27 kg
