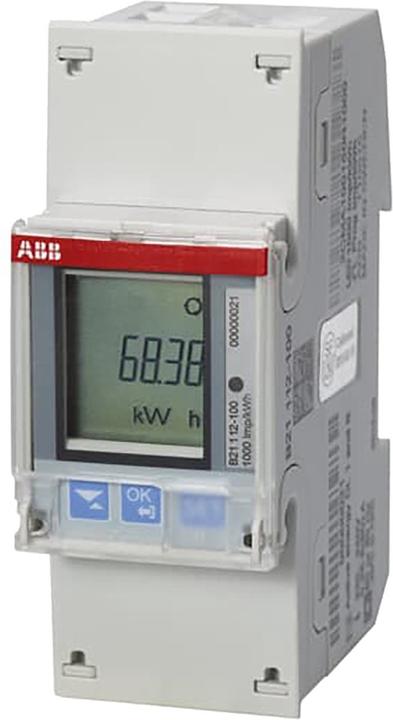

ABB Stotz S&J AC Meter B21 112-100

Manufacturer: ABB Stotz S&J
Designation: AC Meter RS485
Type: B21 112-100
Meter Type: Electronic
Rated Current (In): 65 A
Maximum Current (Imax): 65 A
Rated Voltage (Un) N-L: 220-240 V
Frequency: 50-60 Hz
Accuracy Class: B
Phase Type: Single-phase
Design: Direct measurement
Energy Type: Active power
Suitable for: Consumption
Tariff Type: Single tariff
Load Profile Measurement: No
Reverse Prevention: Yes
Calibrated: Yes
Approval: Measuring Instruments Directive
Pulse Output: Electrical
Pulse Type: S0
Pulse Rate: 1-999999 pulses/kWh (kvarh)
Display Type: Digital
Mounting Type: DIN rail
Width in Division Units: 2
Width: 35 mm
Depth: 65 mm
Height: 26.5 mm
Interface Type: Other
EDL40 Signature: No
With Lock Code: No
Number of Digits: 7
Protection Class (IP): IP20
Protection Class (NEMA): Other

The B21 112-100 AC meter measures single-phase networks via a direct connection for currents up to a maximum of 65 A. The values are displayed on a seven-segment display with up to 7 digits: active energy (Class 1), power, current, voltage (L-N), and frequency. Communication can occur via the integrated RS485 interface (Modbus RTU) or through the infrared interface for connecting a KNX module. The energy meter has a pulse output and is calibrated according to MID as well as approved according to IEC. The installation width is 2 DIN modules.
