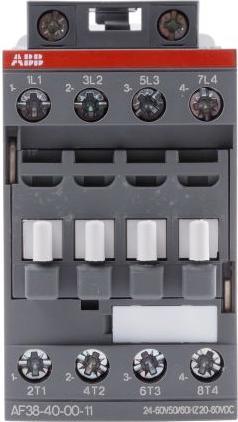

ABB Stotz S&J Contactor AF38-40-00-11 Manufacturer: ABB Stotz S&J Description: Contactor 24-60 50/60 20-60VDC Type: AF38-40-00-11 Rated control supply voltage Us at AC 50 Hz: 24 V Rated control supply voltage Us at AC 60 Hz: 24 V Rated control supply voltage Us at DC: 20 V Voltage type for actuation: AC/DC Rated operational current Ie at AC-1, 400 V: 55 A Rated operational current Ie at AC-3, 400 V: 22 A Rated operational power at AC-3, 400 V: 11 kW Suitable for rail mounting: no Connection type main circuit: screw connection Number of normally open contacts as main contacts: 4 ABB Stotz S&J Contactor AF38-40-00-11: additional details The 4-pole AF38 contactors represent a compact series with AC/DC control and very wide coil voltage ranges. They switch power circuits with motors, lightly inductive or non-inductive loads. Only 4 coils cover control voltages from 20 to 500 VDC and from 24 to 500 VAC. They feature integrated surge protection and do not require additional suppression components. All subsequently attachable normally open auxiliary contacts are designed as mirror contacts according to IEC60947-5-1 Annex L. Additional accessories such as timers, wiring aids, and interlocking components complement the range. Contactors with the coil code -11 are not suitable for connection to 24V DC PLC outputs. EAN: 3471523115316.
