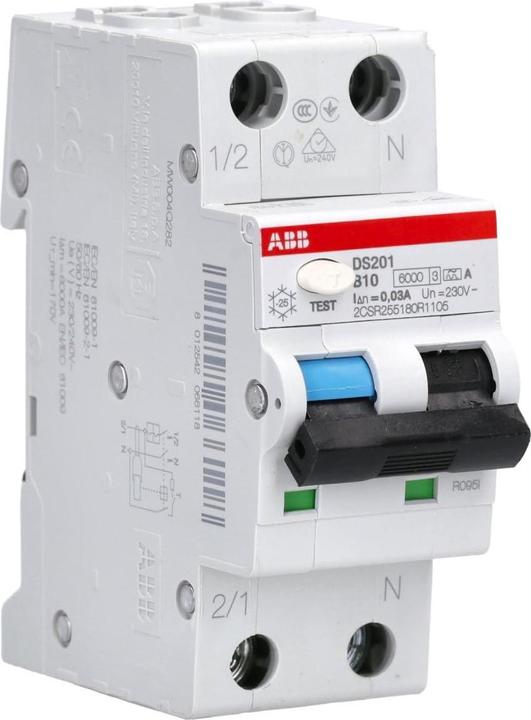

ABB Stotz S&J RCD/MCB DS201A-B10/0.03

Manufacturer: ABB Stotz S&J
Designation: RCD/MCB 6kA, 1p+N
Type: DS201A-B10/0.03
Number of poles (total): 2
Number of protected poles: 1
Rated voltage: 230 V
Rated current: 10 A
Rated residual current: 0.03 A
Residual current type: A
Rated breaking capacity according to EN 61009: 6 kA
Rated breaking capacity according to IEC 60947-2: 10 kA
Impulse current withstand: 0 kA
Voltage type: AC
Frequency: 50/60 Hz
Tripping characteristic: B
Switched neutral conductor: yes
With locking device: no
Overvoltage category: 3
Degree of pollution: 2
Ambient temperature during operation: -25 to 55 °C
Width in modular units: 2
Installation depth: 69 mm
Flush-mounted: no
False tripping protection: no
Protection class (IP): IP2X

Additional details:
RCD/MCBs (RCBOs) provide protection for persons and property as well as protection against electrically ignited fires in accordance with DIN VDE 0100-410 and DIN VDE 0100-530. They ensure the protection of single-phase circuits against overload and short-circuit currents, protection against sinusoidal alternating currents and pulsating currents with a smooth DC fault current component of up to 6 mA to earth. Additionally, they offer fault protection (protection against indirect contact), additional protection (with I?n = 30 mA), and fire protection (with I?n = 300 mA). They comply with product standards IEC/EN 61009-1 (VDE 0664-20) and IEC/EN 61009-2-1 (VDE 0664-21).

Areas of application include household, commercial, and industrial applications. The extensive range of accessories provides everything you need for your installation tasks. Numerous approvals make the DS201 suitable for worldwide use.

Rated breaking capacity according to IEC/EN 61009 Icn = 6 kA.
RCBO DS201 A Type A is 1-pole protected (MCB), 2-pole switching.
EAN: 8012542066118.
