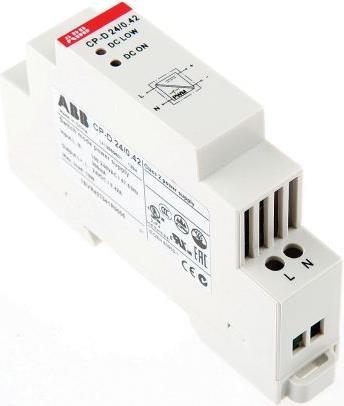

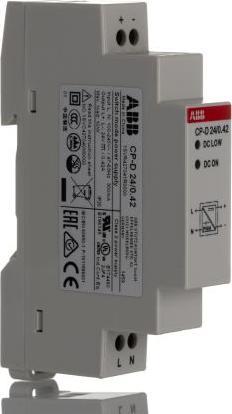

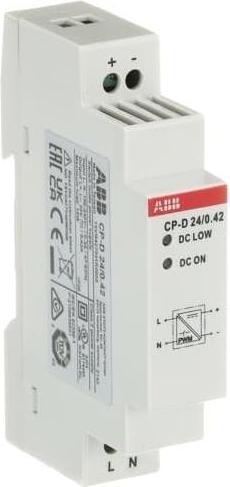

ABB Stotz S&J Power Supply CP-D 24/0.42

Manufacturer: ABB Stotz S&J
Designation: Power supply
Output: 24 VDC / 0.42 A
Type: CP-D 24/0.42
Type of supply voltage: AC/DC

1. Output voltage: 24 V
2. Output voltage: 0 V
3. Output voltage: 0 V

Max. output current 1: 0.42 A
Max. output current 2: 0 A
Max. output current 3: 0 A
Adjustable output voltage: no

Nominal output voltage 1: 24 V
Nominal output voltage 2: 0 V
Nominal output voltage 3: 0 V
Nominal output current 1: 0.42 A
Nominal output current 2: 0 A
Nominal output current 3: 0 A
Short-circuit proof: yes

Rated supply voltage at AC 50 Hz: 90-264 V
Rated supply voltage at AC 60 Hz: 90-264 V
Rated supply voltage at DC: 120-375 V
Regulated output voltage: yes
Power consumption: 12 VA
Power output: 10 W
Stabilized: yes

Type of electrical connection: Screw connection
DIN rail mounting possible: yes
Wall mounting possible: no
Suitable for series installation: yes

Width in pitch units: 1
Installation width: 18 mm
Installation height: 91 mm
Direct mounting possible: no
Width: 18 mm
Height: 91 mm
Depth: 57.5 mm

Suitable for safety functions: no
SIL according to IEC 61508: none
Performance level according to EN ISO 13849-1: none
Protection class (IP): IP20
Protection class (NEMA): 1

ABB Stotz S&J Power Supply CP-D 24/0.42: additional details

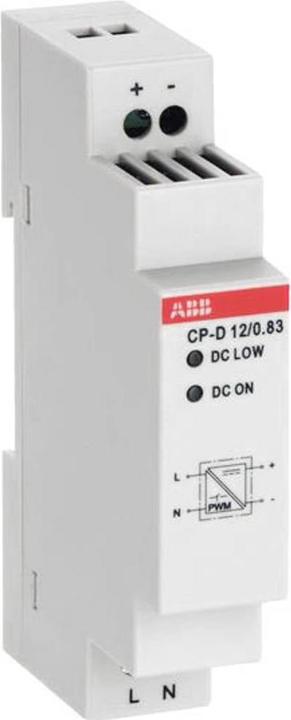

The modular power supplies in MDRC design of the CP-D series (modular DIN rail components) can be optimally installed in distribution boards. This series includes devices with output voltages of 12 V DC and 24 V DC with output currents ranging from 0.42 A to 4.2 A. Thanks to the high thermal efficiency and the associated low power loss and low heating, the devices can be operated without forced cooling. All devices have a U/I output characteristic (fold-forward behavior). The power supplies of the CP-D series are approved according to all applicable international standards.
EAN: 4016779661164.
