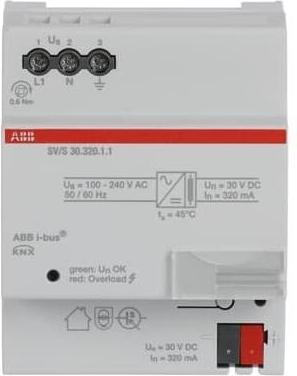

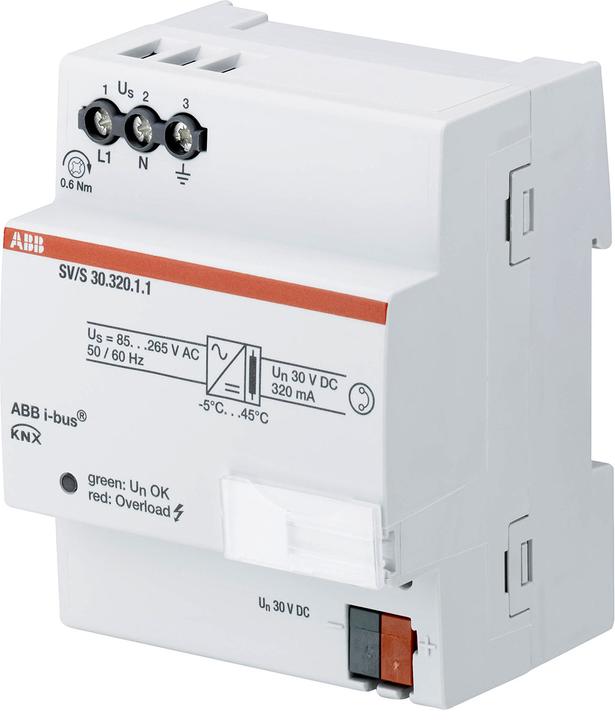

The KNX power supply 320 mA generates and monitors the KNX system voltage (SELV). With the integrated choke, the bus line is decoupled from the power supply. The voltage output is short-circuit proof and overload safe. The two-color LED indicates the status of the device. The power supply features a wide-range input for the supply voltage in the range of 85 to 265 V AC, 50/60 Hz.

Main Features

Features
Input Voltage 85 - 265 V
Input Frequency 50/60 Hz
Output Voltage 30 V
Power Type AC-to-DC
Output Current 0.32 A
Adjustable Output Voltage No
International Protection Class (IP Code) IP20
Certification CE

Performance
Input Operating Voltage (min) 85 V
Input Operating Voltage (max) 265 V

Design
Product Color Gray
Housing Material Plastic
LED Indicators Yes

Operating Conditions
Operating Temperature Range 5 - 45 °C
Storage Temperature Range 25 - 55 °C
Relative Humidity in Operation 0 - 93%

Weight and Dimensions
Width 72 mm
Depth 64.5 mm
Height 90 mm
Weight 260 g

Packaging Data
Quantity per Package 1 piece(s)
Packaging Width 93 mm
Packaging Depth 77 mm
Packaging Height 65 mm
Package Weight 300 g

Technical Details
Power 12.5 W
Peak Current 30 W.
