Phase = 3
Supply voltage = 208 → 600 V
Rated current = 30 A
Operating voltage = 600 V
Control voltage = 100 → 240 V ac
Power = 15 kW
Protection class = IP20
Total length = 128mm
Total width = 45mm
Total depth = 160mm
Operating temperature min. = -25°C
Operating temperature max. = +60°C
Series = PSR

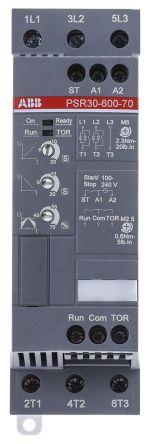

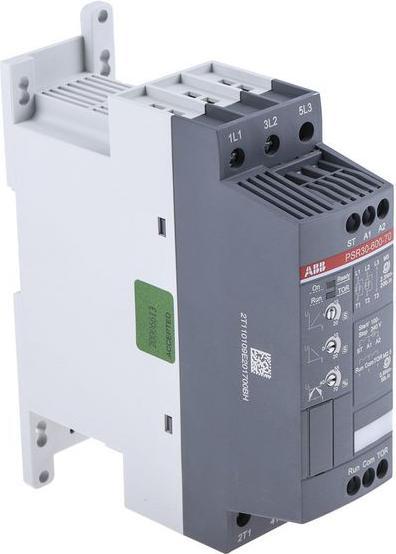

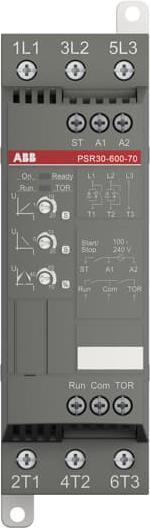

PSR - Compact soft start. The PSR series is ABB's most compact series of soft starters. The compact PSR series allows many units to be mounted in the same enclosure. Setup of the PSR series is simple and is accomplished by using the three clearly labeled potentiometers on the front panel. The integrated environment on all sizes not only saves energy; it also makes for the most compact design of ABB soft starters, and it reduces installation time. Reduced heat generation allows the soft starter to be mounted in enclosures with high IP ratings. Wide rated operating voltage range: 208-600 V Rated control supply voltage: 24 V ac/dc or 100-240 V ac Rated operating current: 3-105 A Settings by potentiometer Operating signal relays on all units Integrated bypass to save energy and reduce installation time Advanced algorithm to eliminate the DC component to achieve excellent starting performance DIN rail mounting for PSR3 to PSR45 Screw mounting for all sizes.
