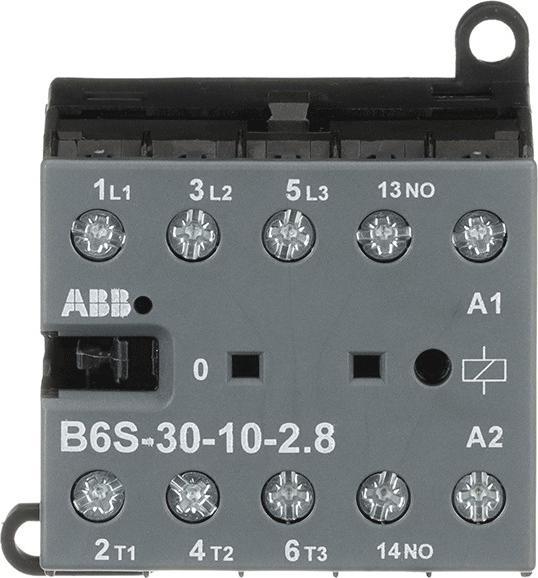

ABB Stotz S&J PLC small contactor B6S-30-10-2.8-72. Manufacturer: ABB Stotz S&J. Designation: PLC small contactor 1S 24VDC 4kW. Type: B6S-30-10-2.8-72. Rated control supply voltage Us at DC: 17...32 V. Voltage type for actuation: DC. Rated operational current Ie at AC-1, 400 V: 20 A. Rated operational current Ie at AC-3, 400 V: 9 A. Rated operational power at AC-3, 400 V: 4 kW. Rated operational power NEMA: 1.4914 kW. Suitable for series installation: No. Number of auxiliary contacts as make contacts: 1. Connection type main circuit: Screw connection. Number of make contacts as main contacts: 3.

Further details: Small contactors B/BC 6 and B/BC 7 of 4 and 5.5 kW AC-3 (400 V) represent a series with very small dimensions and connection variants in screw, solder pin, and blade terminal technology. This, together with a wide range of contact and coil variants, offers a very wide range of possible applications, even in unfavorable space conditions. With their AC or DC control, they switch power circuits with motors, light inductive, or non-inductive loads. Attachable accessories include extinguishing elements and 2-pole auxiliary switches that can be plugged in at the side or front.
