Product details

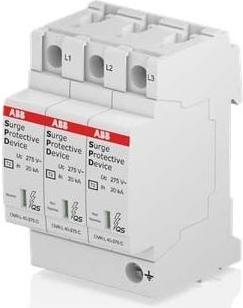

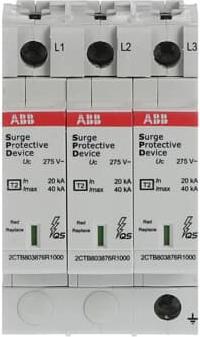

Surge protective devices SPD Type 2 with thermal monitoring QuickSafe® are designed to protect against indirect lightning strikes and switching overvoltages. They are installed as close as possible to the power supply point of the electrical system. All OVR T2 consist of a base unit and a replaceable protection module. They are equipped with a mechanical function indicator, and the TS variants feature a potential-free changeover contact. They are compatible with the System pro M compact series and can be connected to it via phase rails. The main application is in sub-distributions and final circuits.
Type: OVR T2 3L 40-275 P QS
Type T2 surge arrester.
Surge protection type | Surge arrester |
Number of conductors | 3x |
Mounting type | Top-hat rail |
Test class | Type 2 |
Item number | 25267609 |
Manufacturer | ABB |
Category | Surge protection |
Manufacturer No. | 2CTB803873R2400 |
Release date | 20.4.2023 |
External links |
Colour | White |
Exact colour description | White |
Surge protection type | Surge arrester |
Number of conductors | 3x |
Lightning impulse current | 20 kA |
Rated leakage surge current | 20 kA |
Nominal voltage | 230 V |
Mounting type | Top-hat rail |
Test class | Type 2 |
Protection type (IP code) | IP20 |
Country of origin | China |
Manufacturer commitment | RE100 |
CO₂ emissions | 2,62 kg |
Climate contribution | EUR 0,12 |
Product Safety |
Length | 10 cm |
Width | 8 cm |
Height | 5 cm |
Weight | 50 g |
