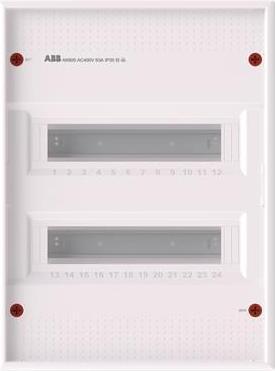

Striebel & John Surface-Mounted Distribution Board AK624N3

Manufacturer: Striebel & John
Designation: Surface-Mounted Distribution Board 24PLE2RE
Type: AK624N3
Mounting Type: Surface-mounted
Number of Rows: 2
Width in Division Units: 12
Type of Cover: Lid
Lid Design: with Cutout
Transparent Lid/Door: no
Signal-Passing Door: no
With Lock: no
Type of Closure: Push-button
Material of Housing: Plastic
Installation Depth: 55 mm
Installation Height: 406 mm
Installation Width: 255 mm
Internal Depth: 55 mm
Grounding Terminal Block: yes
Neutral Terminal Block: yes
DIN Rail: yes
With Mounting Plate: no
Mounting Option: yes
EMC Version: no
UV Resistant: no
Color: white
RAL Number: 9016
Protection Class (IP): IP30
Height: 453 mm
Width: 339 mm
Depth: 99 mm

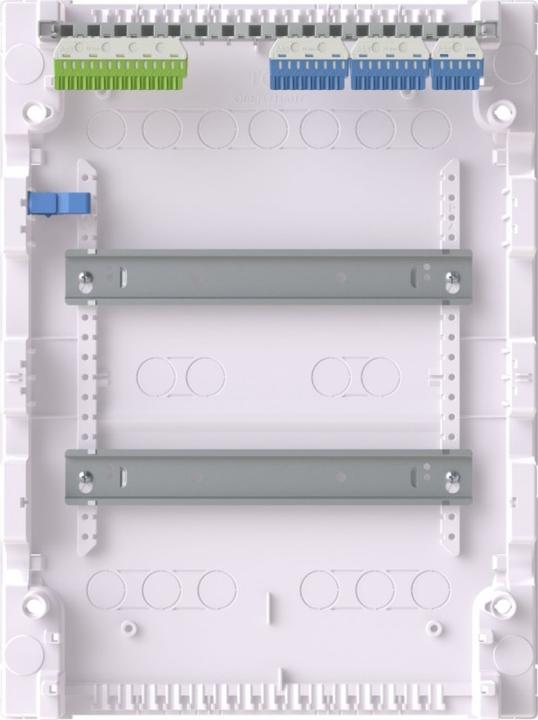

The circuit distribution boards of the AK600 series are designed for surface mounting. They impress with many new and unique technical features. A connection space that is up to 133% larger allows for easy and efficient installation of the modular devices. The removable DIN rails can be positioned within the distribution board according to requirements, ensuring straightforward installation. Clever details such as the cable catch rail and an integrated terminal holder highlight the high flexibility of the distribution boards. The distributions are marked with a VDE certification.

Applicable Standards: DIN 43871, DIN EN 60670-24, VDE 0606-24.
