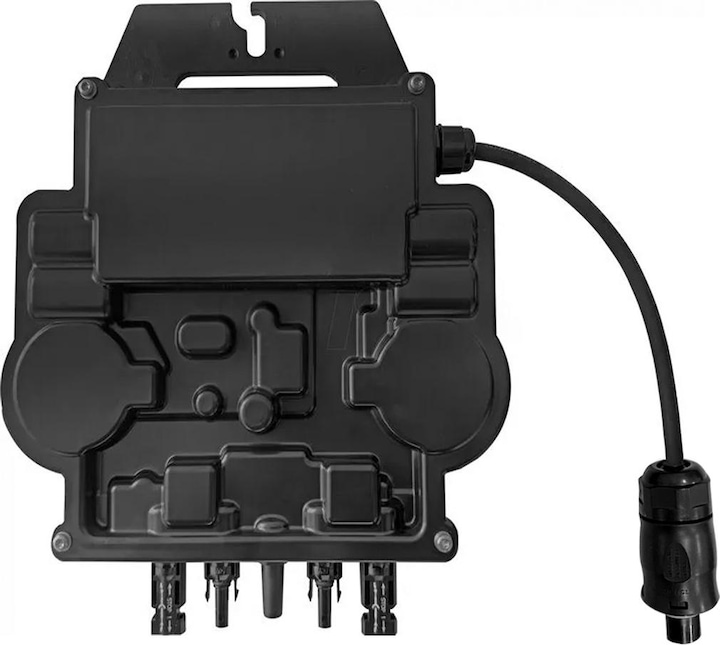

Micro inverter:
Peak efficiency of the inverter up to 96.7%
MPP tracking for each solar module, high efficiency of up to 99.5%
Operating temperature range from -40°C to +65°C
Simple installation and user-friendly operation.

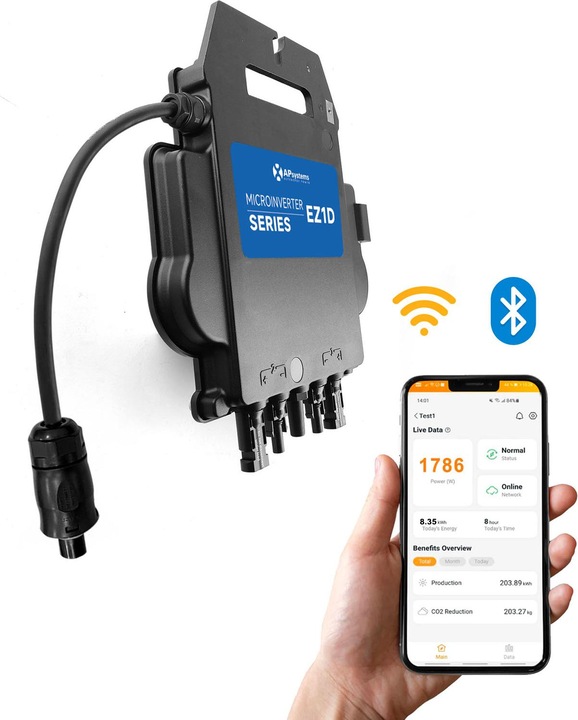

Convenient monitoring and control via the AP EasyPower app with the integrated Wi-Fi and Bluetooth module
Lightweight and compact
Dustproof and waterproof in accordance with IP67
High level of safety thanks to integrated protective functions
Tested in accordance with VDE-AR-N 4105:2018-11, IEC61000-6-1/-2/-3/-4 (EMC)
Long service life
The micro inverter is installed with the Betteri BC01 plug

Mains connection cable:
3 x 1.5mm² insulated PVC cable H05VV-F connection cable
Plug connector on the inverter side: Betteri plug
Plug connector on the socket outlet side: Schuko plug type F
Rated voltage: 300/500V CE
Operating temperature: 70°C
Rated current (BC01): 20A
TÜV tested according to PPP 59015A:2013

Scope of delivery:
Micro inverter EZ1D 1 pc.
Mains connection cable (Betteri plug) - 5m 1 pc.
