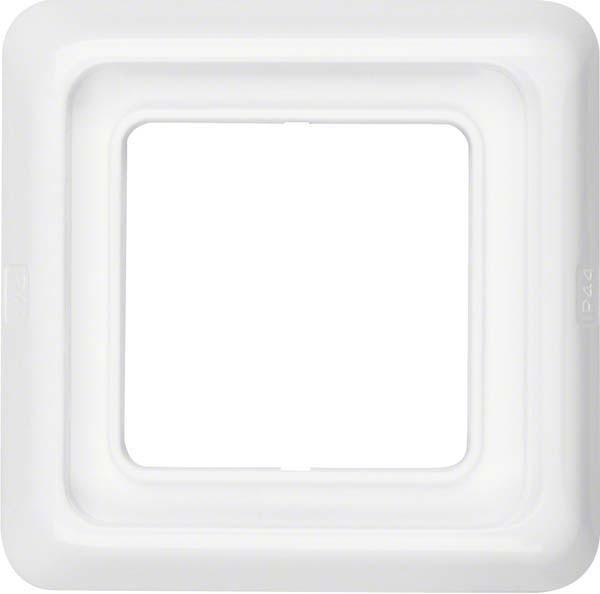

Berker Frame 1f.pws/gl 132809

Manufacturer: Berker
Description: Frame 1f.pws/gl with seal IP44
Type: 132809
Number of units: 1
Mounting direction: horizontal and vertical
Number of units horizontal: 1
Number of units vertical: 1
With mounting frame: no
Flush-mounted installation: yes
Suitable for flush floor box: no
Suitable for device installation channel: yes
Suitable for built-in installation: yes
Text field/labeling area: no
Material: Plastic
Material quality: Thermoplastic
Halogen-free: yes
Antibacterial treatment: no
Surface protection: untreated
Surface finish: glossy
Color: polar white
RAL number (similar): 9010
Transparent: no
With flap cover: no
Protection class (IP): IP44
Impact resistance: IK02
Mounting type: clamp mounting
Width: 85 mm
Height: 85 mm
Depth: 12 mm
Installation width: 65 mm
Installation height: 65 mm
Diameter of hole (opening): 0 mm

Berker Frame 1f.pws/gl 132809: additional details
Single frame with seal for flush-mounted IP44 polar white, glossy. Cover frame with seal for vertical and horizontal mounting. For use with white central pieces. To be used only in conjunction with sealing flange. Flush-mounted installation, damp room program, single. Material: Plastic, thermoplastic, shatterproof, halogen-free.
