Berker frame pows/gl 10112089
Manufacturer: Berker
Designation: Frame pows/gl 1gang, round
Type: 10112089
Number of units: 1
Mounting direction: horizontal and vertical
Number of units horizontal: 1
Number of units vertical: 1
Number of switch inserts: 1
Flush mounting: yes
Suitable for underfloor trunking: no
Suitable for device installation trunking: yes
Suitable for recessed installation: yes
Text field/inscription area: no
Material: plastic
Material grade: thermoplastic
Halogen-free: yes
Antibacterial treatment: no
Surface protection: untreated
Surface finish: glossy
Color: white
RAL number (similar): 9010
Transparent: no
With hinged cover: no
Protection class (IP): IP20
Mounting type: clamp mounting
Width: 80.7 mm
Height: 80.7 mm
Depth: 9.9 mm
Installation width: 0 mm
Installation height: 0 mm
Diameter hole (opening): 54 mm

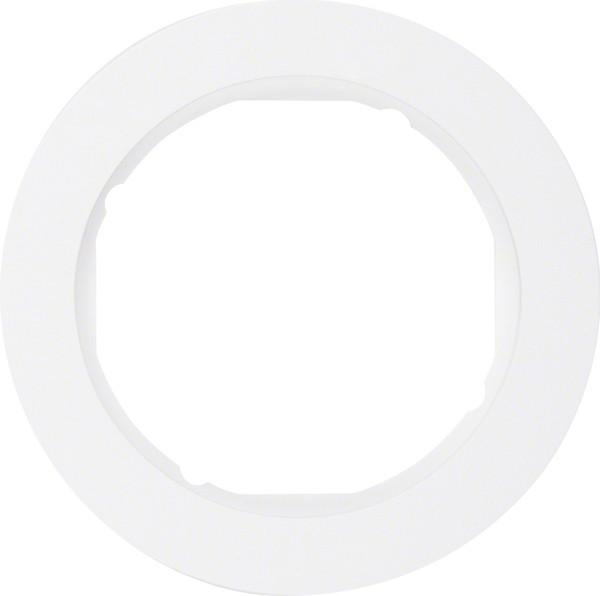

Frame 1gang Serie R. Classic polar white, glossy. Cover frame for vertical and horizontal mounting, 80.7 mm diameter. For use with polar white center plates. Flush-mounted installation, surface/design range, 1-gang. Material: plastic, thermoplastic, unbreakable, halogen-free.
