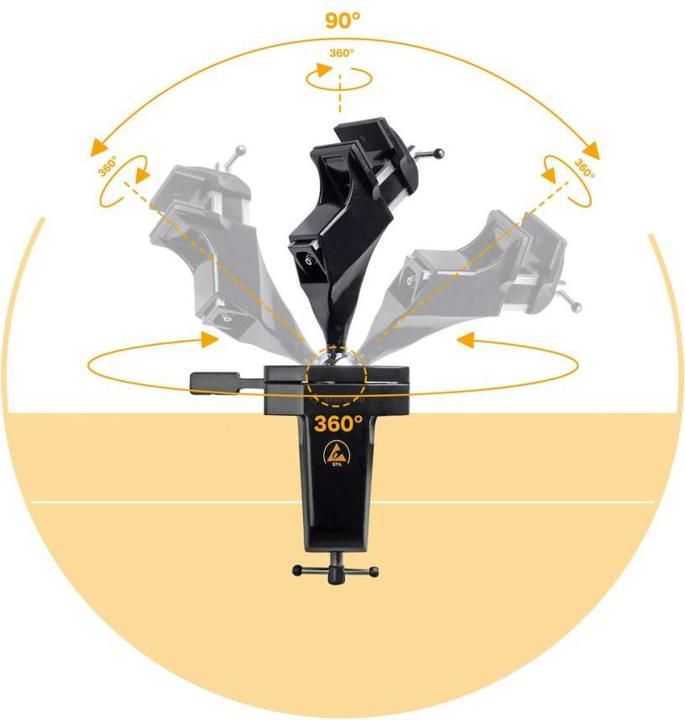

A small lever press is sufficient to align the clamped workpiece steplessly in any practical working position. The individual adjustment of the working height provides an ergonomic posture for standing work, such as drilling, sawing, grinding, milling, and cutting. The interchangeable jaws of the ball joint vises feature 50 mm plastic jaws for the small vise and 100 mm steel jaws for the large vise. We offer protective jaws for clamping sensitive workpieces in felt, leather, cork, and rubber coverings. Protective jaws with aluminum prisms are suitable for clamping round pipes, and all protective jaws are available in jaw widths from 50 to 150 mm. The vise mounting for clamping is suitable for workbenches with a maximum tabletop thickness of up to 80 mm. The vise mounting for screwing can be connected to workbenches, tables, and base plates via the four 9 mm through holes. The high-performance magnets offer individual attachment that can be quickly changed.

Maximum torque: Ball diameter 40 mm approx. 24 Nm, ball diameter 60 mm approx. 100 Nm. Clamping foot: Maximum tabletop thickness 80 mm. ESD versions: Discharge value 10^7 and 10^8 Ohm, suitable for EPA. For work in electrostatically protected areas (ESD workplace/ESD protection zone). The feet can be connected to the grounding point with a 10 mm push button. Aluminum cast parts are powder-coated, steel parts are chrome-plated and rust-resistant. The adjusting screw at the lower seat of the ball allows the ball's mobility to be set from loose to very tight. Please note that for safety-relevant parts, we cannot guarantee holding forces without knowing your specific application. The ball may behave differently under various physical conditions than in our test laboratory under optimal testing conditions.
