Dimension: 1100 x 750 mm
Material: Steel / enamel
Minimum build-up height from 35 mm (only possible with embedded drain)
In combination with drain set B573, body height from 70 mm
In combination with drain set B574, body height from 110 mm
In combination with drain set B597, body height from 98 mm
In combination with drain set B598, body height from 118 mm
Low noise exposure, only 17 dB according to DIN 4109 and VDI 4100
Trust elements pre-assembled at the factory
Suitable for mounting on screed, tile, or wooden floor; commercially available mounting adhesive is recommended, no construction foam or silicone.
For further dimensions, see the PDF file at the dimension sheet.

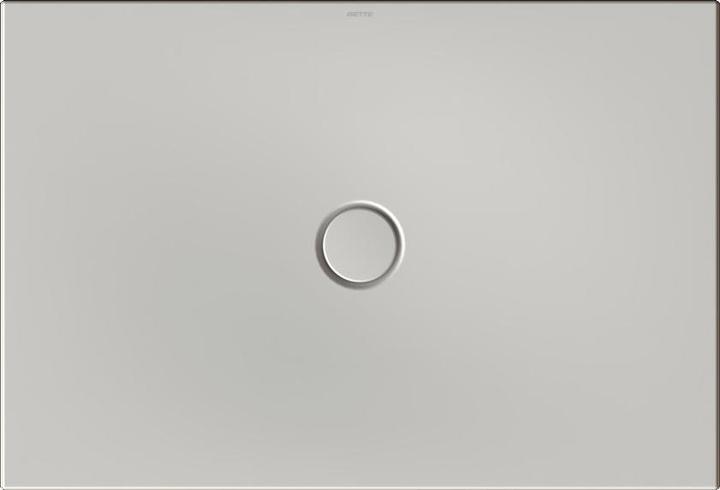

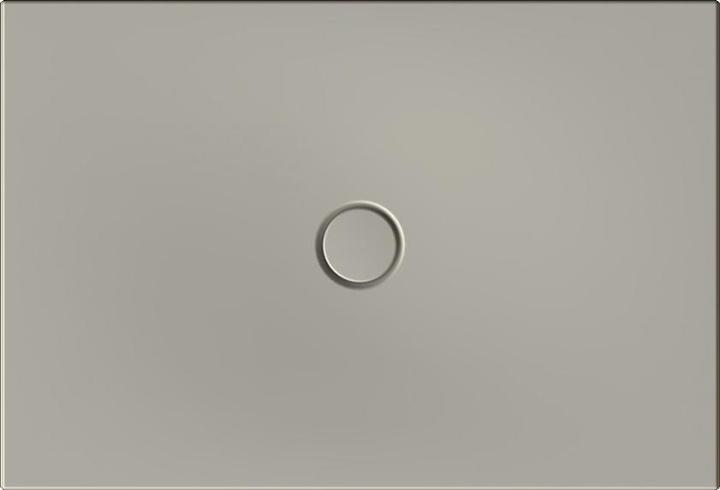

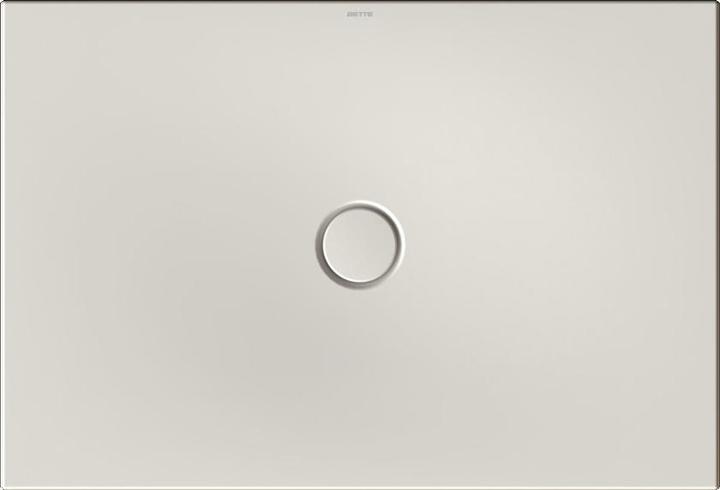

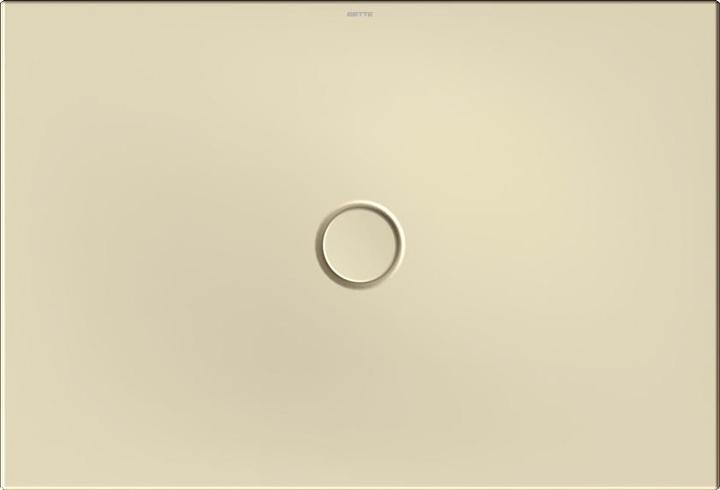

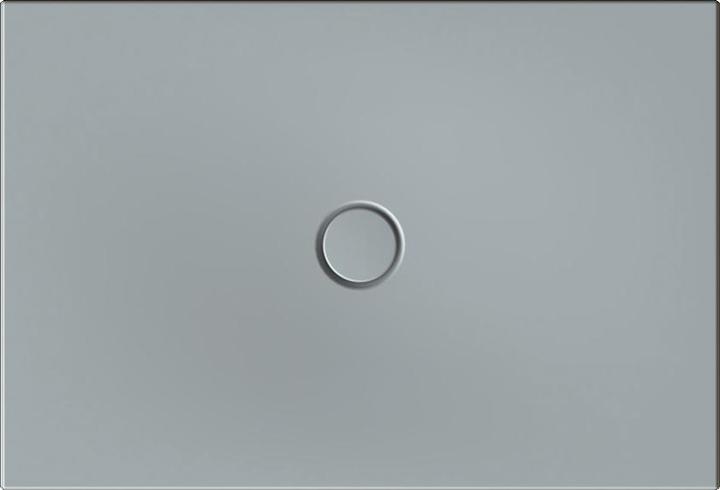

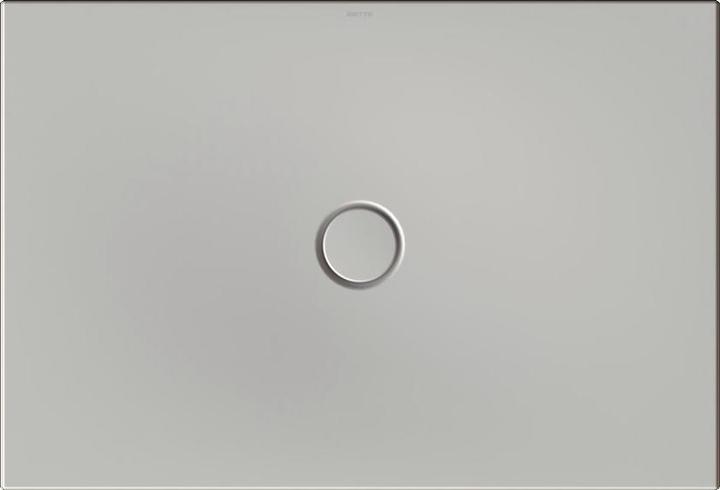

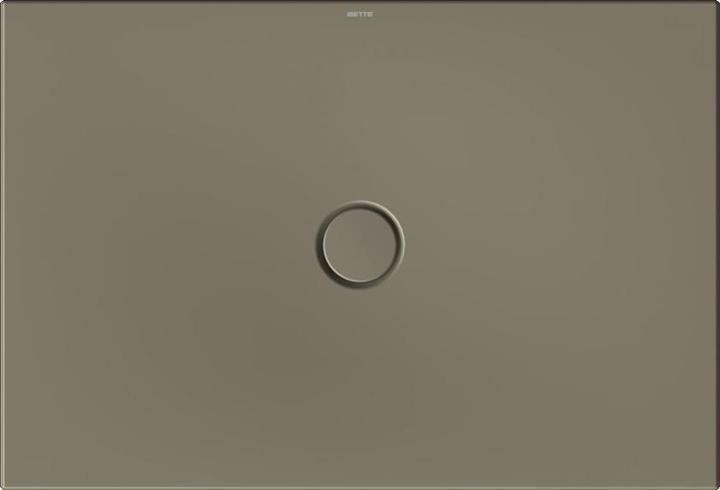

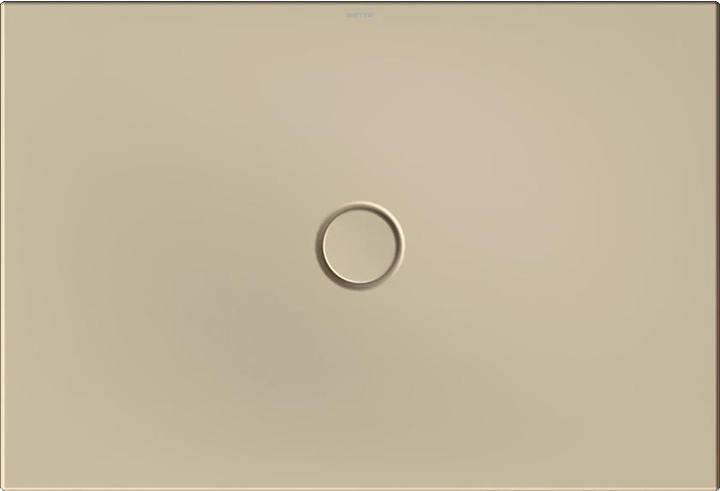

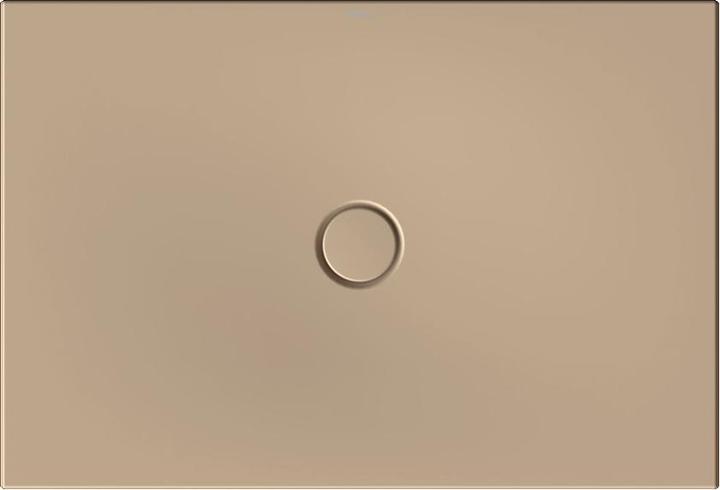

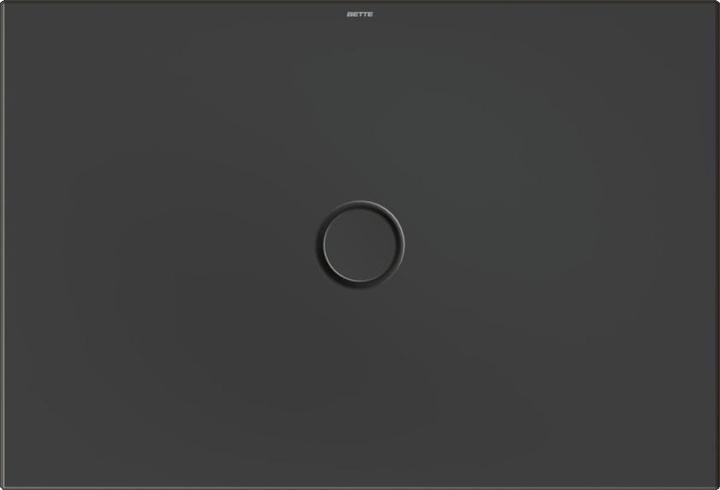

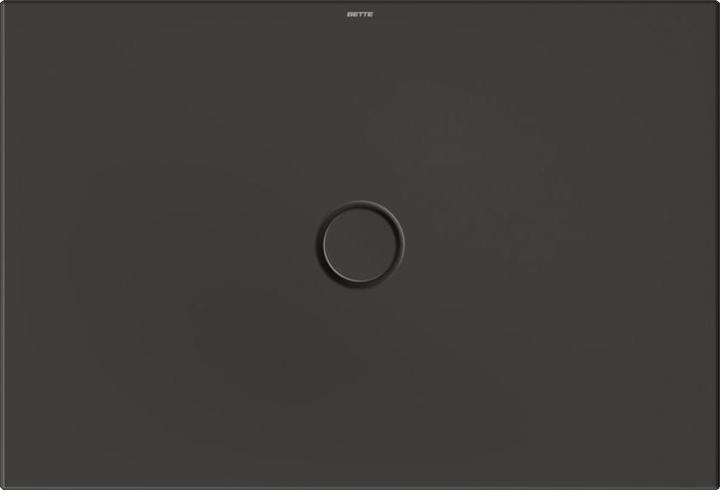

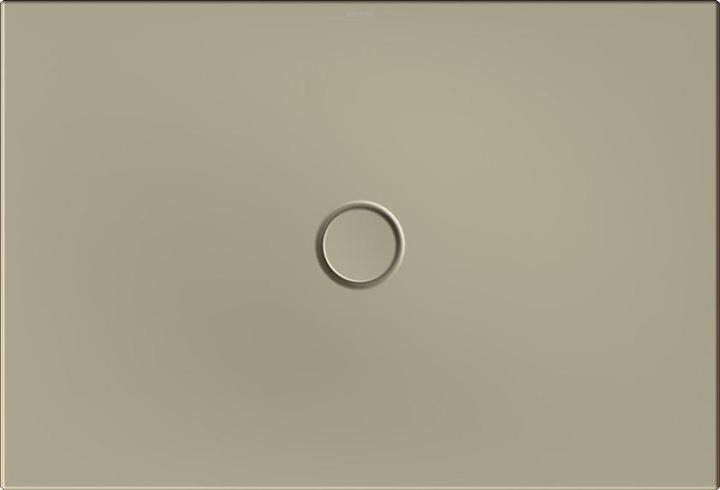

Colors available; see more pictures.
