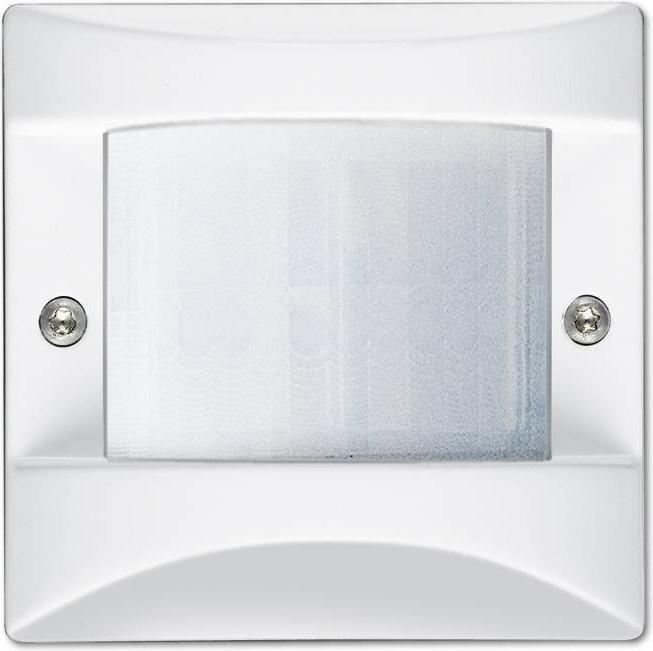

For automatic switching of loads depending on movement and brightness. Suitable for outdoor use and designed for detection down to the ground. Compatible with Busch-Universal relay insert 6401 U-102. IP 44 rating is applicable only in conjunction with Allwetter 44® frame. Monitoring density includes 40 sectors with 160 switching segments. The switch-off delay is adjustable from 10 seconds to 30 minutes, or a short time pulse of 1 second. Features screw fixing.

Main features:

• Security Type: Wired
• Distance detection: 15 m
• Weight & dimensions: Width 70 mm, Depth 29 mm, Height 70 mm
• Operating conditions: Temperature range in operation 25 - 55 °C
• Technical details: Mounting type: Wall
• Placement: Indoor, outdoor
• Protection class (IP code): IP44
• Light sensitivity: 5 Lux
• Installation height (min): 0.8 m
• Installation height (max): 2.5 m
• Detection angle: 180°
• Waterproof: Yes

Packaging information:

• Operating instructions: Yes
• Certificates: CE, ROHS
• Product color: White.
