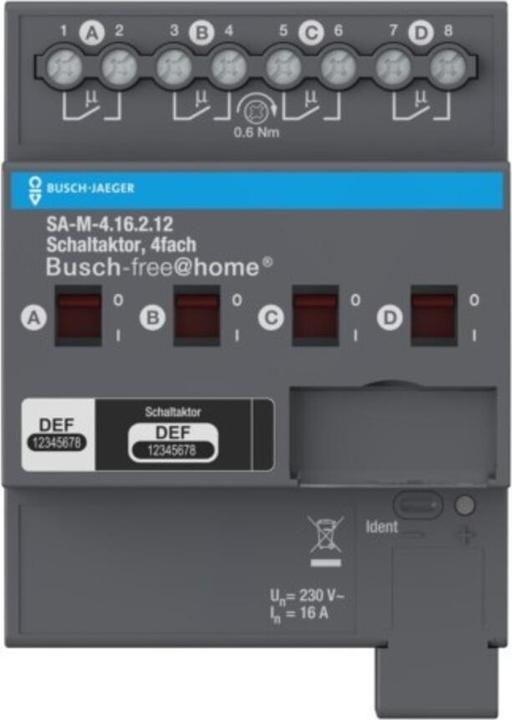

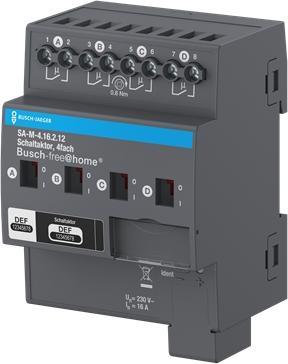

Busch-Jaeger Switching Actuator, 4-fold 16 A SA-M-4.16.2.12

Manufacturer: Busch-Jaeger
Description: Switching actuator, 4-fold 16 A REG
Type: SA-M-4.16.2.12
KNX Bus System: no
KNX Radio Bus System: no
Radio Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: others
Mounting Type: REG
Width in Division Units: 4
With LED Display: yes
Max. Switching Power: 2500 W
Output Power: 2500 W
Suitable for C-load: no
Max. Number of Switching Outputs: 4
Max. Switching Current: 16 A
Rated Current: 16 A
Rated Operating Voltage: 230 V
Various Phases Connectable: yes
With Bus Coupling: no
Bus Module Removable: no
Min. Depth of Device Box: 63.5 mm
Modular Expansion Option: no
Protection Class (IP): IP20

The switching actuator is 4-fold for Busch-free@home® and switches electrical consumers via Busch-free@home® with 4 independent potential-free contacts. Manual operation of the contact is possible for each output. The switching state of the contact is displayed. The 16A standard series is suitable for switching resistive loads (AC1).
