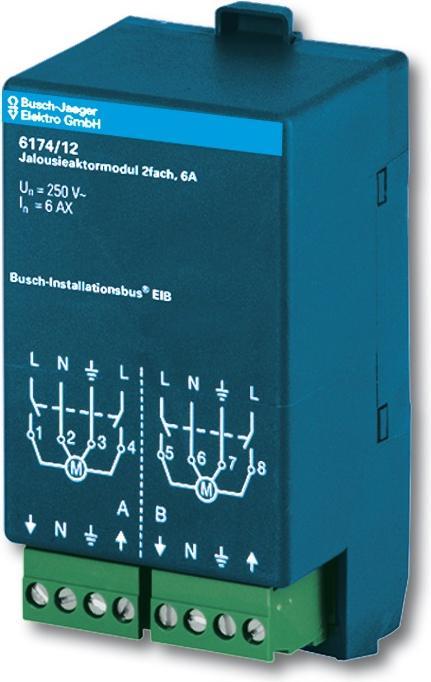

Busch-Jaeger Shutter Actuator Module 6174/12

Manufacturer: Busch-Jaeger
Designation: 2-fold Shutter Actuator Module
Type: 6174/12
Bus System KNX: Yes
Bus System KNX Wireless: No
Bus System Wireless Bus: No
Bus System LON: No
Bus System Powernet: No
Other Bus Systems: Other
Bidirectional Wireless: No
Mounting Type: Other
With Bus Coupling: No
Bus Module Removable: No
On-Site/Manual Operation: No
With LED Display: No
Number of Inputs: 2
Switching Current Resistive: 6 A
Max. Switching Power: 1380 W
Max. Number of Shutter Outputs: 2
Switching Function: No
Power Type: AC
Protection Class (IP): IP20

Additional Details: 2-fold shutter actuator module for controlling two independent shutter groups. Usage and connection are exclusively done via the room controller. If needed, please consult the current online catalog for software and description. EAN: 4011395057346.
